74941 CP (6000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FX801V-AS04 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

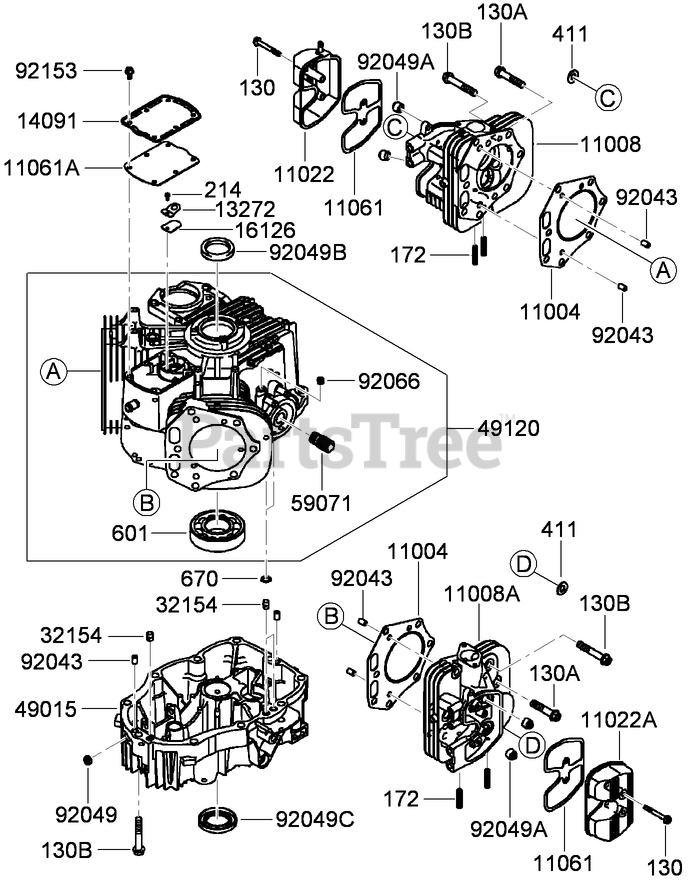

CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FX801V-AS04 Parts Diagram

  • Title

130

Toro 130AA0650

BOLT-FLANGED (6X50)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

130A

Kawasaki 130CA1050

BOLT-FLANGED (10X50)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 5

0

130B

Kawasaki 130CA1060

BOLT-FLANGED (10X60)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, only 1 left!

0

172

Kawasaki 172BA0818

BOLT-STUD (8X18)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, only 3 left!

0

214

Kawasaki 214AA0408

SCREW-PAN +-(4X8)
(Superseded to 214B0408)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 5

0

411

Kawasaki 411AA1000

WASHER-PLAIN (10MM)
(Superseded to 92200-1095)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 4 left!

0

601

Kawasaki 601A6308

BEARING-BALL
(Superseded to 92045-0712)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

670

Kawasaki 670B2011

O-Ring (11MM)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 20+

0

11004

Kawasaki 11004-7025

GASKET-HEAD

Note: Obtain parts from www.kawpowerepc.com

$50.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-7036

HEAD-CYLINDER, No.1
(Superseded to 11008-0893)

Note: Obtain parts from www.kawpowerepc.com

$232.99

$

Usually ships in 2-5 days

0

11008A

Kawasaki 11008-7037

HEAD-CYLINDER, No.2
(Superseded to 11008-0899)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

11022

Kawasaki 11022-6007

CASE-ROCKER, No.1
(Superseded to 11022-6008)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

11022A

Kawasaki 11022-7016

CASE-ROCKER, No.2
(Superseded to 11022-7025)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

11061

Kawasaki 11061-7080

GASKET-CASE, ROCKER
(Superseded to 11061-0899)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 11

0

11061A

Kawasaki 11061-7081

GASKET-BREATHER

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-7004

PLATE-BREATHER
(Superseded to 132721374)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 7

0

14091

Kawasaki 14091-7060

COVER-BREATHER

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, only 1 left!

0

16126

Kawasaki 16126-7020

VALVE-BREATHER

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 5

0

32154

Kawasaki 32154-7019

PIPE
(Superseded to 920430858)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

49015

Kawasaki 49015-7088

COVER-CRANKCASE
(Superseded to 49015-0046)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

49120

Toro 49120-7117

CRANKCASE

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

59071

Kawasaki 59071-2079

Joint

Note: Obtain parts from www.kawpowerepc.com

$6.49

$

In Stock, Qty 8

0

92043

Kawasaki 92043-7024

PIN
(Superseded to 92043-1263)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 5

0

92049

Kawasaki 92049-7005

SEAL-OIL, S O (8X14X5 H S)
(Superseded to 920497019)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 92049-7020

SEAL-OIL (7X15X13)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 14

0

92049B

Kawasaki 92049-7024

SEAL-OIL, S D (40X54X9 R HS)

Note: Obtain parts from www.kawpowerepc.com

$6.49

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7026

SEAL-OIL, S D (40X62X8 L VS)

Note: Obtain parts from www.kawpowerepc.com

$8.99

$

In Stock, only 4 left!

0

92066

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 6

0

92153

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available
