74934 (5000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 401000000 - 999999999) Main Frame Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

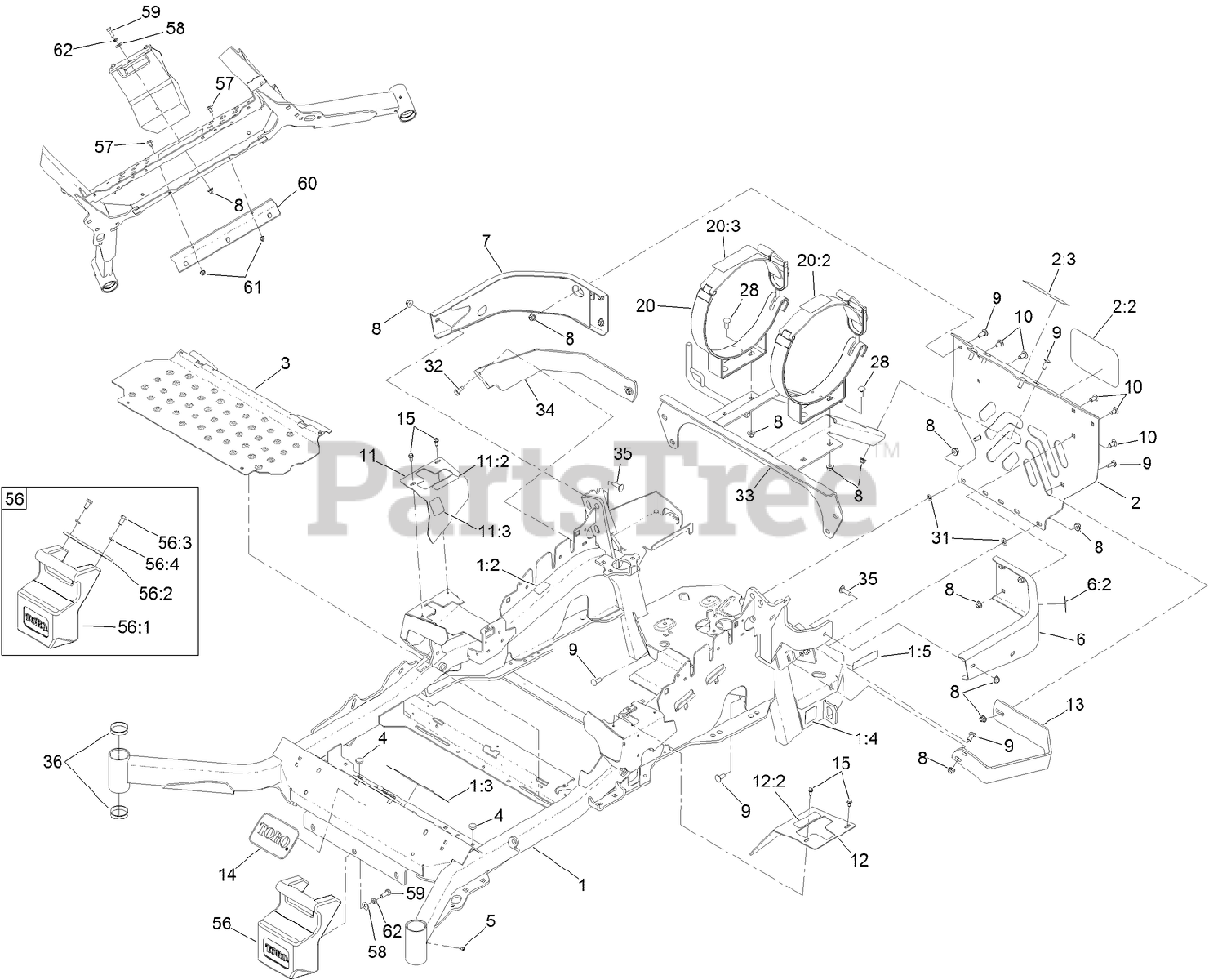

Main Frame Assembly Parts Diagram

  • Title

1

Toro 116-5904

MAINFRAME ASM
(Superseded to 142-7266)

$2392.99

$

Usually ships in 3-6 days

0

1:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

1:3

Toro 132-0871

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

1:4

Toro 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

Usually ships in 3-6 days

0

1:5

Toro 116-4858

DECAL-SPARK ARRESTER

$3.49

$

Usually ships in 3-6 days

0

2

Toro 127-0306

LPG REAR GUARD ASM

$230.99

$

Usually ships in 3-6 days

0

2:2

Toro 67-7320

DECAL

$35.99

$

In Stock, only 2 left!

0

2:3

Toro 126-3277

DECAL-LPG FUEL TANK REPLACEMENT

$7.49

$

Usually ships in 3-6 days

0

3

Toro 116-8898-01

FLOORPAN

$106.99

$

Usually ships in 3-6 days

0

4

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

5

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

6

Toro 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

6:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

7

Toro 116-0057-03

BUMPER-RH

$213.99

$

In Stock, only 1 left!

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

11

Toro 116-5899

RH MOTION CONTROL COVER ASM

$47.99

$

Usually ships in 3-6 days

0

11:2

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

In Stock, only 2 left!

0

11:3

Toro 116-5988

DECAL-PARK BRAKE, CE

$13.99

$

In Stock, only 1 left!

0

12

Toro 116-0580

LH MOTION CONTROL COVER ASM

$27.99

$

Usually ships in 3-6 days

0

12:2

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

In Stock, only 2 left!

0

13

Toro 126-2067-03

GUARD-MUFFLER

$58.99

$

Usually ships in 3-6 days

0

14

Toro 68-3640

DECAL

$20.99

$

In Stock, only 2 left!

0

15

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

20

Toro 116-2817

TANK BRACKET ASM (SET)

$330.99

$

Usually ships in 3-6 days

0

20:2

Toro 126-3275

DECAL-LPG WARNING

$9.99

$

Usually ships in 3-6 days

0

20:3

Toro 126-4553

DECAL-LPG TANK SPEC

$8.49

$

Usually ships in 3-6 days

0

28

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

31

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 9

0

32

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 116-3558-03

SUPPORT-TANK

$238.99

$

Usually ships in 3-6 days

0

34

Toro 116-1432-03

STRAP-GUARD

$84.99

$

Usually ships in 3-6 days

0

35

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

36

Toro 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 16

0

56

WEIGHT ASM

Note: Not serviced separately

$

$

Not available

56:1

Toro 120-7881

WEIGHT-43 LB

$793.99

$

Usually ships in 3-6 days

0

56:2

Toro 115-3616-01

TAB-SUPPORT, WEIGHT

$30.99

$

Usually ships in 3-6 days

0

56:3

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

56:4

Toro 325-35

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

57

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

58

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

59

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

60

Toro 115-3615-01

BRACKET-MOUNT, WEIGHT

$46.99

$

Usually ships in 3-6 days

0

61

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

62

Toro 325-35

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0
