74933 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 401000000 - 999999999) SEAT MOUNT ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

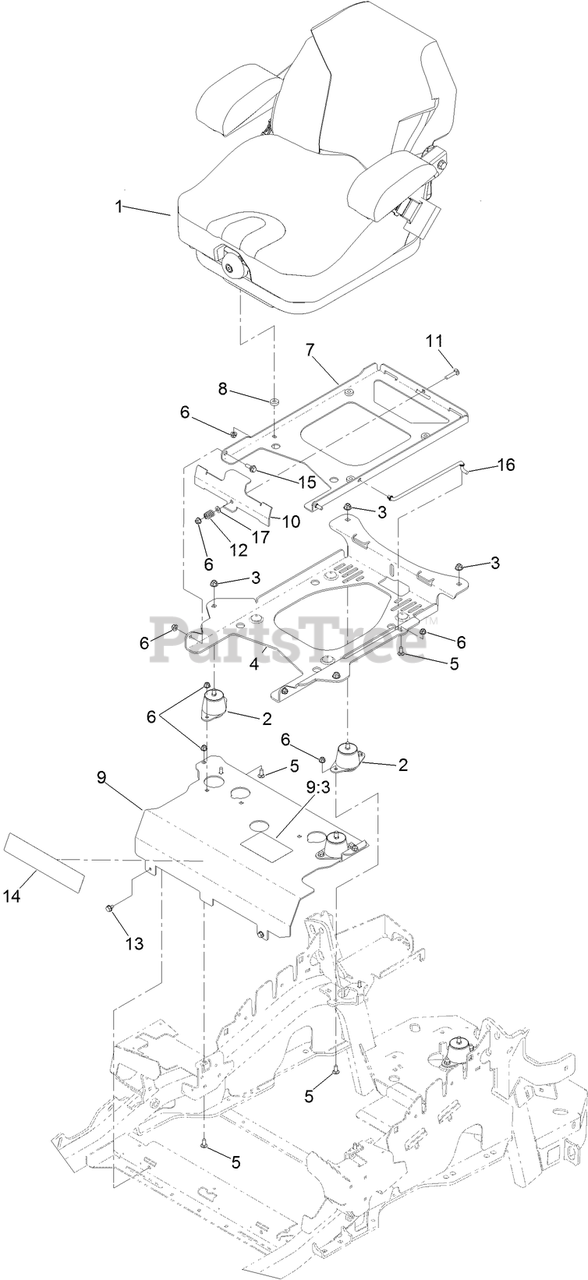

SEAT MOUNT ASSEMBLY Parts Diagram

  • Title

1

Toro 125-3107

SUSPENSION SEAT ASM
(Superseded to 121-7595)

$1061.99

$

Usually ships in 3-6 days

0

2

Toro 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 116-3860-03

PLATE-TILT, SEAT SUPPORT

$190.99

$

Usually ships in 3-6 days

0

5

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Toro 116-3859-03

PLATE-FRAME, SEAT

$126.99

$

Usually ships in 3-6 days

0

8

Toro 26-4840

SPACER-PIN, MOUNTING

$6.49

$

Usually ships in 3-6 days

0

9

Toro 127-0320

SEAT MOUNT ASM

$389.99

$

Usually ships in 3-6 days

0

9:3

Toro 125-9383

DECAL-SERVICE AID

$26.99

$

Usually ships in 3-6 days

0

10

Toro 109-9881-03

PLATE-LATCH, SEAT

$19.99

$

Usually ships in 3-6 days

0

11

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

12

Toro 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

13

Toro 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

14

Toro 119-2507

DECAL
(Superseded to 140-1215)

$9.99

$

In Stock, only 1 left!

0

15

Toro 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

16

Toro 116-0070

ROD-PROP

$21.99

$

Usually ships in 3-6 days

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
