74930 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 400000000 - 402089999) FUEL SYSTEM ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

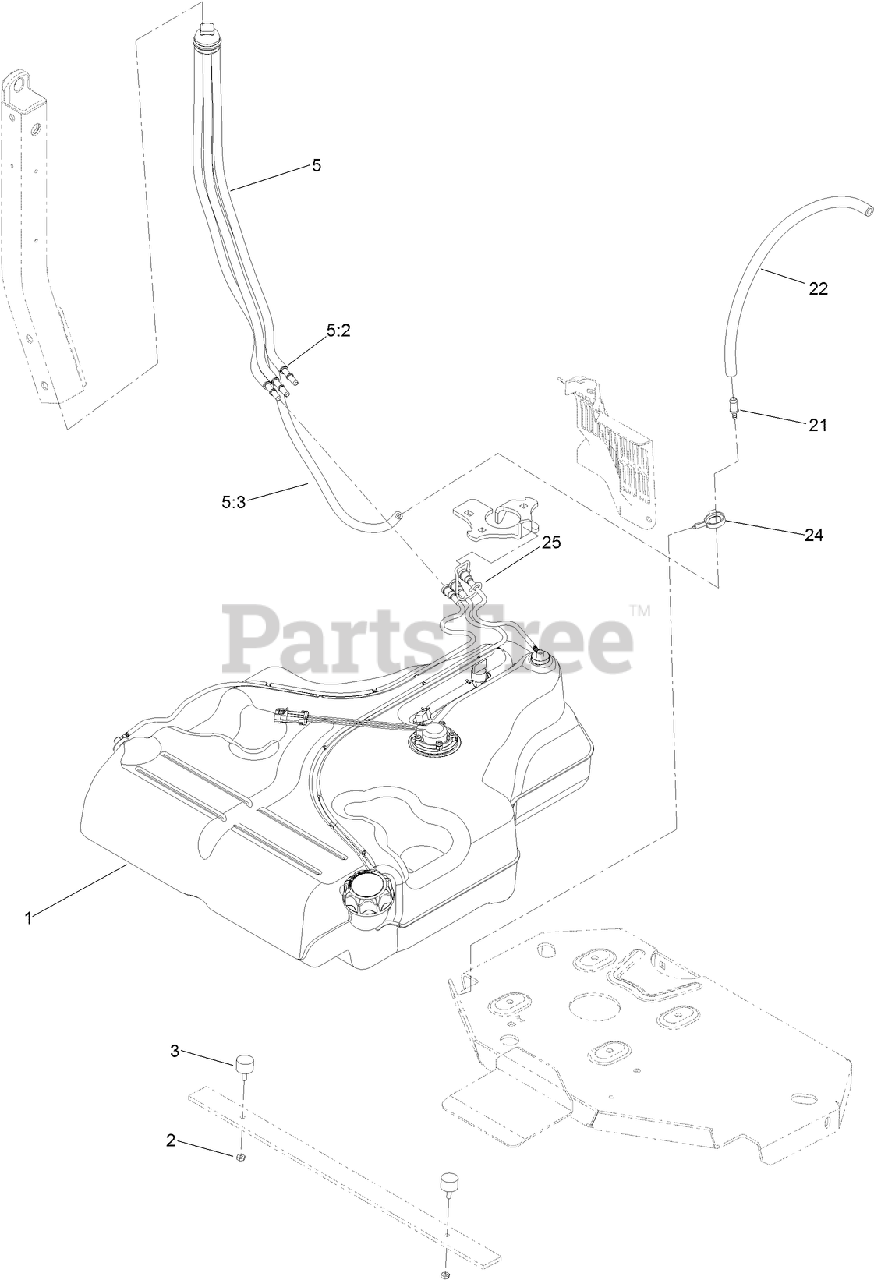

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 126-6494

FUEL TANK ASM
(Superseded to 135-0643)

$702.99

$

Usually ships in 3-6 days

0

2

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Toro 116-6380

BUMPER-RUBBER (W/ STUD)
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

5

Toro 127-0583

FUEL MANIFOLD VENT ASM

$70.99

$

Usually ships in 3-6 days

0

5:2

Toro 109-0302

HOSE-FUEL

$12.99

$

In Stock, Qty 5

0

5:3

Toro 108-5376

HOSE-FUEL

$43.99

$

In Stock, only 1 left!

0

21

Toro 98-2952

FITTING-STRAIGHT

$9.99

$

In Stock, only 1 left!

0

22

Toro 116-5087

HOSE-FUEL

$19.99

$

Usually ships in 3-6 days

0

24

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

25

Toro 116-6005

RETAINER-LINE, VAPOR

$5.49

$

Usually ships in 3-6 days

0
