74930 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 400000000 - 402089999) ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

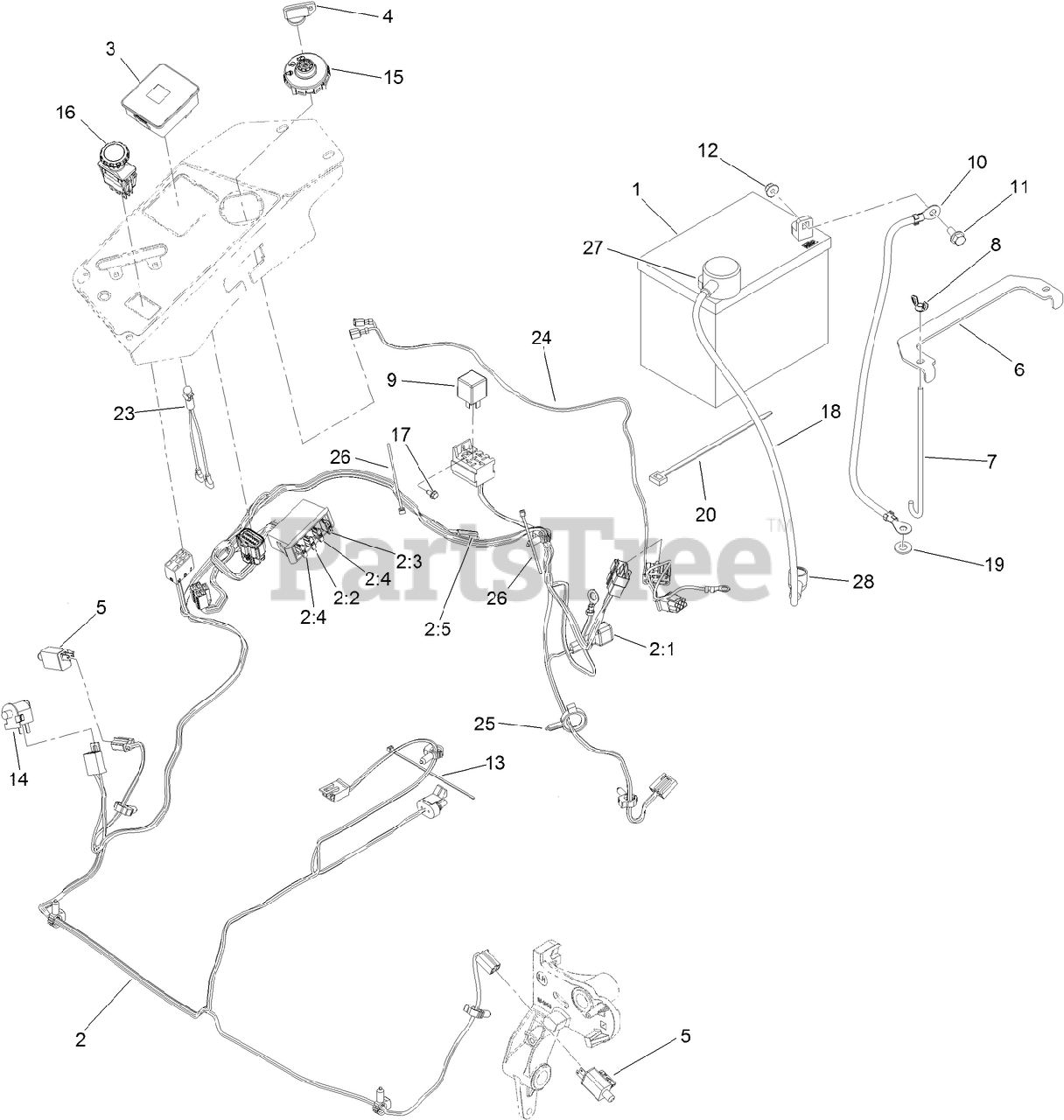

ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 104-8162

BATTERY-DRY

$

$

Not available

2

Toro 116-6009

HARNESS-WIRE, MAIN

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$258.99

$

In Stock, only 2 left!

0

2:1

$64.99

$

In Stock, only 4 left!

0

2:2

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

2:3

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

2:4

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

2:5

Toro 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

3

Toro 117-3882

FUEL/HOUR METER ASM

$157.99

$

In Stock, Qty 10

0

4

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

5

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 7

0

6

Toro 116-0042-03

STRAP-TIE DOWN, BATTERY

$22.99

$

In Stock, only 2 left!

0

7

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 9

0

8

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

9

$23.99

$

In Stock, Qty 5

0

10

Toro 114-1218

CABLE-BATTERY, NEGATIVE

$23.99

$

In Stock, only 1 left!

0

11

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

13

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

14

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 8

0

15

Toro 117-2221

SWITCH-IGNITION
(Superseded to 137-4100)

$35.99

$

In Stock, Qty 19

0

16

Toro 116-0124

SWITCH-PTO, 10 AMP
(Superseded to 135-3653)

$68.99

$

In Stock, Qty 8

0

17

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

18

Toro 115-3864

CABLE-BATTERY, POSITIVE

$30.99

$

Usually ships in 3-6 days

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

20

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

23

Toro 1-643267

INDICATOR-LED, RED

$25.99

$

In Stock, only 1 left!

0

24

Toro 116-3062

HARNESS-LIGHT, INDICATOR

$80.99

$

In Stock, only 2 left!

0

25

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

26

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

27

Toro 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

28

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0
