74927 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) STARTER ASSEMBLY KAWASAKI FX801V-AS04 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

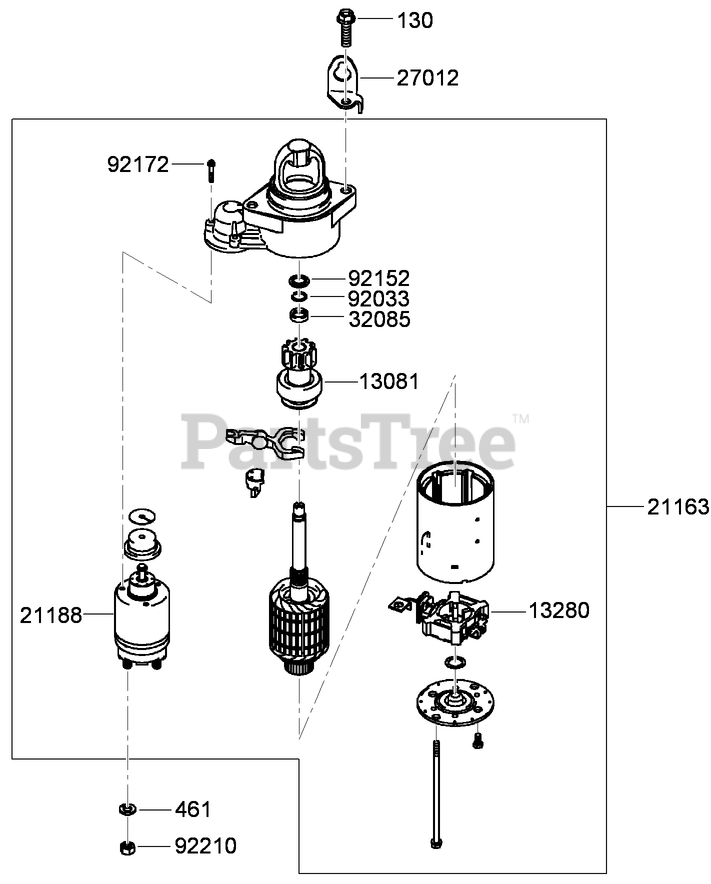

STARTER ASSEMBLY KAWASAKI FX801V-AS04 Parts Diagram

  • Title
130

Kawasaki 130AA0830

BOLT-FLANGED (8X30)
(Superseded to 130B0830)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 1 left!

0

461

Kawasaki 461DA0800

WASHER-SPRING (8MM)
(Superseded to 92200-0918)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

13081

Kawasaki 13081-7001

CLUTCH ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

13280

Toro 13280-7002

HOLDER

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

21163

Toro 21163-7021

STARTER-ELECTRIC

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

21188

Toro 21188-7005

SOLENOID

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

27012

Kawasaki 27012-7005

HOOK-LIFT

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

Usually ships in 2-5 days

0

32085

Kawasaki 32085-7001

STOPPER

Note: Obtain parts from www.kawpowerepc.com

$7.49

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-7014

RING-SNAP

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

Usually ships in 2-5 days

0

92152

Kawasaki 92152-7013

COLLAR

Note: Obtain parts from www.kawpowerepc.com

$8.99

$

Usually ships in 2-5 days

0

92172

Kawasaki 92172-7032

SCREW

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7027

NUT (M8)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 20+

0
