74927 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

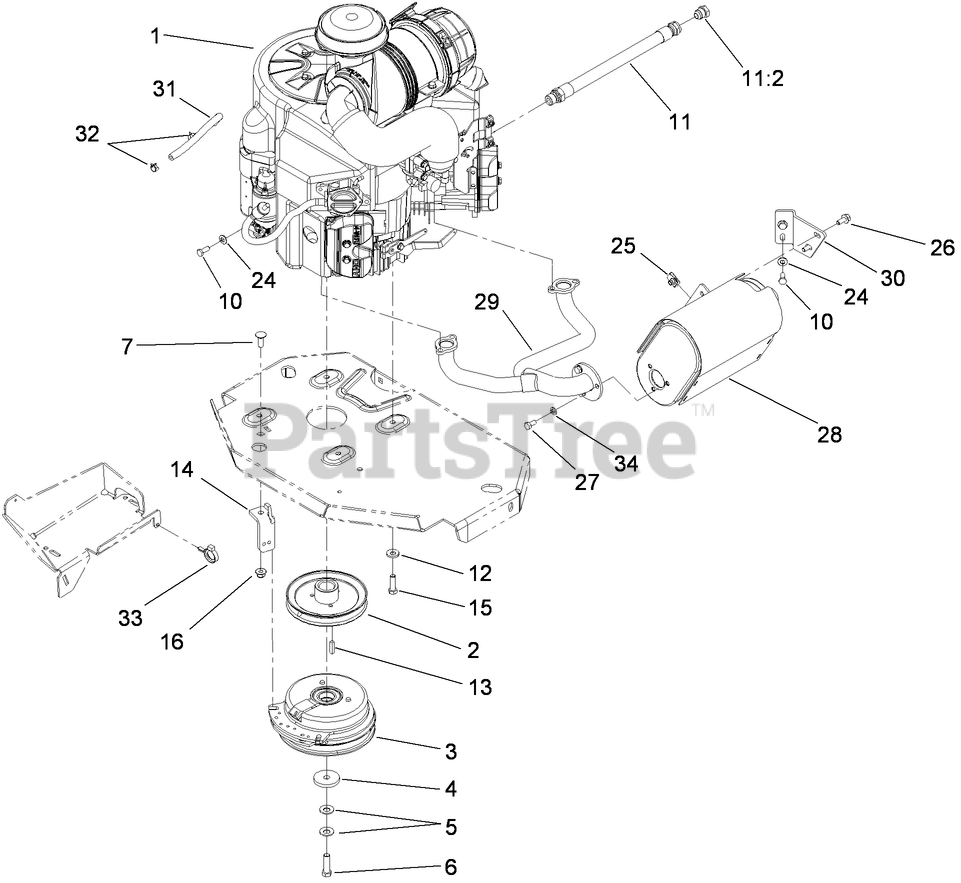

ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FX801V-AS04

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FX801V-AS04

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, only 1 left!

0

3

Toro 109-9282

CLUTCH
(Superseded to 116-1620)

$359.99

$

In Stock, only 4 left!

0

4

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 9

0

5

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

6

Toro 109-9761

SCREW-HH, W/LOCTITE

$5.49

$

In Stock, Qty 7

0

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Toro 109-4490

OIL DRAIN HOSE ASM
(Superseded to 116-4924)

$37.99

$

In Stock, Qty 5

0

11:2

Toro 109-1012

PLUG

$8.49

$

Usually ships in 3-6 days

0

12

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Toro 1-807259

KEY

$2.99

$

In Stock, only 1 left!

0

14

Toro 109-8138-01

ANCHOR-CLUTCH

$49.99

$

Usually ships in 3-6 days

0

15

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

25

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

26

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 14

0

27

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

28

Toro 109-9280

MUFFLER-ENGINE

$281.99

$

In Stock, only 1 left!

0

29

Toro 109-9250

MANIFOLD-EXHAUST
(Superseded to 135-7562)

$391.99

$

In Stock, Qty 16

0

30

Toro 116-0203

BRACKET-MUFFLER

$34.99

$

Usually ships in 3-6 days

0

31

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

32

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

33

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

34

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
