74925 TE (6000) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 403138045 - 404319999) Hydraulic Drive Assembly Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

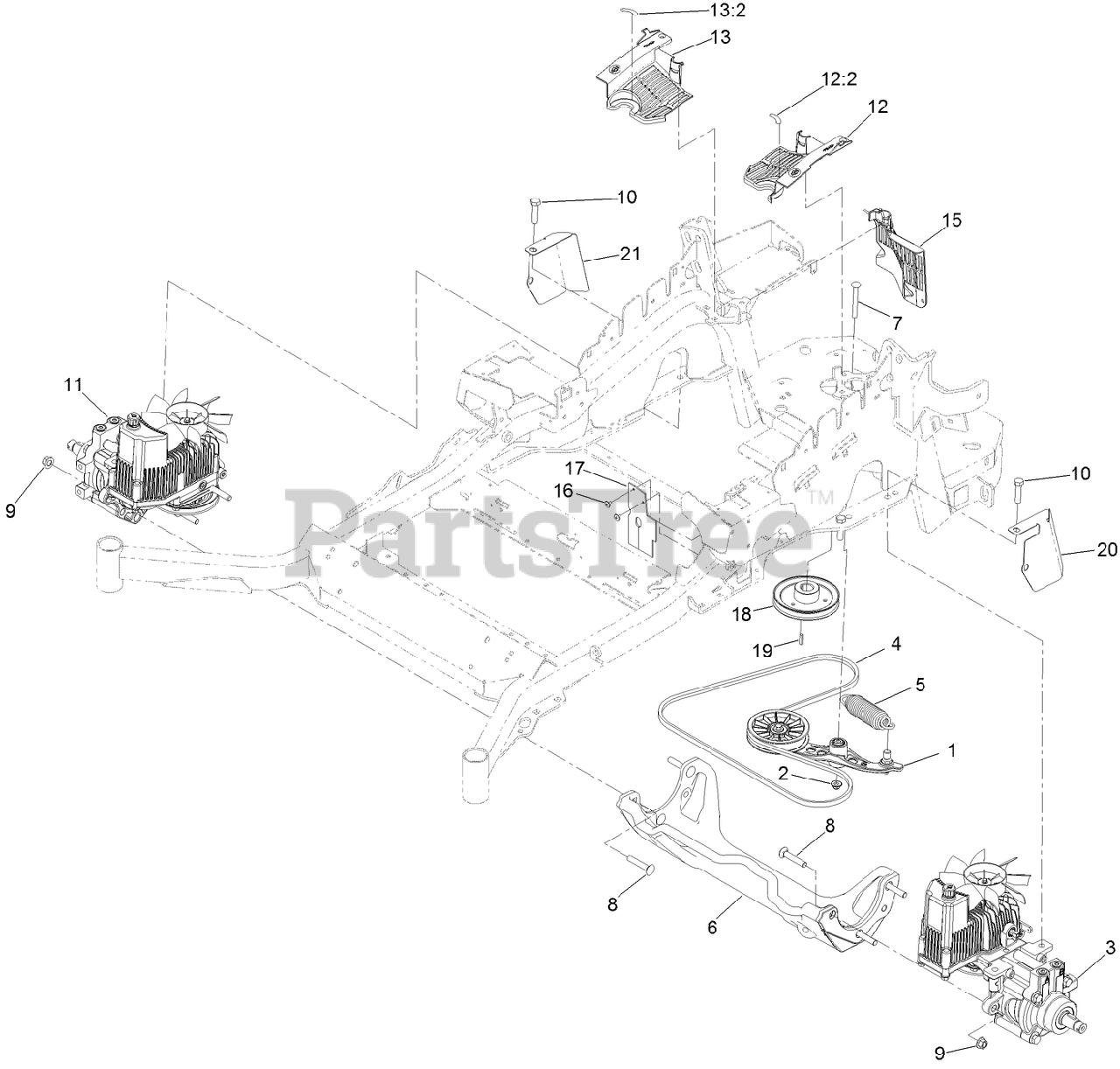

Hydraulic Drive Assembly Parts Diagram

  • Title
1

Toro 116-1255

PUMP IDLER ASM

$217.99

$

In Stock, only 4 left!

0

2

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

Usually ships in 3-6 days

0

3

Toro 126-1325

LH HYDRO ASM (16CC W/ SHOCK)
(Superseded to 135-7905)

$3534.99

$

Usually ships in 3-6 days

0

4

Toro 109-3388

BELT
(Superseded to 126-9835)

$45.99

$

In Stock, Qty 20+

0

5

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 11

0

6

Toro 116-7558

CRADLE-HYDRO

$206.99

$

Usually ships in 3-6 days

0

7

Toro 116-1502

BOLT-SHOULDER, CARRIAGE

$7.99

$

In Stock, only 4 left!

0

8

Toro 126-0095

SCREW-CARR

$2.99

$

In Stock, only 2 left!

0

9

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

11

Toro 126-1326

RH HYDRO ASM (16CC W/ SHOCK)
(Superseded to 135-7906)

$3534.99

$

Usually ships in 3-6 days

0

12

Toro 116-0170

LH HYDRO GUARD ASM

$85.99

$

In Stock, only 3 left!

0

12:2

Toro 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

13

Toro 116-0171

RH HYDRO GUARD ASM

$85.99

$

Usually ships in 3-6 days

0

13:2

Toro 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

15

Toro 109-9058

GUARD-HYDRO, REAR (RH)

$25.99

$

In Stock, only 4 left!

0

16

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

17

Toro 116-2362

DEFLECTOR-AIR FLOW

$6.49

$

Usually ships in 3-6 days

0

18

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, only 1 left!

0

19

$2.99

$

In Stock, only 1 left!

0

20

Toro 131-7651-03

GUARD, LH REAR [BLACK]

$68.99

$

Usually ships in 3-6 days

0

21

Toro 131-7650-03

GUARD, RH REAR [BLACK]

$68.99

$

Usually ships in 3-6 days

0

99

Toro 114-4713

HYPR-OIL 500 (QUART)

Note: Not illustrated

$16.99

$

In Stock, Qty 8

0

99

Toro 114-4714

HYPR-OIL 500 (GALLON)

Note: Not illustrated

$60.99

$

In Stock, Qty 6

0

99

Toro 114-4715

HYPR-OIL 500-5 (5 GALLON)

Note: Not illustrated

$313.99

$

Usually ships in 3-6 days

0

99

Toro 117-0390

FILTER-HYDRO

Note: Not illustrated

$56.99

$

In Stock, only 3 left!

0
