74925 TE (6000) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 400000000 - 401799999) DECK ASSEMBLY Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

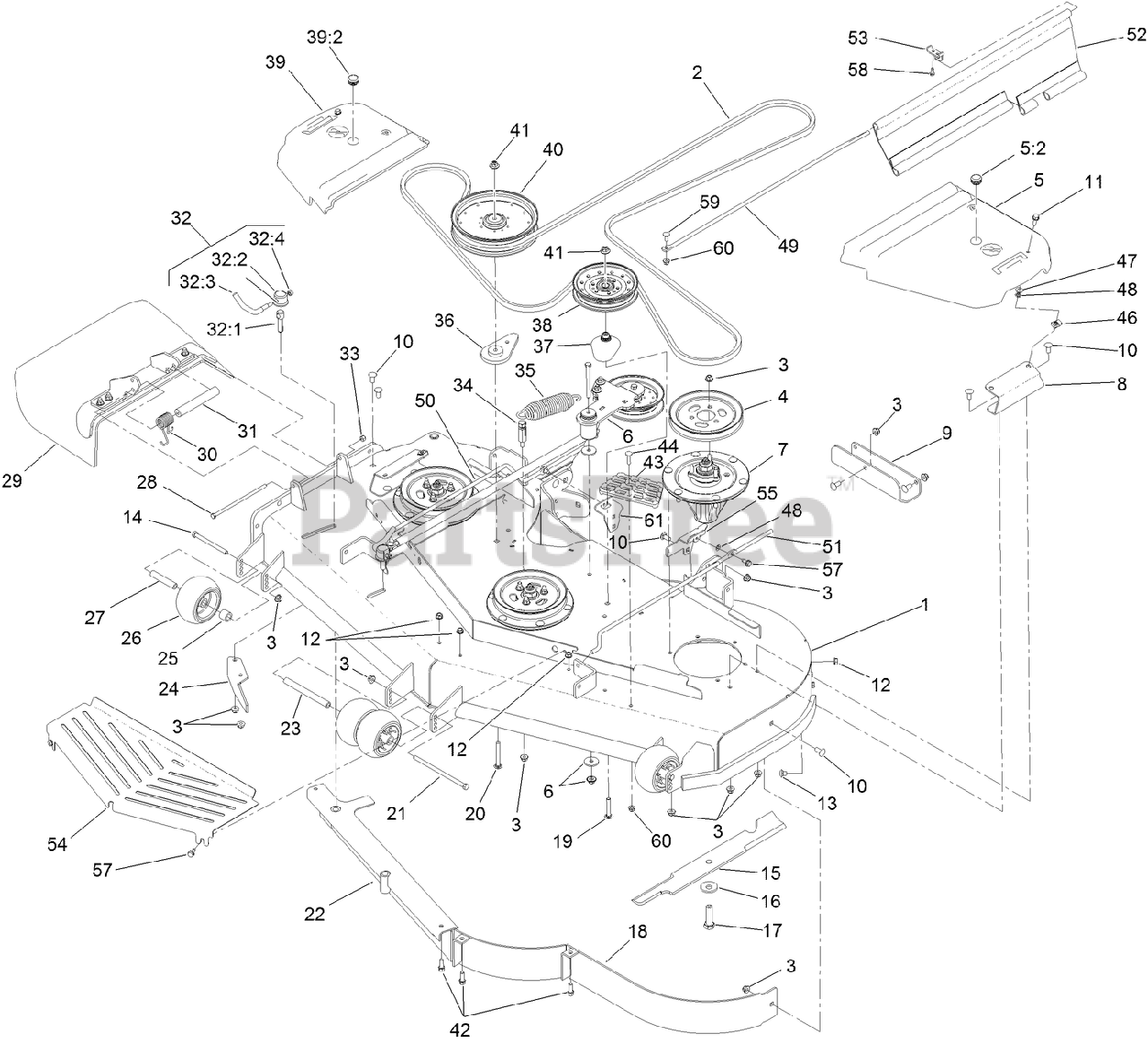

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 131-7683

DECK DECAL ASM

$2645.99

$

Usually ships in 3-6 days

0

2

Toro 114-5858

BELT-V

$159.99

$

In Stock, only 1 left!

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 105-7734

Pulley

$49.99

$

In Stock, Qty 9

0

5

Toro 117-7816

LH BELT COVER ASM

$90.99

$

Usually ships in 3-6 days

0

5:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

6

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

7

Toro 127-0560

SPINDLE ASM

$518.99

$

In Stock, only 2 left!

0

8

Toro 114-5882-01

BRACKET-COVER, BELT

$83.99

$

Usually ships in 3-6 days

0

9

Toro 121-8031-01

PLATE-SKID

$58.99

$

Usually ships in 3-6 days

0

10

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

11

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

12

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Toro 108-5387

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

14

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

15

Toro 105-7718-03

BLADE-HI FLOW

$25.99

$

In Stock, Qty 9

0

16

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

17

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

18

Toro 114-5842-01

BAFFLE

$216.99

$

In Stock, only 1 left!

0

19

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, only 2 left!

0

20

Toro 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

21

Toro 108-5388

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

22

Toro 127-4858-01

BAFFLE ASM

$104.99

$

Usually ships in 3-6 days

0

23

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

24

Toro 106-3216-01

BAFFLE-DISCHARGE

$25.99

$

Usually ships in 3-6 days

0

25

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

26

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

27

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

28

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

29

Toro 108-2792

RUBBER DEFLECTOR ASM

$227.99

$

In Stock, only 1 left!

0

30

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

31

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

32

Toro 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

32:1

Toro 106-3239

Screw-Lock

$52.99

$

Usually ships in 3-6 days

0

32:2

Toro 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

32:3

Toro 106-3241

Lever-Lock
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

32:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 114-5867

ANCHOR-SPRING, TALL

$14.99

$

In Stock, only 2 left!

0

35

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

36

Toro 109-9416

SPACER-IDLER

$67.99

$

In Stock, only 1 left!

0

37

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

38

Toro 136-5404

PULLEY-IDLER, FLAT

$60.99

$

In Stock, only 1 left!

0

39

Toro 117-7815

RH BELT COVER ASM

$90.99

$

Usually ships in 3-6 days

0

39:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

40

Toro 109-8590

PULLEY-IDLER

$180.99

$

In Stock, only 1 left!

0

41

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

42

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

43

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

44

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

46

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

47

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

48

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

49

Toro 131-3987

ROD-SUPPORT, UPPER

$32.99

$

Usually ships in 3-6 days

0

50

Toro 131-3990

ROD SUPPORT, RH LOWER

$94.99

$

Usually ships in 3-6 days

0

51

Toro 131-3989

ROD SUPPORT, LH LOWER

$94.99

$

Usually ships in 3-6 days

0

52

Toro 131-4009

GUARD SIDE

$21.99

$

Usually ships in 3-6 days

0

53

Toro 131-4194-03

BRACKET-MOUNTING, UPPER

$31.99

$

Usually ships in 3-6 days

0

54

Toro 131-3981-03

SHIELD-FRONT

$120.99

$

Usually ships in 3-6 days

0

55

Toro 131-4196-03

BRACKET-MOUNTING, REAR (LH)

$47.99

$

Usually ships in 3-6 days

0

57

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

58

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

59

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

60

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

61

Toro 132-0920-03

BRACKET-MOUNTING, REAR (RH)

$41.99

$

Usually ships in 3-6 days

0
