74925 TE (6000) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) SEATING MOUNTING ASSEMBLY Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

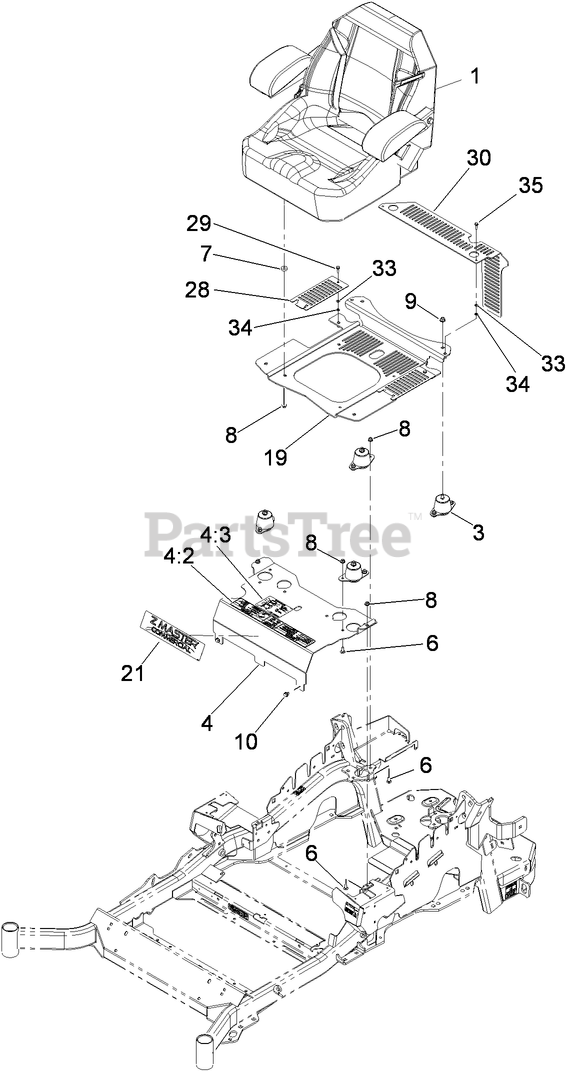

SEATING MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 116-0035

SEAT-STANDARD

$1287.99

$

Usually ships in 3-6 days

0

3

Toro 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

4

Toro 117-3836

MOUNT-SEAT
(Superseded to 116-2324)

$341.99

$

Usually ships in 3-6 days

0

4:2

Toro 114-4468

DECAL-CONSOLE

$53.99

$

Usually ships in 3-6 days

0

4:3

Toro 114-4465

DECAL-SERVICE AID

$29.99

$

Usually ships in 3-6 days

0

6

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Toro 26-4840

SPACER-PIN, MOUNTING

$6.99

$

Usually ships in 3-6 days

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 9266934

SCREW

$8.99

$

In Stock, only 3 left!

0

19

Toro 117-0910

SEAT BASE ASM

$365.99

$

Usually ships in 3-6 days

0

21

Toro 114-5878

DECAL

$22.99

$

In Stock, Qty 8

0

28

Toro 117-0901-03

COVER

$30.99

$

Usually ships in 3-6 days

0

29

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

30

Toro 114-1548-03

GUARD

$167.99

$

Usually ships in 3-6 days

0

33

Toro 3256-60

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

34

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

35

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0
