74925 (6000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) REAR WHEEL AND PARK BRAKE ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

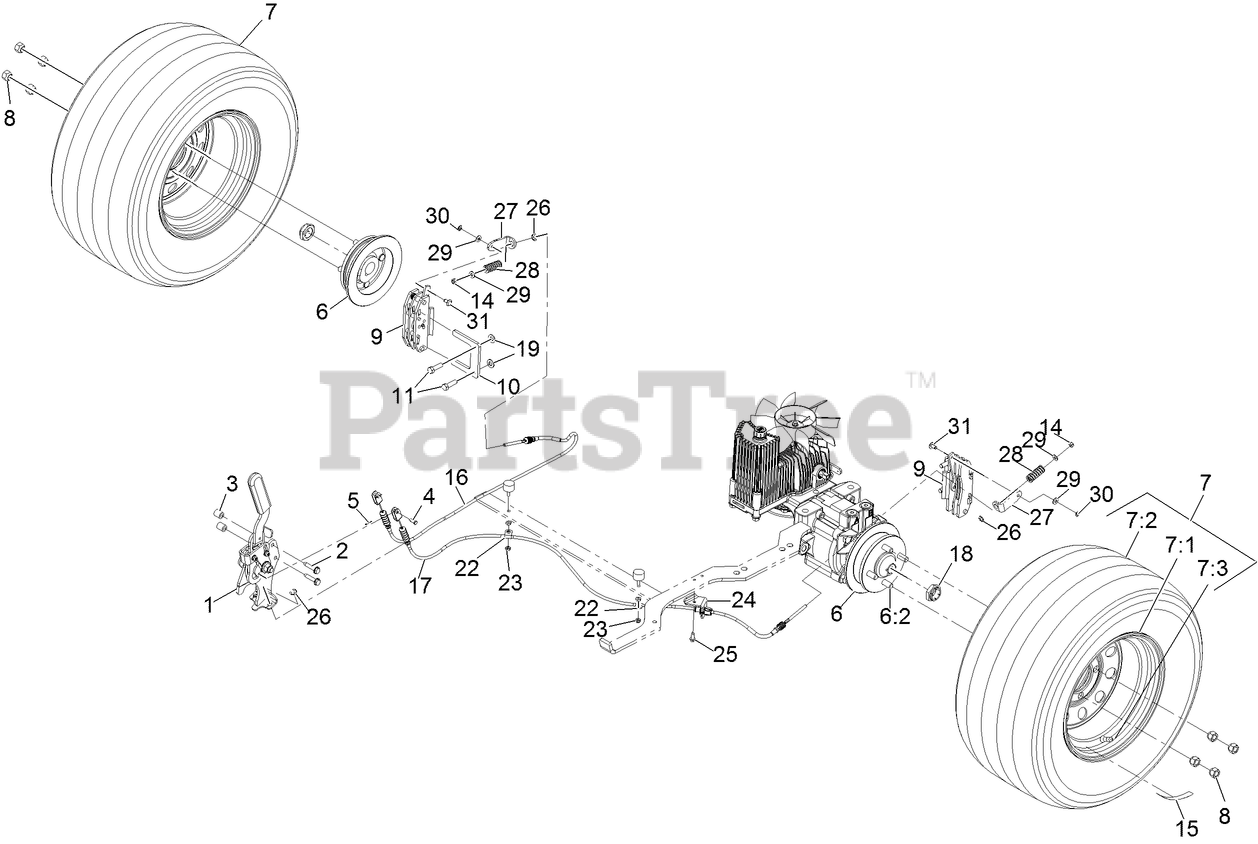

REAR WHEEL AND PARK BRAKE ASSEMBLY Parts Diagram

  • Title
1

Toro 116-6861

BRAKE HANDLE ASM
(Superseded to 116-7551)

$306.99

$

Usually ships in 3-6 days

0

2

$2.49

$

In Stock, Qty 20+

0

3

Toro 82-6840

SPACER

$7.49

$

In Stock, only 4 left!

0

4

Toro 60-1730

PIN-CLEVIS

$5.49

$

In Stock, Qty 12

0

5

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

6

Toro 116-1746

WHEEL HUB ASM
(Superseded to 142-2701)

$114.99

$

In Stock, Qty 15

0

6:2

Toro 116-1696

STUD-WHEEL

$3.99

$

In Stock, Qty 20+

0

7

Toro 109-3248

WHEEL AND TIRE ASM

$

$

Not available

7:1

$316.99

$

Usually ships in 3-6 days

0

7:2

$326.99

$

In Stock, only 4 left!

0

7:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

8

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

9

Toro 109-2889

CALIPER-BRAKE

$184.99

$

In Stock, only 2 left!

0

10

Toro 109-0958

PLATE-MOUNT, BRAKE

$15.99

$

In Stock, Qty 8

0

11

Toro 92-5727

SCREW-LOCK, PATCH

$3.99

$

In Stock, Qty 19

0

14

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

15

Toro 116-2643

DECAL-WHEEL NUT TORQUE
(Superseded to 126-2055)

$6.49

$

In Stock, Qty 11

0

16

Toro 116-6364

CABLE-PARK BRAKE, RH
(Superseded to 116-9469)

$98.99

$

In Stock, only 4 left!

0

17

Toro 116-6365

CABLE-PARK BRAKE, LH
(Superseded to 116-8963)

$85.99

$

In Stock, Qty 8

0

18

Toro 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

$4.99

$

In Stock, Qty 6

0

23

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 116-6397

BRACKET-CABLE

$7.99

$

In Stock, only 3 left!

0

25

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

26

Toro 32120-18

E-RING

$1.49

$

In Stock, Qty 20+

0

27

Toro 116-6182

BRACKET-BRAKE, L

$19.99

$

In Stock, Qty 9

0

28

Toro 116-6347

SPRING-DIE

$18.99

$

In Stock, only 3 left!

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

31

Toro 116-6348

PIN-BRAKE

$2.99

$

In Stock, Qty 20+

0
