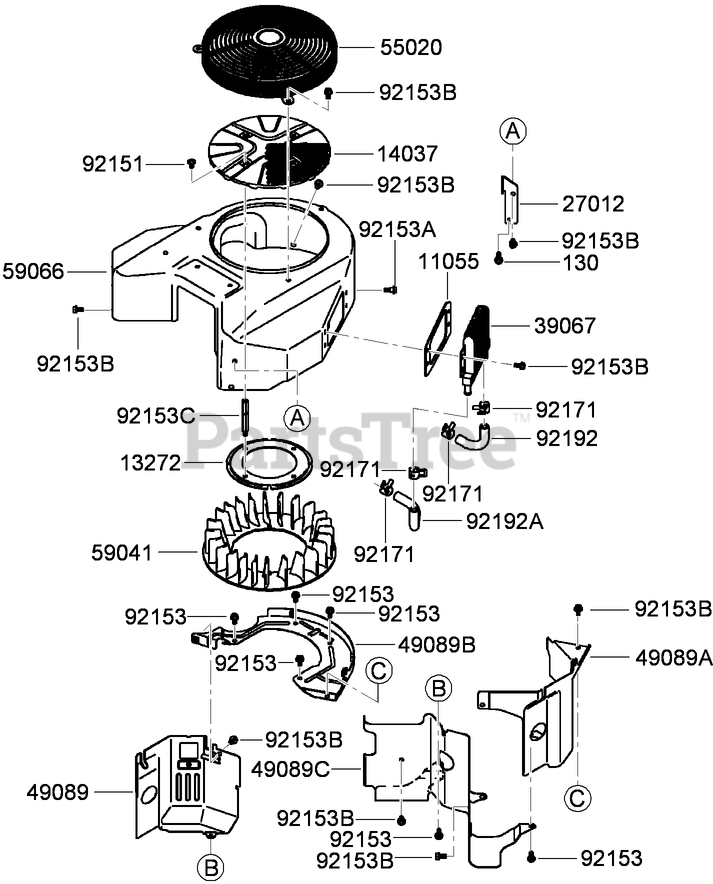

74925 (6000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) COOLING EQUIPMENT ASSEMBLY KAWASAKI FX801V-AS04 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

COOLING EQUIPMENT ASSEMBLY KAWASAKI FX801V-AS04 Parts Diagram

  • Title

130

Kawasaki 130AA0620

BOLT-FLANGED (6X20)
(Superseded to 130B0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

11055

Kawasaki 11055-7005

BRACKET
(Superseded to 11056-7280)

Note: Obtain parts from www.kawpowerepc.com

$9.49

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-7006

PLATE-FAN
(Superseded to 132721488)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, only 1 left!

0

14037

Kawasaki 14037-7029-9H

SCREEN

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

27012

Kawasaki 27012-7006

HOOK-LIFT

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

39067

Kawasaki 39067-7007

COOLER-OIL
(Superseded to 39067-0018)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

49089

Kawasaki 49089-7064-753

SHROUD-ENGINE, No.1

Note: Obtain parts from www.kawpowerepc.com

$30.99

$

Usually ships in 2-5 days

0

49089A

Kawasaki 49089-7065-753

SHROUD-ENGINE, No.2
(Superseded to 49089-0904)

Note: Obtain parts from www.kawpowerepc.com

$34.99

$

Usually ships in 2-5 days

0

49089B

Kawasaki 49089-7066

SHROUD-ENGINE, REAR
(Superseded to 49089-0834)

Note: Obtain parts from www.kawpowerepc.com

$31.99

$

Usually ships in 2-5 days

0

49089C

Kawasaki 49089-7067-753

SHROUD-ENGINE, V-BANK

Note: Obtain parts from www.kawpowerepc.com

$29.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-7016-9H

GUARD

Note: Obtain parts from www.kawpowerepc.com

$51.99

$

In Stock, only 1 left!

0

59041

Kawasaki 59041-7013

FAN
(Superseded to 59041-7019)

Note: Obtain parts from www.kawpowerepc.com

$19.99

$

In Stock, Qty 5

0

59066

Kawasaki 59066-7042-753

HOUSING-FAN
(Superseded to 59066-0034-753)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92151

Kawasaki 92151-7012

BOLT (6X12)
(Superseded to 92154-2687)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-0010

BOLT

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

Usually ships in 2-5 days

0

92153A

Kawasaki 92153-7007

Bolt

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92153B

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153C

Kawasaki 92153-7101

BOLT
(Superseded to 92154-1151)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-7015

CLAMP
(Superseded to 92173-1619)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 20+

0

92192

Kawasaki 92192-7089

TUBE

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92192A

Kawasaki 92192-7090

TUBE

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0
