74924 (ZX 5420) - Toro 54" Titan Zero-Turn Mower (SN: 312000001 - 312999999) (2012) MOTION CONTROL ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

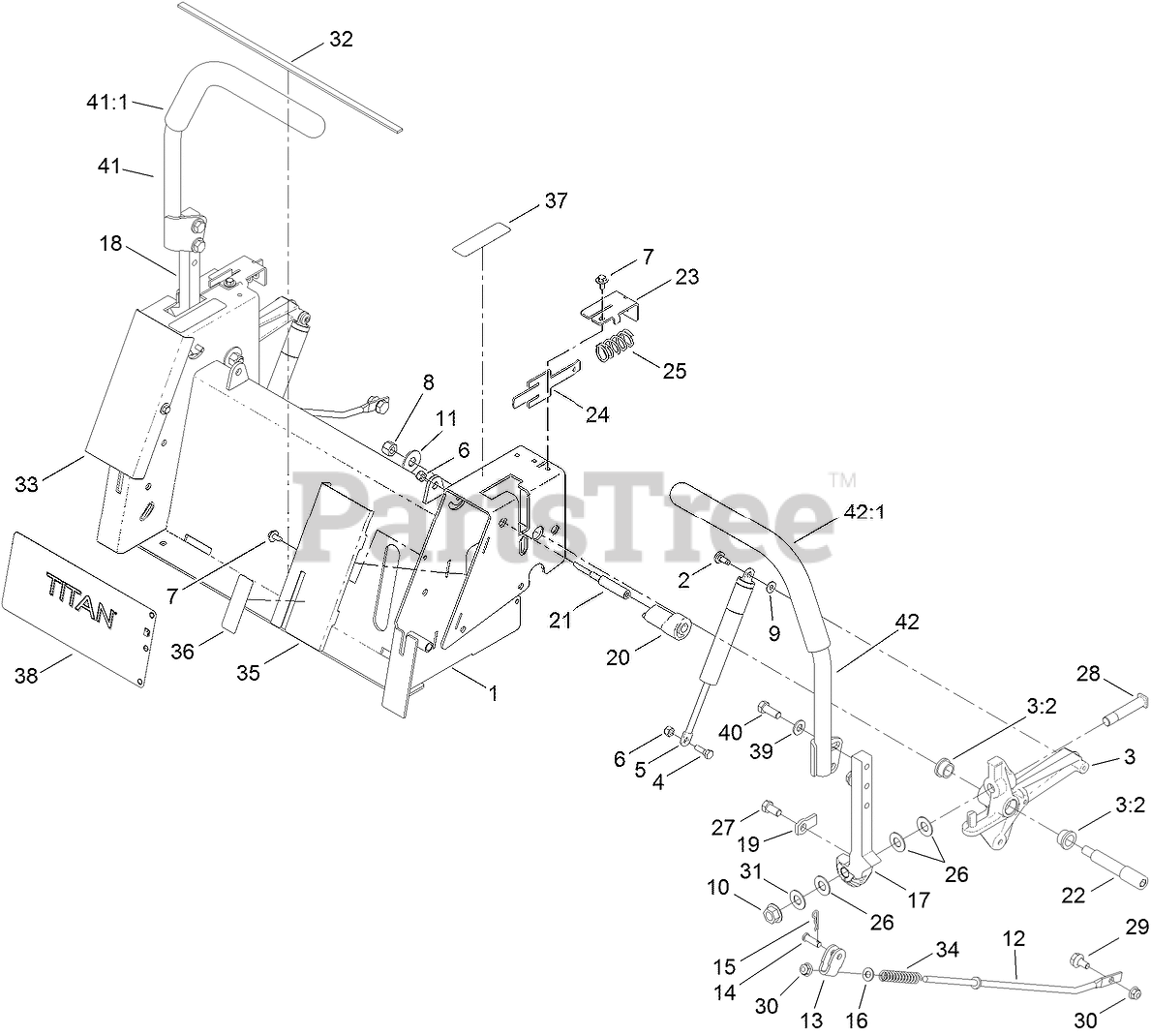

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 115-2546-03

BOX-CONTROL
(Superseded to 127-3282-03)

$325.99

$

Usually ships in 3-6 days

0

2

Toro 112-4004

SCREW-SHOULDER
(Superseded to 120-7950)

$2.99

$

In Stock, Qty 15

0

3

Toro 110-6828

ACTIVATOR ARM ASM

$57.99

$

In Stock, only 1 left!

0

3:2

Toro 105-3455

BUSHING

$3.49

$

In Stock, only 4 left!

0

4

Toro 106-2214

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

5

Toro 109-2339

DAMPER-CONTROL, MOTION

$82.99

$

In Stock, Qty 7

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

8

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

10

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

11

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

12

Toro 117-7422

ROD-CONTROL

$13.99

$

Usually ships in 3-6 days

0

13

Toro 117-7423

BRACKET-CONTROL

$7.49

$

Usually ships in 3-6 days

0

14

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

15

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 110-6783-05

ARM-ACTUATOR, LH

$73.99

$

In Stock, only 2 left!

0

18

Toro 110-6782-05

ARM-ACTUATOR, RH

$73.99

$

In Stock, only 1 left!

0

19

Toro 115-5023

TAB-STOP

$5.49

$

Usually ships in 3-6 days

0

20

Toro 110-6873

ECCENTRIC

$5.49

$

Usually ships in 3-6 days

0

21

Toro 110-6874

SCREW-ECCENTRIC

$9.49

$

Usually ships in 3-6 days

0

22

Toro 110-6875

BOLT-SHOULDER

$28.99

$

Usually ships in 3-6 days

0

23

Toro 110-6751

BRACKET-RETURN

$6.99

$

Usually ships in 3-6 days

0

24

Toro 110-6750

PLATE-RETURN

$6.99

$

Usually ships in 3-6 days

0

25

Toro 110-6752

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

26

Toro 110-6894

WASHER-PIVOT

$1.49

$

In Stock, only 1 left!

0

27

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

28

Toro 110-6784

BOLT-SHOULDER

$

$

Not available

29

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, Qty 5

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 112-9771

WASHER-TEFLON

$2.99

$

In Stock, Qty 18

0

32

Toro 117-7237

STRIP-VIBRATION, ANTI

$6.99

$

Usually ships in 3-6 days

0

33

Toro 117-1255-03

COVER-CONTROL, RH

$18.99

$

Usually ships in 3-6 days

0

34

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

35

Toro 115-2561-03

COVER-CONTROL, LH

$18.99

$

Usually ships in 3-6 days

0

36

Toro 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

37

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

Usually ships in 3-6 days

0

38

Toro 119-8986

DECAL

$17.99

$

Usually ships in 3-6 days

0

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

41

Toro 121-0731

HANDLE-CONTROL, RH

$72.99

$

In Stock, only 2 left!

0

41:1

Toro 121-0726

GRIP

$14.99

$

In Stock, only 4 left!

0

42

Toro 121-0730

HANDLE-CONTROL, LH

$72.99

$

In Stock, only 4 left!

0

42:1

Toro 121-0726

GRIP

$14.99

$

In Stock, only 4 left!

0
