74924 (ZX 5420) - Toro 54" Titan Zero-Turn Mower (SN: 312000001 - 312999999) (2012) 54 INCH DECK BELT, SPINDLE AND BLADE ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

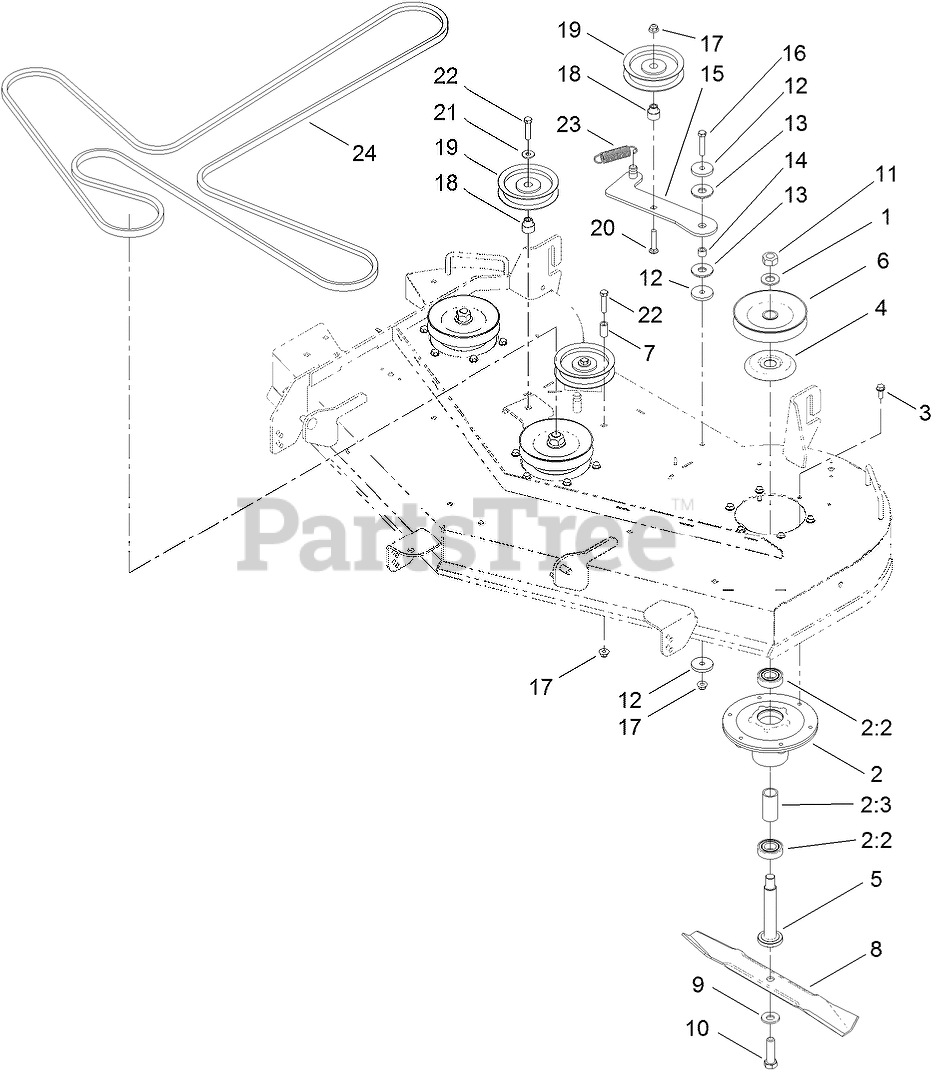

54 INCH DECK BELT, SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

2

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$102.99

$

In Stock, only 2 left!

0

2:2

Toro 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

2:3

Toro 115-2641

SPACER-BEARING

$12.99

$

In Stock, only 2 left!

0

3

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

4

Toro 117-7210

SHIELD-BEARING

$10.99

$

In Stock, only 2 left!

0

5

Toro 115-2642

SHAFT-SPINDLE

$52.99

$

In Stock, only 2 left!

0

6

Toro 115-5018

PULLEY
(Superseded to 138-7223)

$49.99

$

Usually ships in 3-6 days

0

7

Toro 1-603401

SPACER

$6.99

$

In Stock, Qty 8

0

8

Toro 115-4999-03

BLADE-MULCH, 18.75 INCH

$33.99

$

Usually ships in 3-6 days

0

9

Toro 22-8520

WASHER-BELLEVILLE
(Superseded to 125-1736)

$4.49

$

In Stock, only 3 left!

0

10

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

11

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 9

0

12

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

13

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

14

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

15

Toro 115-5054

ARM-IDLER

$72.99

$

In Stock, only 2 left!

0

16

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 19

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 115-2577

BUSHING-IDLER

$6.49

$

In Stock, only 2 left!

0

19

Toro 116-3626

PULLEY-IDLER
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

20

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

21

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

0

22

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 108-4056

SPRING-EXTENSION

$8.49

$

In Stock, Qty 18

0

24

Toro 115-4971

V-BELT
(Superseded to 133-1167)

$123.99

$

In Stock, only 1 left!

0
