74924 (ZX 5420) - Toro 54" Titan Zero-Turn Mower (SN: 311000001 - 311999999) (2011) FUEL DELIVERY ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

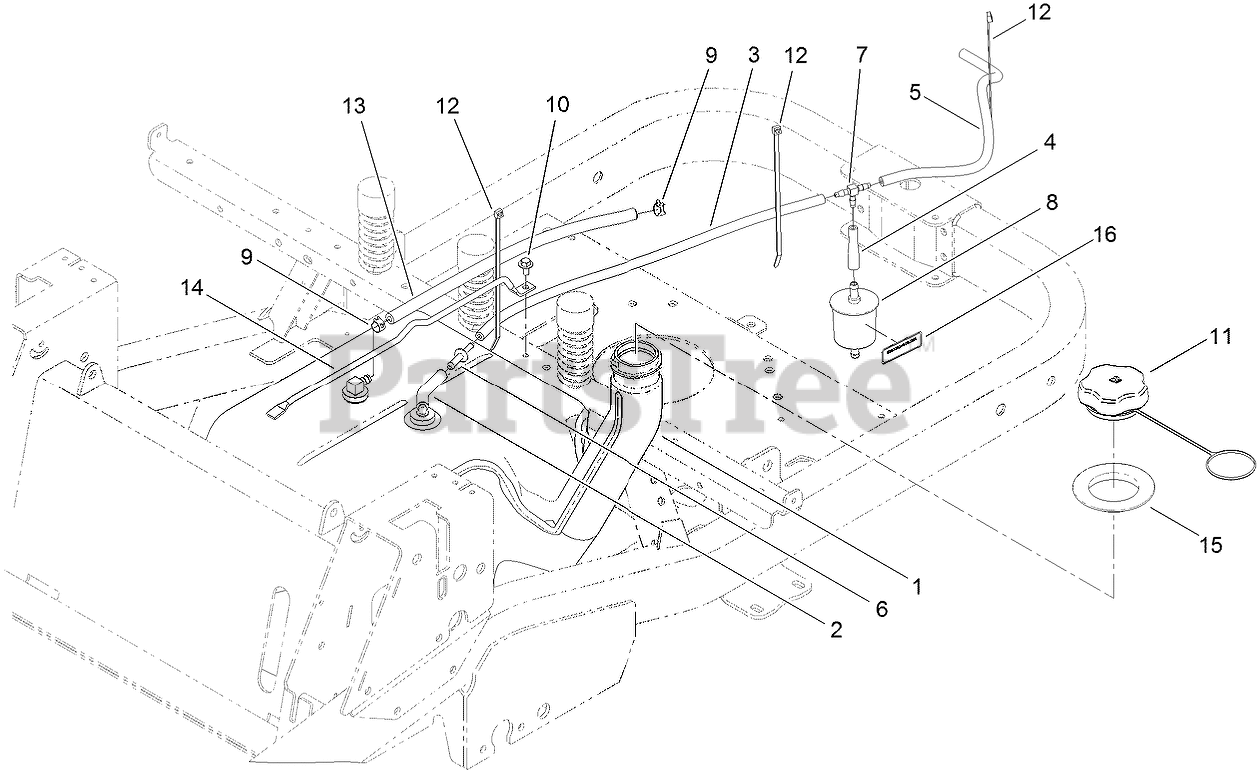

FUEL DELIVERY ASSEMBLY Parts Diagram

  • Title

1

Toro 117-7352

FUEL TANK ASM

$442.99

$

Usually ships in 3-6 days

0

2

Toro 114-3765

HOSE-FUEL

$4.99

$

In Stock, only 1 left!

0

3

Toro 119-8150

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

4

Toro 120-2272

HOSE-FUEL, MOLDED

$5.49

$

Usually ships in 3-6 days

0

5

Toro 119-8150

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

6

Toro 117-5399

ADAPTOR-ORIFICE

$3.49

$

Usually ships in 3-6 days

0

7

Toro 120-2234

FITTING-TEE

$3.99

$

Usually ships in 3-6 days

0

8

Toro 120-2235

FILTER-FUEL

$9.49

$

In Stock, Qty 5

0

9

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

10

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

11

Toro 114-0294

CAP-FUEL, RACHETING
(Superseded to 125-1847)

$25.99

$

In Stock, only 1 left!

0

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

13

Toro 107-0589

HOSE-FUEL

$7.49

$

In Stock, Qty 5

0

14

Toro 115-2620

ROD-TANK, GAS

$19.99

$

Usually ships in 3-6 days

0

15

Toro 117-1298

SEAL-TANK

$8.99

$

Usually ships in 3-6 days

0

16

Toro 116-4769

DECAL-FILTER, EMISSIONS

$2.99

$

In Stock, only 3 left!

0
