74923 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) FRAME, CASTER WHEEL AND Z STAND ASSEMBLY Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

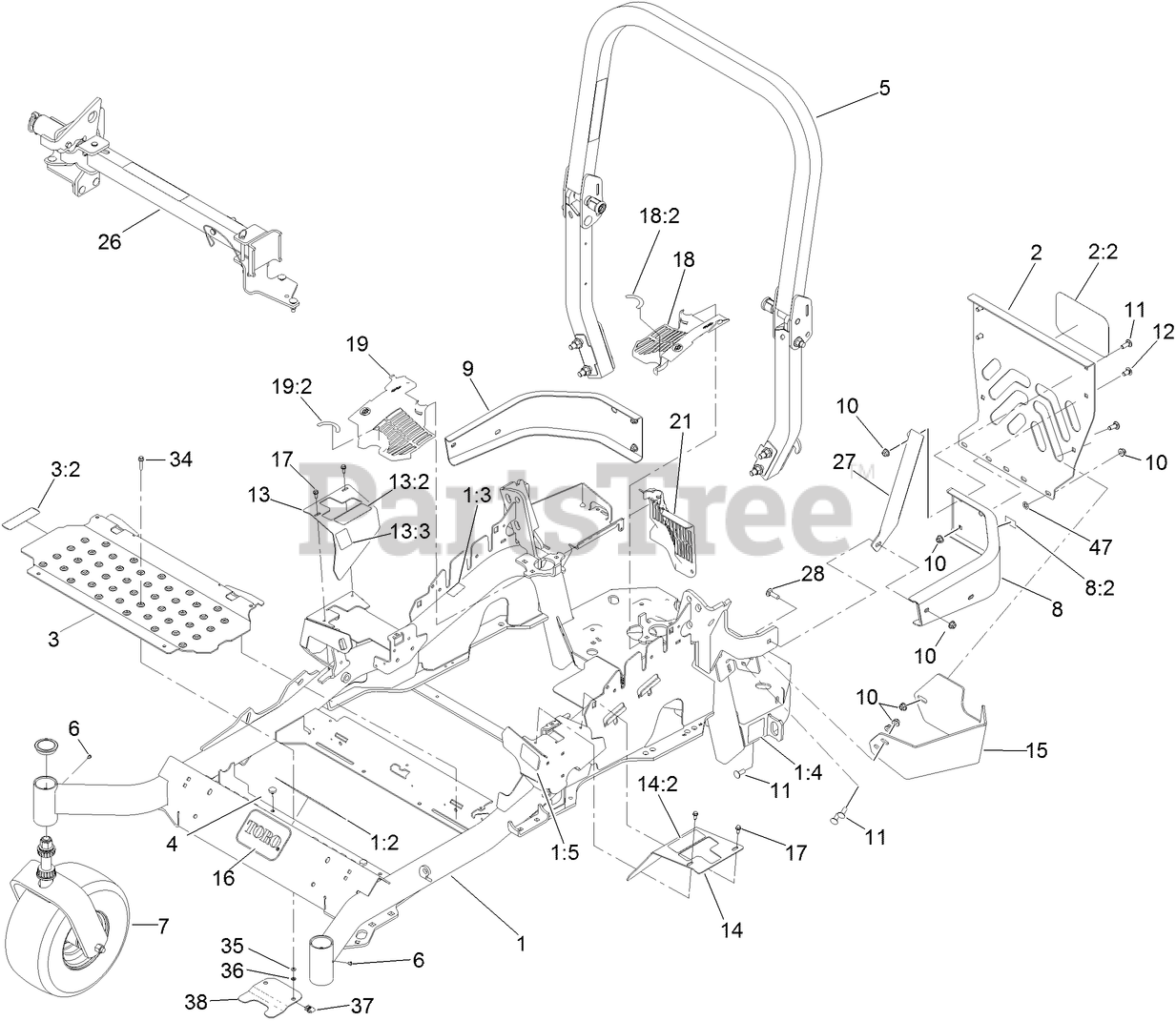

FRAME, CASTER WHEEL AND Z STAND ASSEMBLY Parts Diagram

  • Title

1

Toro 116-6368

MAIN FRAME ASM
(Superseded to 131-7671)

$3266.99

$

Usually ships in 3-6 days

0

1:2

Toro 117-3888

DECAL-DANGER SLOPE W/ROPS

$5.49

$

Usually ships in 3-6 days

0

1:3

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

1:4

Toro 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

In Stock, only 1 left!

0

1:5

Toro 117-3864

DECAL-FUEL FILL, CE

$13.99

$

In Stock, only 1 left!

0

2

Toro 115-7410

REAR GUARD ASM

$206.99

$

In Stock, only 1 left!

0

2:2

Toro 67-7320

DECAL

$35.99

$

In Stock, only 2 left!

0

3

Toro 117-0915

FLOORPAN ASM

$224.99

$

Usually ships in 3-6 days

0

3:2

Toro 112-9028

DECAL-MISSING, COVER

$22.99

$

Usually ships in 3-6 days

0

4

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

5

Toro 116-0232

ROPS ASM

$816.99

$

Usually ships in 3-6 days

0

6

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

7

Caster Wheel ASM

Note: Not serviced separately

$

$

Not available

8

Toro 117-3829

LH REAR BUMPER ASM

$224.99

$

Usually ships in 3-6 days

0

8:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

9

Toro 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

12

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

13

Toro 116-5898

RH MOTION CONTROL COVER ASM
(Superseded to 116-5899)

$49.99

$

Usually ships in 3-6 days

0

13:2

Toro 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

13:3

Toro 116-5988

DECAL-PARK BRAKE, CE

$14.99

$

In Stock, only 1 left!

0

14

Toro 117-3831

LH MOTION CONTROL COVER ASM

$75.99

$

Usually ships in 3-6 days

0

14:2

Toro 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

15

Toro 119-0396

MUFFLER-GUARD, ASM

$

$

Currently unavailable

15:2

Toro 119-6651

FOIL-TAPE, GUARD

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

16

Toro 68-3640

DECAL

$20.99

$

In Stock, only 2 left!

0

17

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

18

Toro 117-3838

LH HYDRO GUARD ASM

$90.99

$

Usually ships in 3-6 days

0

18:2

Toro 117-3811

DECAL-HYDRO OIL

$18.99

$

Usually ships in 3-6 days

0

19

Toro 117-3839

RH HYDRO GUARD ASM

$90.99

$

Usually ships in 3-6 days

0

19:2

Toro 117-3811

DECAL-HYDRO OIL

$18.99

$

Usually ships in 3-6 days

0

21

Toro 109-9058

GUARD-HYDRO, REAR (RH)

$25.99

$

In Stock, only 3 left!

0

26

Z STAND ASM

Note: Not serviced separately

$

$

Not available

27

Toro 117-0903-03

STRAP

$68.99

$

Usually ships in 3-6 days

0

28

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

34

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

35

Toro 3256-60

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

36

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

37

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

38

Toro 119-0395-03

ADAPTER-CAPTIVE

$22.99

$

Usually ships in 3-6 days

0

47

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0
