74923 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311999999) (2011) DECK ASSEMBLY Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

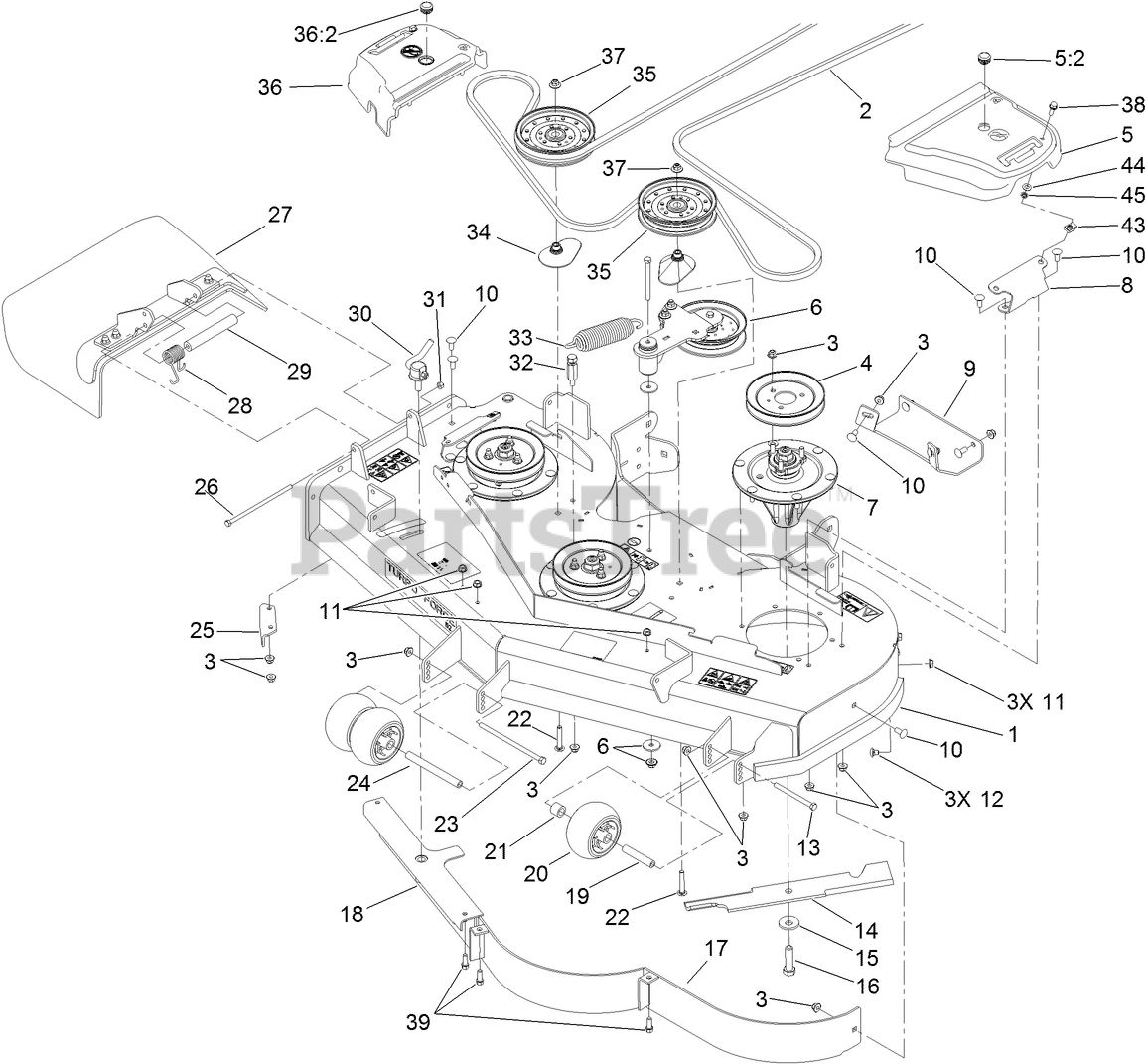

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 117-3809

DECK DECAL ASM

$

$

Currently unavailable

2

Toro 115-7426

BELT-V

$148.99

$

In Stock, only 1 left!

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 115-7450

PULLEY

$57.99

$

In Stock, only 1 left!

0

5

Toro 117-7814

LH BELT COVER ASM

$42.99

$

Usually ships in 3-6 days

0

5:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

6

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

7

Toro 119-8560

SPINDLE ASM

$581.99

$

In Stock, Qty 11

0

8

Toro 114-5881-01

BRACKET-COVER, BELT

$83.99

$

Usually ships in 3-6 days

0

9

Toro 112-4230-01

PLATE-SKID

$84.99

$

Usually ships in 3-6 days

0

10

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 108-5387

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

13

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

14

Toro 105-7781-03

BLADE-18IN, HI FLOW

$28.99

$

In Stock, Qty 13

0

15

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

16

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

17

Toro 115-7461-01

BAFFLE ASM

$236.99

$

Usually ships in 3-6 days

0

18

Toro 107-8506-01

BAFFLE
(Superseded to 131-1480-01)

$158.99

$

Usually ships in 3-6 days

0

19

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

20

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

21

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

22

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, only 2 left!

0

23

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

24

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

25

Toro 107-8541-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

26

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

27

Toro 108-2792

RUBBER DEFLECTOR ASM

$227.99

$

Usually ships in 3-6 days

0

28

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

29

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

30

Toro 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 114-5867

ANCHOR-SPRING, TALL

$14.99

$

In Stock, only 2 left!

0

33

Toro 116-0133

EXTENSION-SPRING
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

34

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

35

Toro 114-5895

PULLEY-IDLER, FLAT
(Superseded to 136-5404)

$60.99

$

In Stock, only 1 left!

0

36

Toro 117-7813

RH BELT COVER ASM

$42.99

$

Usually ships in 3-6 days

0

36:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

37

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

38

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

39

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

43

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

44

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

45

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0
