74923 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) STARTER ASSEMBLY KOHLER CV730-3118 Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

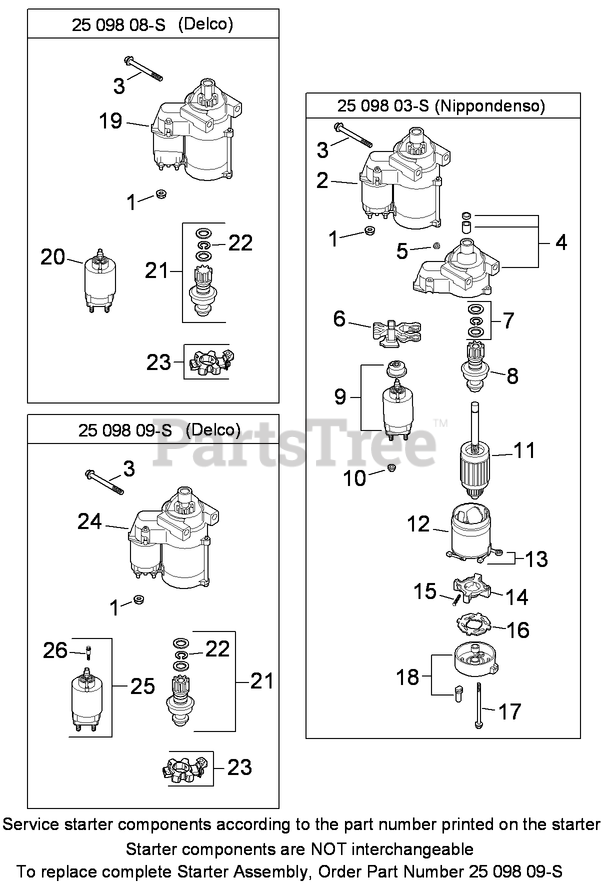

STARTER ASSEMBLY KOHLER CV730-3118 Parts Diagram

  • Title

1

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

2

Kohler 25 098 09-S

STARTER ASM (SOLENOID SHIFT) (INCLUDES 1-18)
(Superseded to 25 098 20-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Kohler M-839080-S

SCREW-FLG (M8X1.25X80)
(Superseded to M-851080-S)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

4

Kohler 12 081 02-S

CAP-END, DRIVE

Note: Obtain parts from www.kohlerplus.com

$432.99

$

Usually ships in 2-5 days

0

5

Kohler 52 100 10-S

Nut-Starter

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

6

Kohler 12 090 10-S

LEVER-DRIVE, STARTER

Note: Obtain parts from www.kohlerplus.com

$73.99

$

Usually ships in 2-5 days

0

7

Kohler 24 755 84-S

STARTER REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$62.99

$

Usually ships in 2-5 days

0

8

Kohler 12 239 01-S

Drive-Pinion

Note: Obtain parts from www.kohlerplus.com

$291.99

$

Usually ships in 2-5 days

0

9

Kohler 52 435 02-S

Solenoid

Note: Obtain parts from www.kohlerplus.com

$499.99

$

Usually ships in 2-5 days

0

10

Kohler 52 100 09-S

Nut

Note: Obtain parts from www.kohlerplus.com

$5.99

$

Usually ships in 2-5 days

0

11

Kohler 12 170 03-S

Armature-Starter

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 12 471 01-S

Frame w/Brushes ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

13

Kohler 52 221 01-S

BRUSH and SPRING KIT (INCLUDES 15)

Note: Obtain parts from www.kohlerplus.com

$115.99

$

Usually ships in 2-5 days

0

14

Kohler 52 323 03-S

Holder-Brush

Note: Obtain parts from www.kohlerplus.com

$23.99

$

Usually ships in 2-5 days

0

15

Kohler 52 089 09-S

Spring-Brush

Note: Obtain parts from www.kohlerplus.com

$6.99

$

Usually ships in 2-5 days

0

16

Kohler 52 168 01-S

Insulator

Note: Obtain parts from www.kohlerplus.com

$31.99

$

Usually ships in 2-5 days

0

17

Kohler 52 211 05-S

Bolt-Thru

Note: Obtain parts from www.kohlerplus.com

$10.99

$

Usually ships in 2-5 days

0

18

Kohler 12 301 01-S

CAP-END, COMMUTATOR

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

19

Kohler 25 098 08-S

STARTER ASM (SOLENOID SHIFT) (INCLUDES 1, 3, 19-23)
(Superseded to 25 098 09-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

20

Kohler 25 435 04-S

Solenoid Kit

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

21

Kohler 25 755 33-S

STARTER PINION KIT (INCLUDES 22)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

22

Kohler 25 141 05-S

RING-RETAINING

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

23

Kohler 25 221 01-S

BRUSH HOLDER KIT

Note: Obtain parts from www.kohlerplus.com

$70.99

$

Usually ships in 2-5 days

0

24

Kohler 25 098 09-S

STARTER ASM (SOLENOID SHIFT) (INCLUDES 1, 3, 21-26)
(Superseded to 25 098 20-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

25

Kohler 25 435 06-S

SOLENOID KIT (INCLUDES 26)

Note: Obtain parts from www.kohlerplus.com

$212.99

$

In Stock, only 2 left!

0

26

Kohler 25 086 113-S

SCREW-TORX HEAD, EXTERNAL

Note: Obtain parts from www.kohlerplus.com

$15.99

$

Usually ships in 2-5 days

0
