74923 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) HEAD, VALVE AND BREATHER ASSEMBLY KOHLER CV730-3118 Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

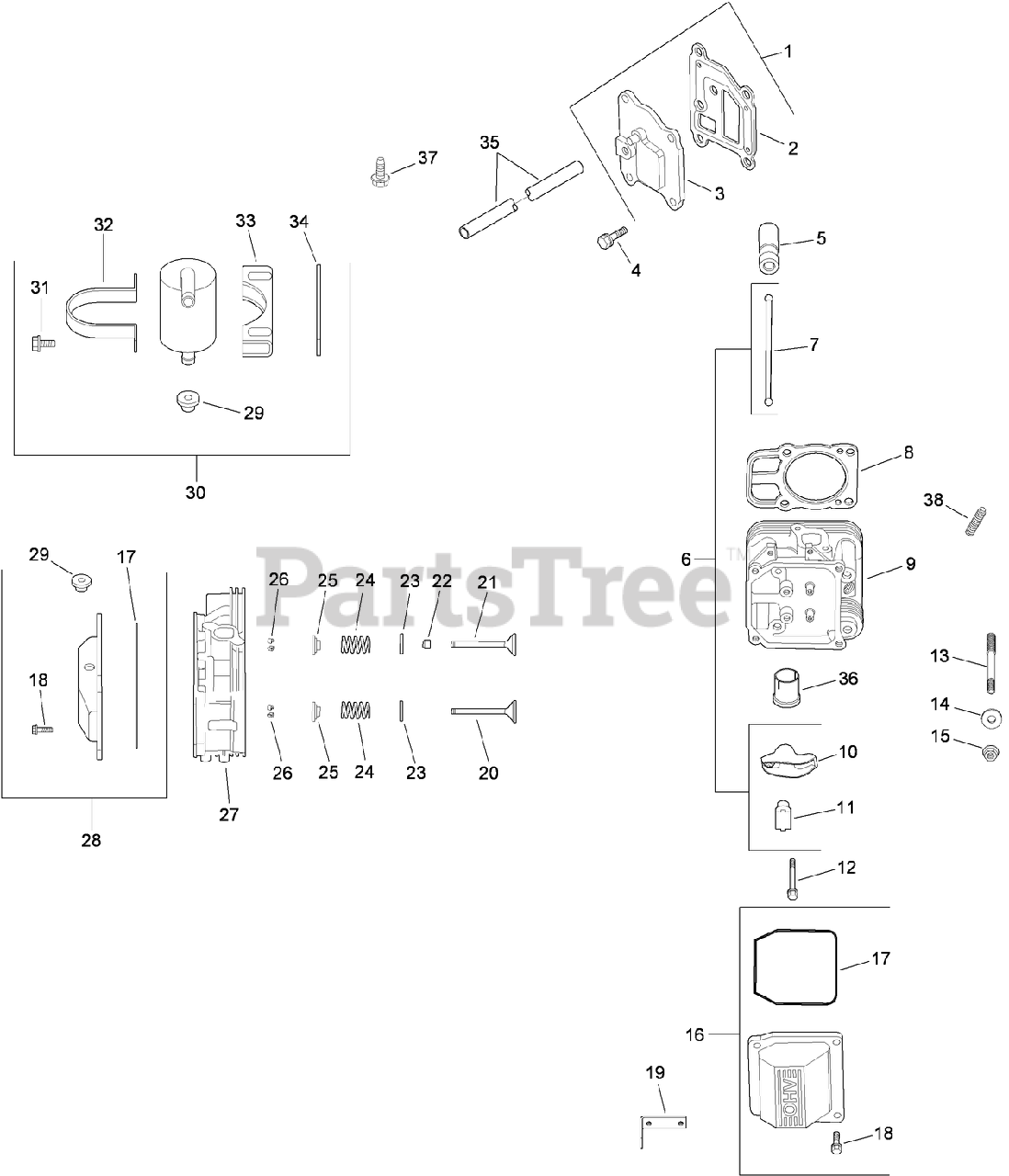

HEAD, VALVE AND BREATHER ASSEMBLY KOHLER CV730-3118 Parts Diagram

  • Title

1

Kohler 24 033 03-S

breather cover w/gasket Kit (INCLUDES 2, 3)

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 64-S

GASKET-BREATHER
(Superseded to 24 041 67-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 9

0

3

Kohler 24 096 87-S

Cover-Breather
(Superseded to 24 033 03-S)

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, only 1 left!

0

4

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

5

Kohler 25 351 04-S

HYDRAULIC VALVE LIFTER KIT (INCLUDES 25 357 14-S)
(Superseded to 25 351 11-S)

Note: Obtain parts from www.kohlerplus.com

$23.99

$

In Stock, only 4 left!

0

6

Kohler 24 755 66-S

VALVE TRAIN KIT (INCLUDES 7, 10, 11)

Note: Obtain parts from www.kohlerplus.com

$45.99

$

In Stock, only 3 left!

0

7

Kohler 24 411 05-S

ROD-PUSH

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 9

0

8

Kohler 24 841 03-S

CYLINDER HEAD GASKET KIT
(Superseded to 24 841 04-S)

Note: Obtain parts from www.kohlerplus.com

$45.99

$

In Stock, Qty 20+

0

9

Kohler 24 318 116-S

HEAD-CYLINDER (No.2) (INCLUDES 38)
(Superseded to 24 818 06-S)

Note: Obtain parts from www.kohlerplus.com

$239.99

$

Usually ships in 2-5 days

0

10

Kohler 25 186 01-S

ARM-ROCKER

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, only 2 left!

0

11

Kohler 24 599 02-S

PIVOT-ARM, ROCKER

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

12

Kohler M-640034-S

SCREW-FLANGE (M6X1.0X34)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 18

0

13

Kohler 24 072 09-S

STUD (M8X1.25xM10X1.5x105MM)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 4 left!

0

14

Kohler 24 468 16-S

WASHER-FLAT (8.6 MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 24 100 10-S

NUT-FLANGE (M8X1.25)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

16

Kohler 24 755 141-S

PLAIN ROCKER COVER KIT (INCLUDES 17, 18)

Note: Obtain parts from www.kohlerplus.com

$35.99

$

In Stock, only 2 left!

0

17

Kohler 24 153 30-S

O-RING (VALVE COVER)
(Superseded to 25 153 24-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

18

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

19

Kohler 25 445 01-S

STRAP-LIFTING
(Superseded to 25 445 03-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

20

Kohler 24 016 01-S

VALVE-EXHAUST (STD)
(Superseded to 32 016 01-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 4 left!

0

20

Kohler 24 016 02-S

VALVE-EXHAUST (.25)
(Superseded to 32 016 02-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 3 left!

0

21

Kohler 24 017 01-S

VALVE-INTAKE (STD)

Note: Obtain parts from www.kohlerplus.com

$30.99

$

In Stock, Qty 17

0

21

Kohler 24 017 02-S

VALVE-INTAKE (.25)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

22

Kohler 66 032 05-S

SEAL-STEM, VALVE
(Superseded to 25 032 14-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, only 2 left!

0

23

Kohler 235011-S

RETAINER-SPRING

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

24

Kohler 24 089 02-S

SPRING-VALVE

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 2 left!

0

25

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, Qty 5

0

26

Kohler 12 755 03-S

RETAINER KIT

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, only 2 left!

0

27

Kohler 24 318 108-S

HEAD-CYLINDER (No.1) (INCLUDES 38)
(Superseded to 24 318 196-S)

Note: Obtain parts from www.kohlerplus.com

$239.99

$

Usually ships in 2-5 days

0

28

Kohler 24 755 142-S

BREATHER VALVE COVER ASM (INCLUDES 17, 18, 29)

Note: Obtain parts from www.kohlerplus.com

$38.99

$

In Stock, only 1 left!

0

29

Kohler 25 313 03-S

GROMMET-RUBBER

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, only 3 left!

0

30

Kohler 24 755 57-S

BREATHER VALVE COVER KIT (INCLUDES 29, 31-34)
(Superseded to 24 755 241-S)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

In Stock, Qty 7

0

31

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

32

Kohler 24 445 02-S

STRAP-BREATHER
(Superseded to 24 755 241-S)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

In Stock, Qty 7

0

33

Kohler 24 126 44-S

BRACKET-SEPARATOR, BREATHER

Note: Obtain parts from www.kohlerplus.com

$5.49

$

Usually ships in 2-5 days

0

34

Kohler 24 112 12-S

Spacer
(Superseded to 24 755 241-S)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

In Stock, Qty 7

0

35

Kohler 24 326 54-S

Hose-Breather
(Superseded to 24 326 63-S)

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, only 2 left!

0

36

Kohler 24 605 01-S

Liner-Port, Exhaust
(Superseded to 24 605 07-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 2 left!

0

37

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 15

0

37

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Not illustrated

$3.99

$

In Stock, Qty 15

0

38

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Not illustrated

$3.99

$

In Stock, only 3 left!

0

38

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 3 left!

0

Kohler 25 454 05-S

TIE

Note: Not illustrated

$2.49

$

In Stock, only 2 left!

0

Kohler 25 454 05-S

TIE

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

Kohler 24 755 147-S

CYLINDER HEAD HARDWARE KIT (INCLUDES 7, 10-12, 20-26)

Note: Obtain parts from www.kohlerplus.com

$96.99

$

In Stock, only 3 left!

0

Kohler 24 755 147-S

CYLINDER HEAD HARDWARE KIT (INCLUDES 7, 10-12, 20-26)

Note: Not illustrated

$96.99

$

In Stock, only 3 left!

0

Kohler 25 357 14-S

LUBRICANT-CAMSHAFT

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

Kohler 25 357 14-S

LUBRICANT-CAMSHAFT

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0
