74923 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) ENGINE CONTROL ASSEMBLY KOHLER CV730-3118 Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

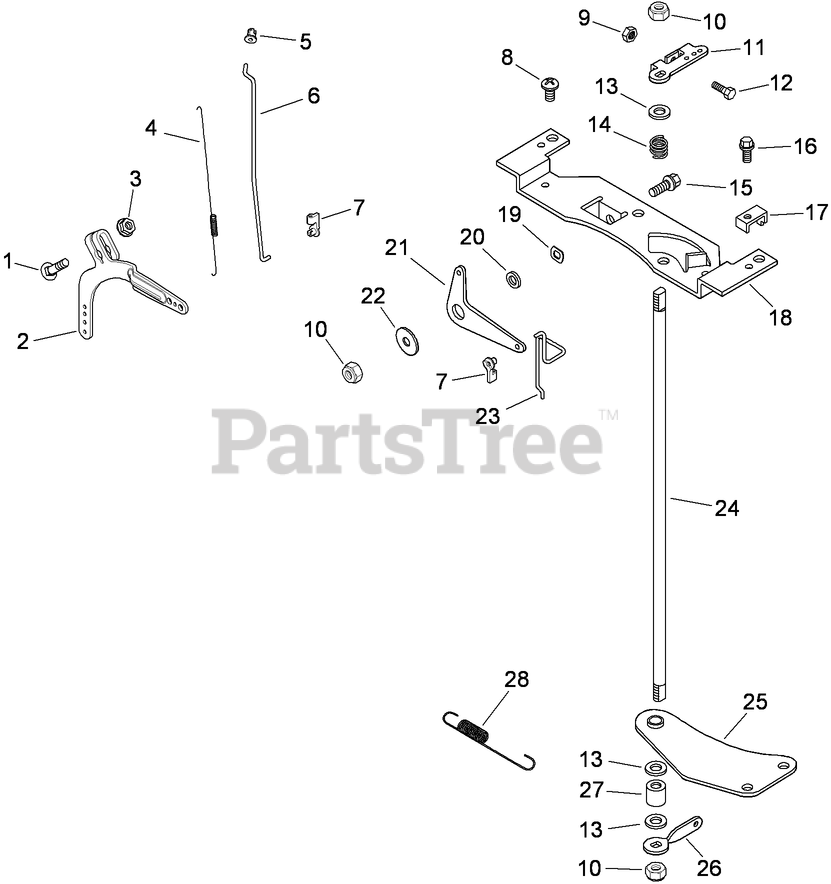

ENGINE CONTROL ASSEMBLY KOHLER CV730-3118 Parts Diagram

  • Title

1

Kohler 24 211 03-S

BOLT-SQ NECK, RD HD (M6X1.0X25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 15

0

2

Kohler 24 090 51-S

LEVER-GOVERNOR
(Superseded to 24 090 69-S)

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, only 1 left!

0

3

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

4

Kohler 24 089 01-S

SPRING-LINKAGE

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

5

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 18

0

6

Kohler 24 079 04-S

LINKAGE-THROTTLE

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 5

0

7

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, only 3 left!

0

8

Kohler 24 086 06-S

SCREW-PPH (11-16X3/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

9

Kohler M-446030-S

NUT (M4X0.7)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

10

Kohler M-647060-S

Nut-Lock (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

11

Kohler 24 090 09-S

Lever-Control, Throttle

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, only 1 left!

0

12

Kohler M-401030-S

Screw (M4x0.7x30)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 9

0

13

Kohler X-25-72-S

Washer-Plain (1/4)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 2 left!

0

14

Kohler 24 089 20-S

Spring-Shaft, Throttle

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 12

0

15

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

16

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

17

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 5

0

18

Kohler 24 126 111-S

Bracket-Control
(Superseded to 24 126 219-S)

Note: Obtain parts from www.kohlerplus.com

$37.99

$

In Stock, only 2 left!

0

19

Kohler 277341-S

Washer-Spring (3/8)

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, only 1 left!

0

20

Kohler 25 431 01-S

Spacer

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, only 2 left!

0

21

Kohler 24 090 20-S

Lever-Choke

Note: Obtain parts from www.kohlerplus.com

$9.99

$

Usually ships in 2-5 days

0

22

Kohler X-25-52-S

Washer-Flat (1/4)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

23

Kohler 24 079 10-S

Linkage-Choke

Note: Obtain parts from www.kohlerplus.com

$19.99

$

In Stock, only 2 left!

0

24

Kohler 24 144 11-S

Shaft-Throttle

Note: Obtain parts from www.kohlerplus.com

$28.99

$

In Stock, only 2 left!

0

25

Kohler 24 126 162-S

BRACKET-SHAFT, THROTTLE

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, only 1 left!

0

26

Kohler 24 090 12-S

Lever-Control, Throttle

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, only 2 left!

0

27

Kohler 24 112 10-S

Spacer

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

28

Kohler 24 089 49-S

Spring-Governor (ORANGE)

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, only 3 left!
