74923 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) CRANKCASE ASSEMBLY KOHLER CV730-3118 Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

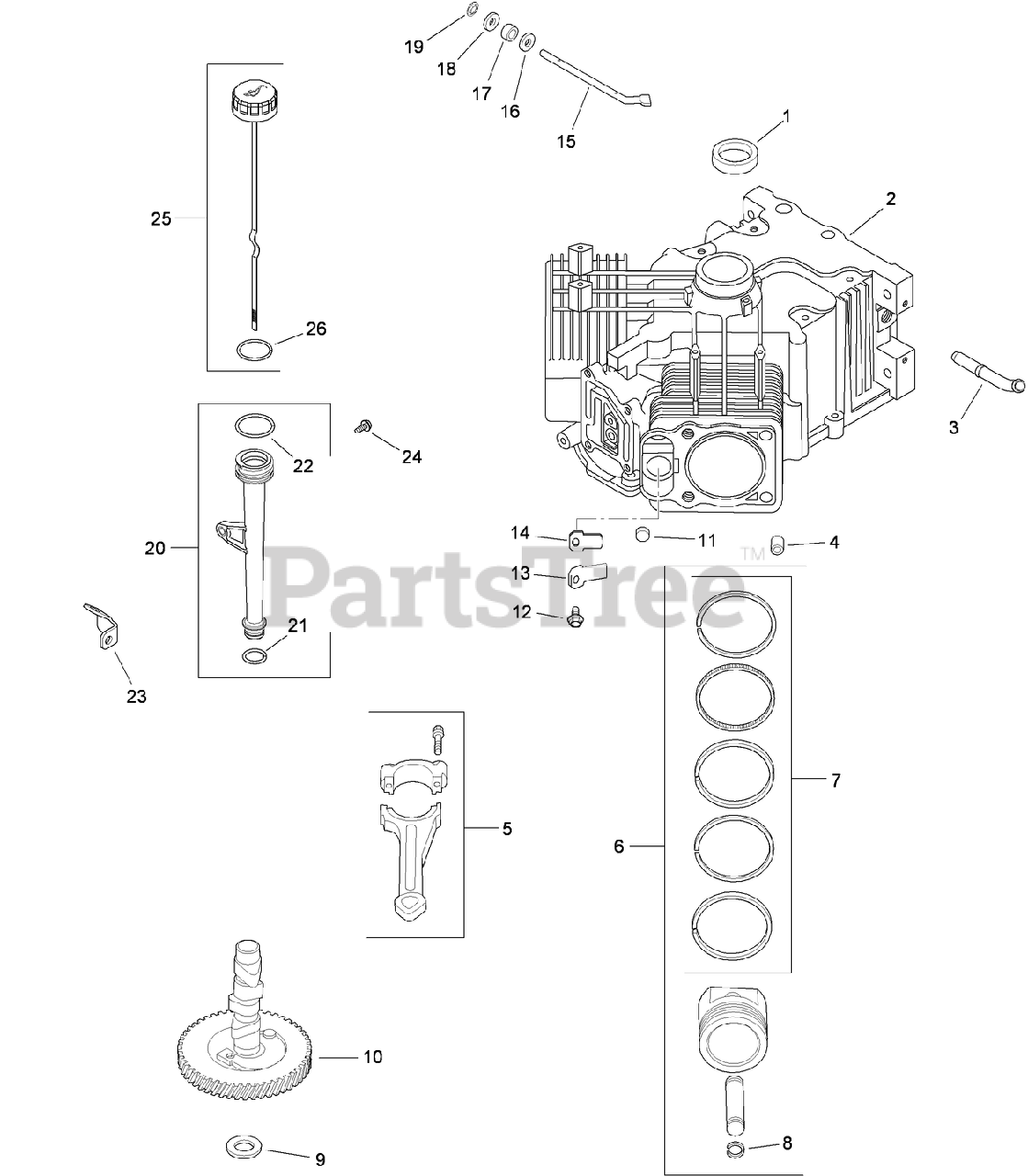

CRANKCASE ASSEMBLY KOHLER CV730-3118 Parts Diagram

  • Title

1

Kohler 24 032 01-S

SEAL-OIL
(Superseded to 24 032 19-S)

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, Qty 20+

0

2

Kohler 24 522 364

SHORT BLOCK (CV730)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 24 782 23

MINI BLOCK (CV25)

Note: Obtain parts from www.kohlerplus.com

$1267.99

$

Usually ships in 2-5 days

0

3

Kohler 24 294 13-S

Fitting

Note: Obtain parts from www.kohlerplus.com

$11.99

$

Usually ships in 2-5 days

0

4

Kohler 24 380 16-S

PIN-LOCATING

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

5

Kohler 24 067 16-S

ROD-CONNECTING (STD)
(Superseded to 25 067 04-S)

Note: Obtain parts from www.kohlerplus.com

$59.99

$

In Stock, only 4 left!

0

5

Kohler 24 067 17-S

ROD-CONNECTING (.25)
(Superseded to 25 067 05-S)

Note: Obtain parts from www.kohlerplus.com

$59.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 08-S

Piston and Ring Set (STD) (INCLUDES 7, 8)
(Superseded to 25 874 13-S)

Note: Obtain parts from www.kohlerplus.com

$270.99

$

In Stock, only 2 left!

0

6

Kohler 24 874 16-S

Piston and Ring Set (.08)
(Superseded to 25 874 07-S)

Note: Obtain parts from www.kohlerplus.com

$261.99

$

Usually ships in 2-5 days

0

6

Kohler 24 874 20-S

Piston and Ring Set (.25)
(Superseded to 25 874 16-S)

Note: Obtain parts from www.kohlerplus.com

$261.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 21-S

Piston and Ring Set (.50)
(Superseded to 25 874 17-S)

Note: Obtain parts from www.kohlerplus.com

$261.99

$

Usually ships in 2-5 days

0

7

Kohler 24 108 05-S

Ring Set (.25)
(Superseded to 24 108 15-S)

Note: Obtain parts from www.kohlerplus.com

$103.99

$

In Stock, only 3 left!

0

7

Kohler 24 108 06-S

Ring Set (.25)
(Superseded to 24 108 16-S)

Note: Obtain parts from www.kohlerplus.com

$103.99

$

In Stock, only 2 left!

0

7

Kohler 24 108 07-S

Ring Set (.50)
(Superseded to 24 108 17-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

8

Kohler 24 018 01-S

RETAINER-PIN, PISTON

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 7

0

9

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

9

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

9

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

9

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

9

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 012 16-S

Camshaft

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 52 139 09-S

PLUG-CUP

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 2 left!

0

12

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

13

Kohler 24 018 04-S

RETAINER-REED, BREATHER

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

14

Kohler 24 402 05-S

Reed-Breather
(Superseded to 24 402 07-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 8

0

15

Kohler 24 144 38-S

SHAFT-CROSS, GOVERNOR
(Superseded to 24 144 39-S)

Note: Obtain parts from www.kohlerplus.com

$41.99

$

Usually ships in 2-5 days

0

16

Kohler 24 468 15-S

WASHER-FLAT (11/32)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

17

Kohler 28 032 09-S

SEAL-CROSS SHAFT, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 6

0

18

Kohler M-931010-S

WASHER-FLAT (9MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

19

Kohler 24 018 09-S

RETAINER-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 12 123 04-S

OIL FILL TUBE KIT (INCLUDES 21, 22)
(Superseded to 25 123 07-S)

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, only 1 left!

0

21

Kohler 12 153 01-S

O-RING (LOWER OIL FILL TUBE)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 16

0

22

Kohler 12 153 02-S

O-RING (UPPER OIL FILL TUBE)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

23

Kohler 24 126 19-S

BRACKET-TUBE, OIL FILL
(Superseded to 24 126 246-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

24

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

25

Kohler 24 038 04-S

Dipstick ASM (INCLUDES 26)

Note: Obtain parts from www.kohlerplus.com

$19.99

$

In Stock, only 1 left!

0

26

Kohler 25 153 02-S

O-RING (DIPSTICK)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

Kohler 24 755 158-S

GASKET SET (25/27, 730/740)
(Superseded to 24 755 394-S)

Note: Obtain parts from www.kohlerplus.com

$208.99

$

In Stock, only 2 left!

0

Kohler 24 755 158-S

GASKET SET (25/27, 730/740)
(Superseded to 24 755 394-S)

Note: Not illustrated

$208.99

$

In Stock, only 2 left!
