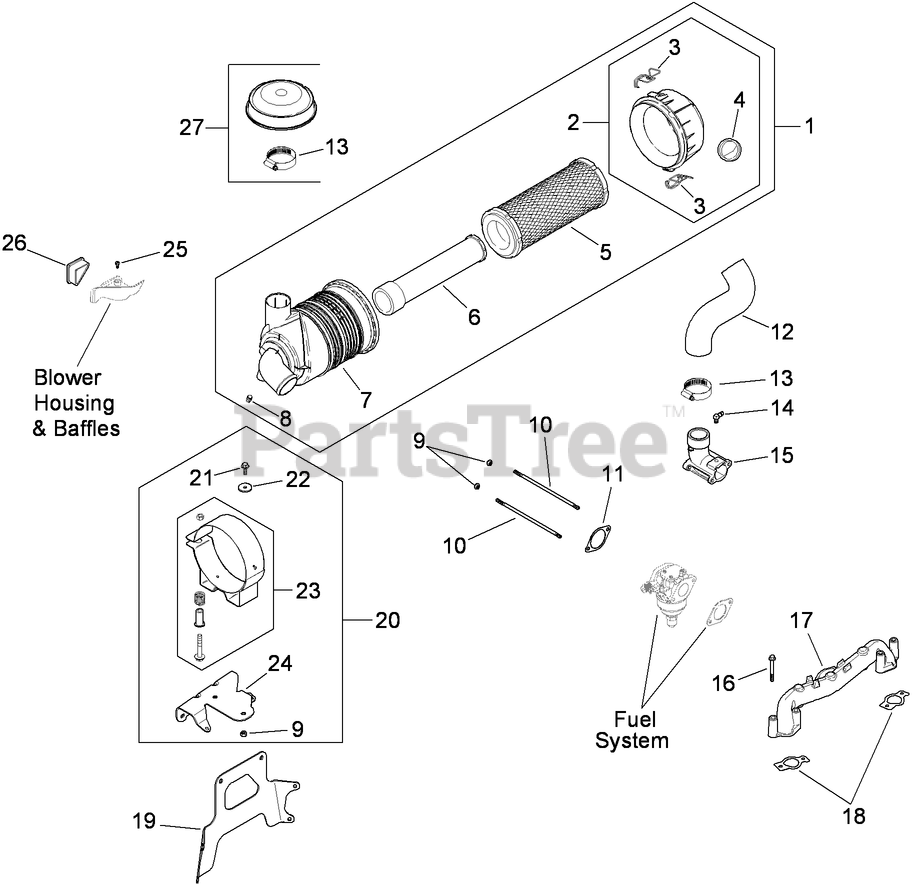

74923 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CV730-3118 Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CV730-3118 Parts Diagram

  • Title

1

Kohler 25 048 11-S

CLEANER-CANISTER, AIR (INCLUDES 2-8)
(Superseded to 25 048 17-S)

Note: Obtain parts from www.kohlerplus.com

$143.99

$

Usually ships in 2-5 days

0

2

Kohler 25 096 06-S

AIR CLEANER COVER ASM (INCLUDES 3,4)

Note: Obtain parts from www.kohlerplus.com

$87.99

$

In Stock, only 1 left!

0

3

Kohler 25 154 05-S

Clip
(Superseded to 62 154 07-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 12

0

4

Kohler 24 462 07-S

Valve-Ejector, Dust

Note: Obtain parts from www.kohlerplus.com

$21.99

$

In Stock, only 3 left!

0

5

Kohler 25 083 01-S

Element-Air Filter, Primary

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 20+

0

6

Kohler 25 083 04-S

Element-Air Filter, Safety

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 20+

0

7

Kohler 25 081 01-S

Housing-Air Cleaner, Heavy Duty

Note: Obtain parts from www.kohlerplus.com

$140.99

$

In Stock, only 1 left!

0

8

Kohler 25 139 20-S

Plug-Pipe

Note: Obtain parts from www.kohlerplus.com

$8.99

$

Usually ships in 2-5 days

0

9

Kohler M-647060-S

Nut-Lock (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

10

Kohler 24 072 10-S

Stud M6x1.0x180

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, Qty 13

0

11

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 8

0

12

Kohler 24 326 72-S

HOSE-CLEANER, AIR

Note: Obtain parts from www.kohlerplus.com

$20.99

$

Usually ships in 2-5 days

0

13

Kohler 25 237 21-S

Clamp-Hose

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 1 left!

0

14

Kohler 25 155 38-S

Connector-Hose

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, only 3 left!

0

15

Kohler 24 054 16-S

ELBOW-CLEANER, AIR

Note: Obtain parts from www.kohlerplus.com

$140.99

$

Usually ships in 2-5 days

0

16

Kohler 25 086 84-S

Screw-HF (M6x1.0x55)
(Superseded to 25 086 766-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

17

Kohler 24 164 06-S

Manifold-Intake

Note: Obtain parts from www.kohlerplus.com

$222.99

$

Usually ships in 2-5 days

0

18

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 7

0

19

Kohler 24 126 105-S

Bracket-support, main
(Superseded to 24 126 227-S)

Note: Obtain parts from www.kohlerplus.com

$277.99

$

Usually ships in 2-5 days

0

20

Kohler 24 126 166-S

AIR CLEANER BRACKET ASM (INCLUDES 9, 21-24)
(Superseded to 24 126 186-S)

Note: Obtain parts from www.kohlerplus.com

$176.99

$

Usually ships in 2-5 days

0

21

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

22

Kohler X-25-73-S

Washer-Flat (1/4)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

23

Kohler 25 126 02-S

Air Cleaner Bracket ASM
(Superseded to 24 126 191-S)

Note: Obtain parts from www.kohlerplus.com

$62.99

$

Usually ships in 2-5 days

0

24

Kohler 24 126 165-S

BRACKET-MOUNTING, AIR CLEANER
(Superseded to 24 126 184-S)

Note: Obtain parts from www.kohlerplus.com

$92.99

$

Usually ships in 2-5 days

0

25

Kohler 25 086 91-S

Screw-WSH HD Tap (8-18X.50)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

26

Kohler 24 096 17-S

COVER-HOUSING, BLOWER
(Superseded to 24 096 160-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 2 left!

0

27

Kohler 25 324 02-S

Hood-Cleaner, Air (INCLUDES 13)
(Superseded to 25 324 04-S)

Note: Obtain parts from www.kohlerplus.com

$49.99

$

In Stock, only 1 left!

0

Kohler 25 454 04-S

Tie-Wire

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

Kohler 25 454 04-S

Tie-Wire

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days
