74921 - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) STARTER ASSEMBLY (S/N FH680-C00798 AND AFTER) KAWASAKI FH680V-BS39 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

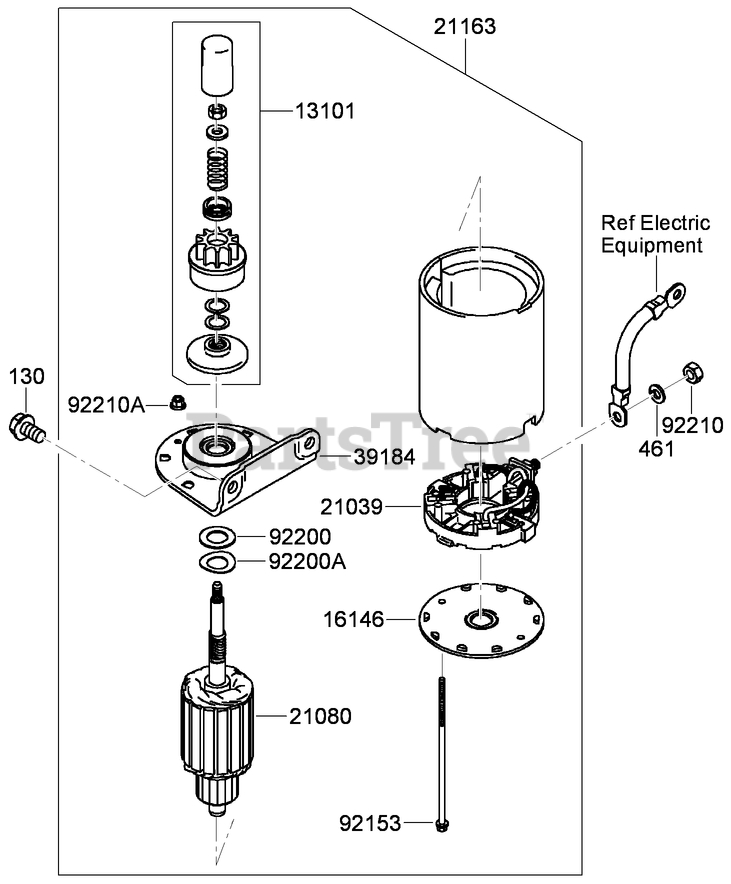

STARTER ASSEMBLY (S/N FH680-C00798 AND AFTER) KAWASAKI FH680V-BS39 Parts Diagram

  • Title
130

Kawasaki 130AA0814

BOLT-FLANGED (8X14)
(Superseded to 130B0814)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

461

Kawasaki 461DA0600

WASHER-SPRING (6MM)
(Superseded to 92022-1580)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 6

0

13101

Kawasaki 13101-7010

GEAR ASM

Note: Obtain parts from www.kawpowerepc.com

$118.99

$

In Stock, only 1 left!

0

16146

Kawasaki 16146-7013

COVER ASM

Note: Obtain parts from www.kawpowerepc.com

$9.99

$

Usually ships in 2-5 days

0

21039

Kawasaki 21039-7002

BRUSH

Note: Obtain parts from www.kawpowerepc.com

$66.99

$

Usually ships in 2-5 days

0

21080

Kawasaki 21080-7007

ARMATURE

Note: Obtain parts from www.kawpowerepc.com

$229.99

$

Usually ships in 2-5 days

0

21163

Kawasaki 21163-7031

STARTER-ELECTRIC

Note: Obtain parts from www.kawpowerepc.com

$253.99

$

Usually ships in 2-5 days

0

39184

Kawasaki 39184-7009

BRACKET ASM

Note: Obtain parts from www.kawpowerepc.com

$33.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-7034

BOLT

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-7023

WASHER

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

Usually ships in 2-5 days

0

92200A

Kawasaki 92200-7024

WASHER

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7034

NUT

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

92210A

Kawasaki 92210-7037

NUT

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

Usually ships in 2-5 days

0
