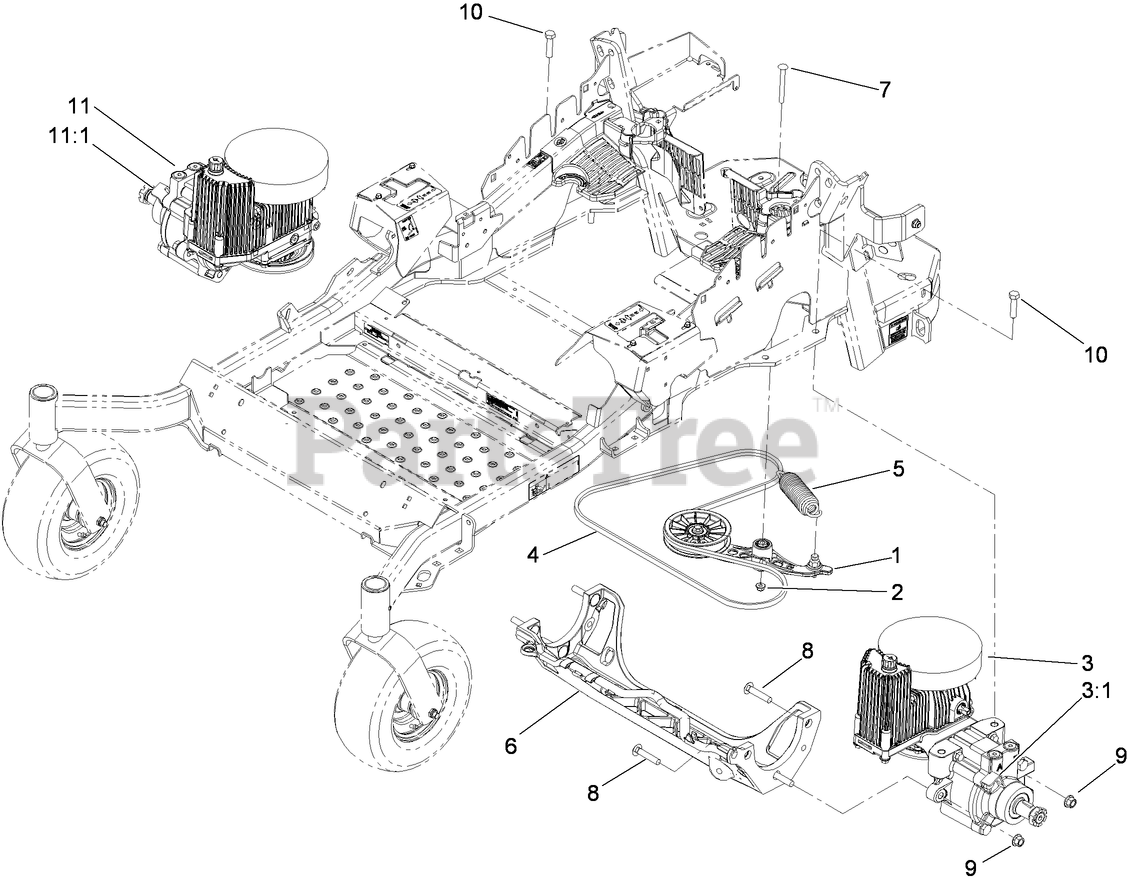

74921 - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) HYDRAULIC PUMP, IDLER AND BELT ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

HYDRAULIC PUMP, IDLER AND BELT ASSEMBLY Parts Diagram

  • Title
1

Toro 116-1185

PUMP IDLER ASM
(Superseded to 116-1255)

$217.99

$

In Stock, only 4 left!

0

2

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 109-8080

HYDRO-LH, 12CC (W/CHECK)

$

$

Not available

3:1

Toro 117-0377

BRACKET-ANCHOR, CABLE
(Superseded to 116-1758)

$14.99

$

Usually ships in 3-6 days

0

3:3

Toro 116-0233

FAN KIT

Note: Not illustrated

$

$

Not available

3:4

Toro 116-0234

PULLEY KIT

Note: Not illustrated

$172.99

$

Usually ships in 3-6 days

0

3:5

Toro 116-0235

HANDLE-BYPASS VALVE, HYDRO

Note: Not illustrated

$15.99

$

Usually ships in 3-6 days

0

3:6

Toro 116-0236

DIPSTICK-HYDRO W/GASKET

Note: Not illustrated

$50.99

$

In Stock, only 4 left!

0

3:7

Toro 116-0237

GASKET-DIPSTICK, HYDRO

Note: Not illustrated

$14.99

$

In Stock, only 2 left!

0

3:8

Toro 117-0390

FILTER-HYDRO

Note: Not illustrated

$56.99

$

In Stock, only 3 left!

0

4

Toro 109-8069

BELT-V
(Superseded to 126-9835)

$45.99

$

In Stock, Qty 20+

0

5

Toro 116-0133

EXTENSION-SPRING
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

6

Toro 109-9375

CRADLE-HYDRO
(Superseded to 116-7558)

$206.99

$

Usually ships in 3-6 days

0

7

Toro 3231-41

BOLT-CARRIAGE

$5.49

$

Usually ships in 3-6 days

0

8

Toro 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

9

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

11

Toro 109-8081

HYDRO-RH, 12CC (W/CHECK)

$

$

Not available

11:1

Toro 117-0377

BRACKET-ANCHOR, CABLE
(Superseded to 116-1758)

$14.99

$

Usually ships in 3-6 days

0

11:3

Toro 116-0233

FAN KIT

Note: Not illustrated

$

$

Not available

11:4

Toro 116-0234

PULLEY KIT

Note: Not illustrated

$172.99

$

Usually ships in 3-6 days

0

11:5

Toro 116-0235

HANDLE-BYPASS VALVE, HYDRO

Note: Not illustrated

$15.99

$

Usually ships in 3-6 days

0

11:6

Toro 116-0236

DIPSTICK-HYDRO W/GASKET

Note: Not illustrated

$50.99

$

In Stock, only 4 left!

0

11:7

Toro 116-0237

GASKET-DIPSTICK, HYDRO

Note: Not illustrated

$14.99

$

In Stock, only 2 left!

0

11:8

Toro 117-0390

FILTER-HYDRO

Note: Not illustrated

$56.99

$

In Stock, only 3 left!

0
