74921 - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) CARBURETOR ASSEMBLY KAWASAKI FH680V-BS39 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

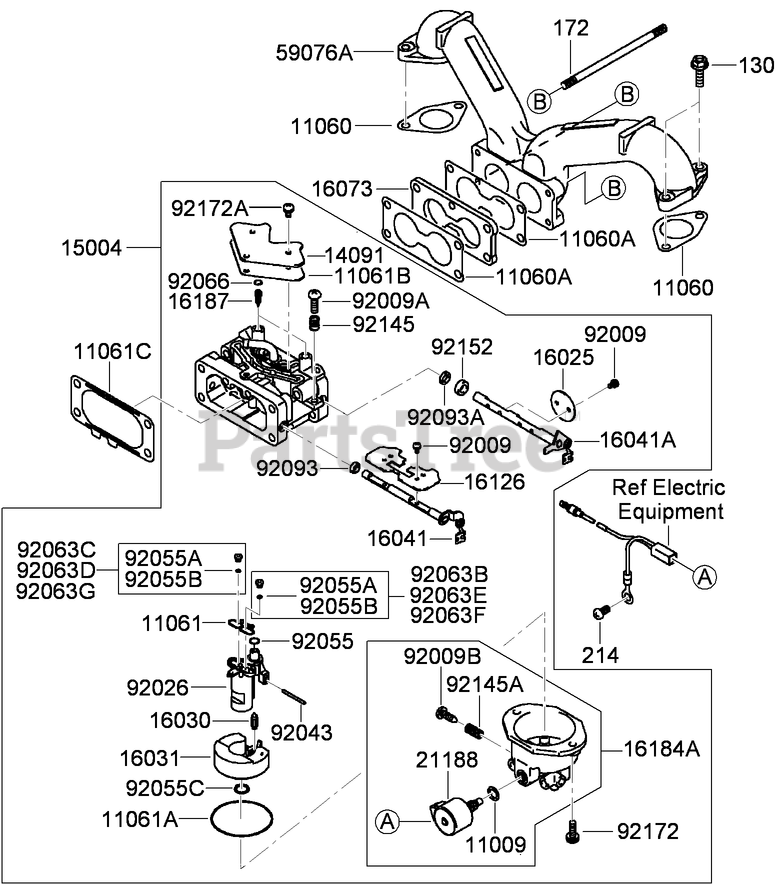

CARBURETOR ASSEMBLY KAWASAKI FH680V-BS39 Parts Diagram

  • Title

130

Kawasaki 130AA0620

BOLT-FLANGED (6X20)
(Superseded to 130B0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

172

Kawasaki 172BA06105

BOLT-STUD (6X105)
(Superseded to 172G06105)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, only 2 left!

0

214

Kawasaki 214AA0510

SCREW-PAN +-(5X10)
(Superseded to 214B0510)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 13

0

11009

Kawasaki 11009-2056

GASKET
(Superseded to 317472-6145A)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 15

0

11060

Kawasaki 11060-7011

GASKET-MANIFOLD

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7024

Gasket-Carburetor

Note: Obtain parts from www.kawpowerepc.com

$11.99

$

In Stock, Qty 6

0

11061

Kawasaki 11061-7037

GASKET

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7038

GASKET

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-7039

GASKET

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 6

0

11061C

Kawasaki 11061-7043

GASKET

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 8

0

14091

Kawasaki 14091-7031

COVER

Note: Obtain parts from www.kawpowerepc.com

$14.99

$

Usually ships in 2-5 days

0

15004

Kawasaki 15004-7029

CARBURETOR ASM
(Superseded to 15004-0760)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

16025

Kawasaki 16025-7003

Valve-Throttle

Note: Obtain parts from www.kawpowerepc.com

$25.99

$

Usually ships in 2-5 days

0

16030

Kawasaki 16030-7004

VALVE-FLOAT

Note: Obtain parts from www.kawpowerepc.com

$25.99

$

In Stock, Qty 16

0

16031

Kawasaki 16031-7003

FLOAT

Note: Obtain parts from www.kawpowerepc.com

$44.99

$

Usually ships in 2-5 days

0

16041

Kawasaki 16041-7021

SHAFT-CARBURETOR
(Superseded to 16041-0028)

Note: Obtain parts from www.kawpowerepc.com

$51.99

$

In Stock, only 2 left!

0

16041A

Kawasaki 16041-7024

SHAFT-CARBURETOR
(Superseded to 16041-0033)

Note: Obtain parts from www.kawpowerepc.com

$46.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-7005

Insulator

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, only 4 left!

0

16126

Kawasaki 16126-7015

VALVE

Note: Obtain parts from www.kawpowerepc.com

$15.99

$

Usually ships in 2-5 days

0

16184A

Kawasaki 16184-7022

FLOAT CHAMBER ASM

Note: Obtain parts from www.kawpowerepc.com

$368.99

$

Usually ships in 2-5 days

0

16187

Kawasaki 16187-7002

Needle-Jet

Note: Obtain parts from www.kawpowerepc.com

$13.99

$

In Stock, only 2 left!

0

21188

Kawasaki 21188-7003

SOLENOID

Note: Obtain parts from www.kawpowerepc.com

$95.99

$

In Stock, Qty 14

0

59076A

Kawasaki 59076-7011

MANIFOLD-INTAKE
(Superseded to 59076-0026)

Note: Obtain parts from www.kawpowerepc.com

$125.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-7003

Screw

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92009A

Kawasaki 92009-7004

Screw

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 4 left!

0

92009B

Kawasaki 92009-7006

Screw-Drain

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 3 left!

0

92026

Kawasaki 92026-7011

SPACER

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

In Stock, only 3 left!

0

92043

Kawasaki 92043-7014

PIN

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

Usually ships in 2-5 days

0

92055

Kawasaki 92055-7012

O-RING
(Superseded to 92055-7024)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92055A

Kawasaki 92055-7013

O-RING

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92055B

Kawasaki 92055-7013

O-RING

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92055C

Kawasaki 92055-7016

O-RING

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 10

0

92063B

Kawasaki 92063-7069

JET-MAIN, No.108

Note: Obtain parts from www.kawpowerepc.com

$30.99

$

Usually ships in 2-5 days

0

92063C

Kawasaki 92063-7075

JET-MAIN, No.101 (3280 FT)

Note: Obtain parts from www.kawpowerepc.com

$21.99

$

Usually ships in 2-5 days

0

92063D

Kawasaki 92063-7076

JET-MAIN, No.098 (6560 FT)

Note: Obtain parts from www.kawpowerepc.com

$21.99

$

In Stock, only 2 left!

0

92063E

Kawasaki 92063-7077

JET-MAIN, No.105 (3280 FT)

Note: Obtain parts from www.kawpowerepc.com

$21.99

$

In Stock, only 2 left!

0

92063F

Kawasaki 92063-7078

JET-MAIN, No.102 (6560 FT)

Note: Obtain parts from www.kawpowerepc.com

$21.99

$

In Stock, only 1 left!

0

92063G

Kawasaki 92063-7082

JET-MAIN (No.104)

Note: Obtain parts from www.kawpowerepc.com

$30.99

$

Usually ships in 2-5 days

0

92066

Kawasaki 92066-7009

PLUG-EXPANSION

Note: Obtain parts from www.kawpowerepc.com

$7.99

$

In Stock, Qty 12

0

92093

Kawasaki 92093-7001

Seal (I D 5.9)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 12

0

92093A

Kawasaki 92093-7002

Seal (I D 6.9)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 7

0

92145

Kawasaki 92145-7010

Spring

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

Usually ships in 2-5 days

0

92145A

Kawasaki 92145-7011

Spring

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

Usually ships in 2-5 days

0

92152

Kawasaki 92152-7005

COLLAR

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

Usually ships in 2-5 days

0

92172

Kawasaki 92172-7005

SCREW (M5 )

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 2 left!

0

92172A

Kawasaki 92172-7006

SCREW (M4 )

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 4 left!

0
