74915 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 400000000 - 402099999) CONSOLE AND CONTROL PANEL ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

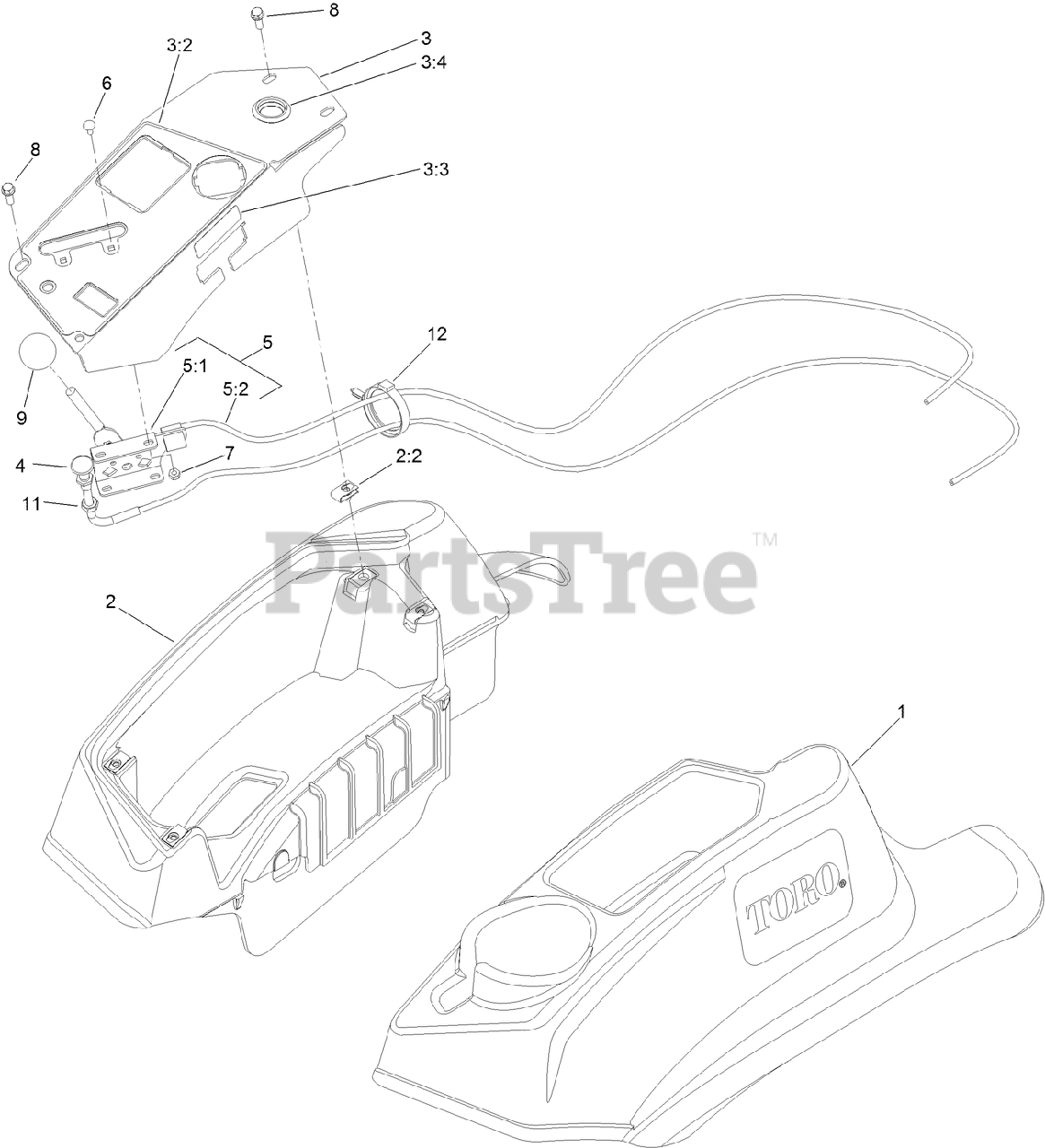

CONSOLE AND CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 119-2602

CONSOLE-LH

$142.99

$

Usually ships in 3-6 days

0

2

Toro 119-2603

RH CONSOLE ASM

$142.99

$

Usually ships in 3-6 days

0

2:2

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

3

Toro 119-6663

CONTROL PANEL ASM

$159.99

$

Usually ships in 3-6 days

0

3:2

Toro 121-7551

DECAL-CONTROL PANEL

$31.99

$

Usually ships in 3-6 days

0

3:3

Toro 114-4466

DECAL-FUSES

$6.49

$

In Stock, only 1 left!

0

3:4

Toro 116-1875

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

4

Toro 115-2756

CHOKE CONTROL ASM

$59.99

$

In Stock, only 1 left!

0

5

Toro 115-2752

THROTTLE CONTROL ASM

$93.99

$

In Stock, only 3 left!

0

5:1

Toro 112-2334

LEVER-THROTTLE

$82.99

$

Usually ships in 3-6 days

0

5:2

Toro 115-3868

CABLE-THROTTLE
(Superseded to 115-2752)

$93.99

$

In Stock, only 3 left!

0

6

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

9

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 6

0

11

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

12

Toro 117-7817

CLAMP-HARNESS

$7.99

$

Usually ships in 3-6 days

0
