74915 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 316000001 - 316999999) (2016) FUEL TANK MOUNTING ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

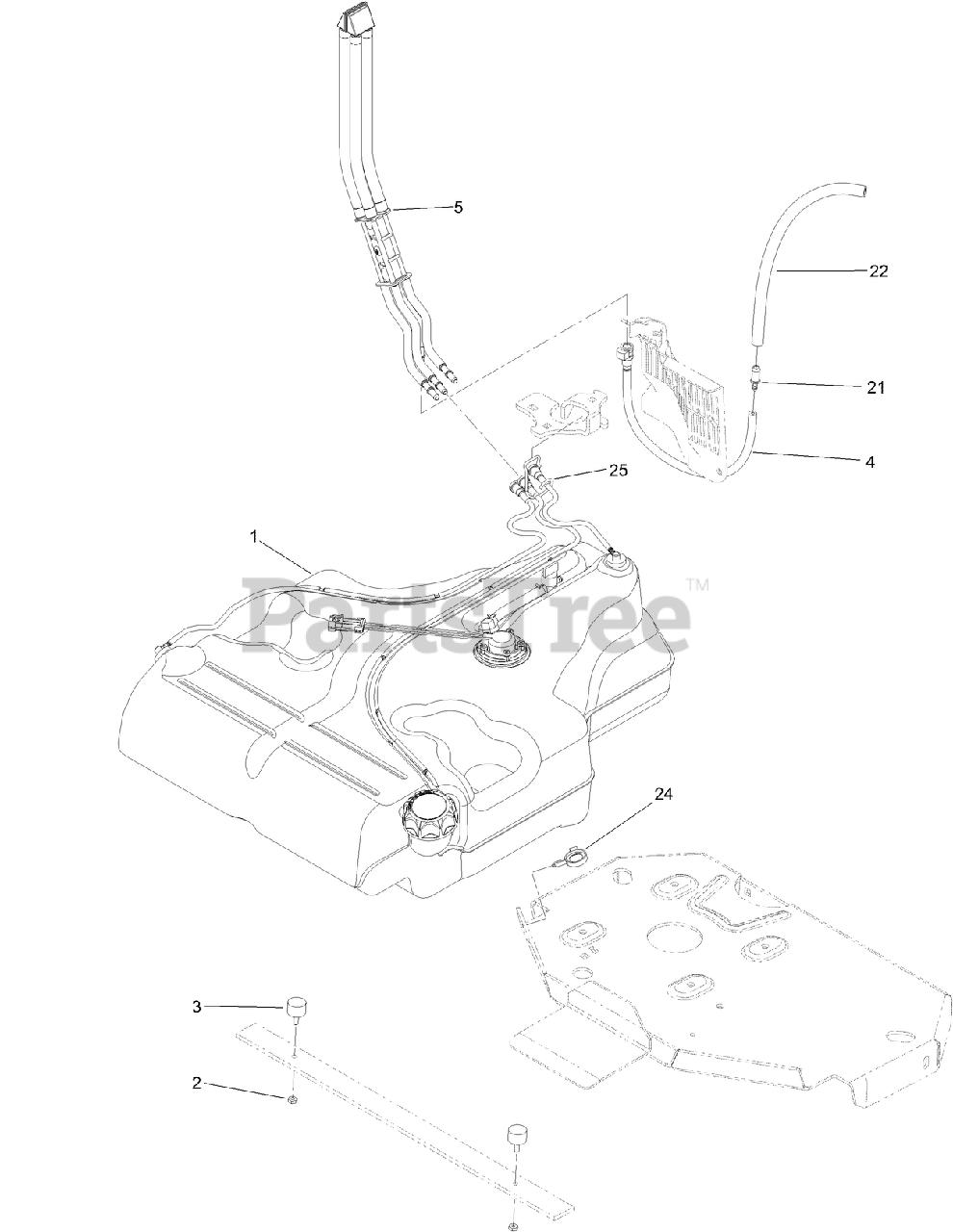

FUEL TANK MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 116-3979

FUEL TANK ASM
(Superseded to 135-0643)

$

$

Not available

2

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Toro 116-6380

BUMPER-RUBBER (W/ STUD)
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

4

Toro 116-3977

HOSE ASM

$31.99

$

Usually ships in 3-6 days

0

5

Toro 109-9491

FUEL MANIFOLD VENT ASM
(Superseded to 135-7569)

$117.99

$

Usually ships in 3-6 days

0

21

Toro 98-2952

FITTING-STRAIGHT

$9.49

$

Usually ships in 3-6 days

0

22

Toro 116-5087

HOSE-FUEL

$19.99

$

Usually ships in 3-6 days

0

24

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

25

Toro 116-6005

RETAINER-LINE, VAPOR

$5.49

$

Usually ships in 3-6 days

0
