74915 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) FENDER, CONSOLE AND CONTROL ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

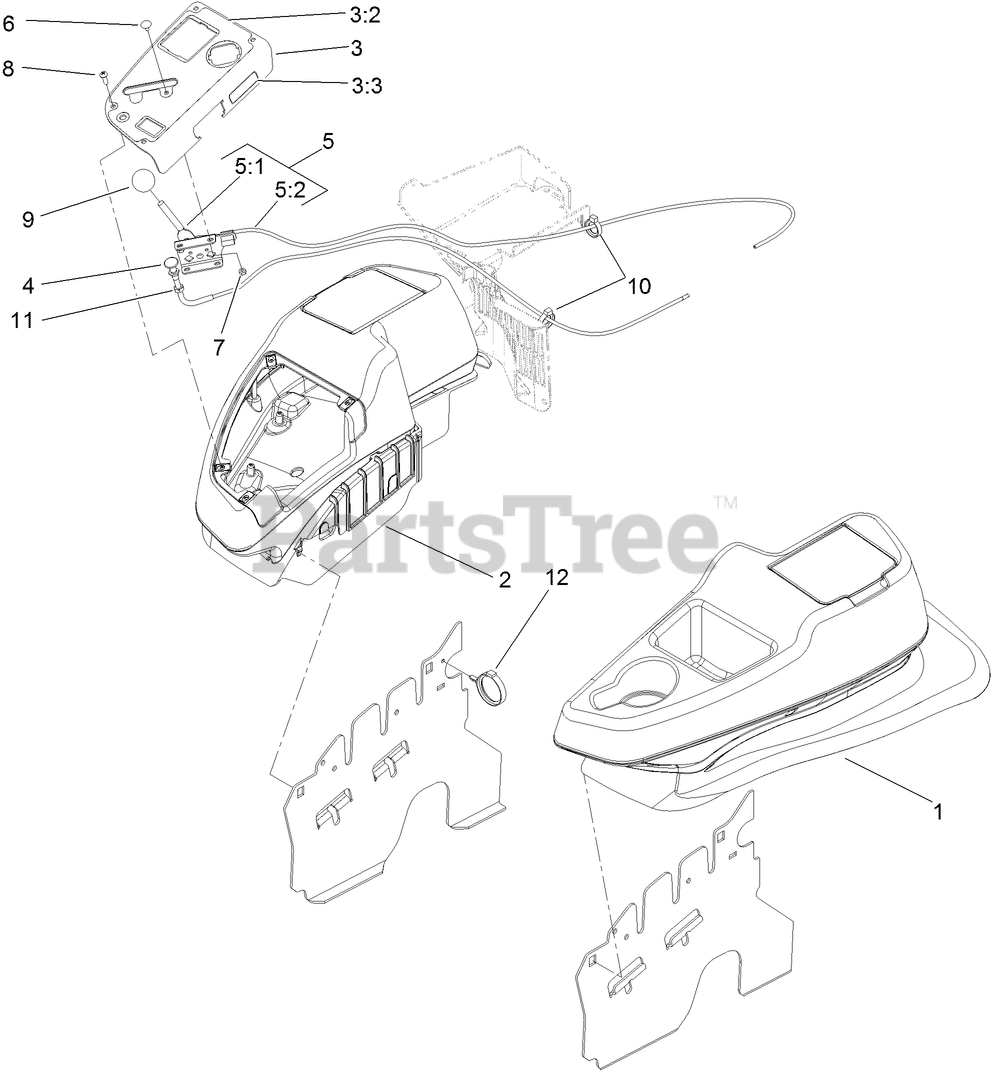

FENDER, CONSOLE AND CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 115-7401

LH CONSOLE ASM

$357.99

$

Usually ships in 3-6 days

0

2

Toro 115-7400

RH CONSOLE ASM

$357.99

$

Usually ships in 3-6 days

0

3

Toro 114-9836

CONTROL PANEL ASM

$125.99

$

Usually ships in 3-6 days

0

3:2

Toro 120-5897

DECAL-PANEL, CONTROL

$41.99

$

Usually ships in 3-6 days

0

3:3

Toro 114-4466

DECAL-FUSES

$6.49

$

In Stock, only 1 left!

0

4

Toro 115-2756

CHOKE CONTROL ASM

$59.99

$

In Stock, only 1 left!

0

5

Toro 115-2752

THROTTLE CONTROL ASM

$93.99

$

In Stock, only 3 left!

0

5:1

Toro 112-2334

LEVER-THROTTLE

$82.99

$

Usually ships in 3-6 days

0

5:2

Toro 115-3868

CABLE-THROTTLE
(Superseded to 115-2752)

$93.99

$

In Stock, only 3 left!

0

6

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

9

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 6

0

10

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

11

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

12

Toro 117-7817

CLAMP-HARNESS

$7.99

$

Usually ships in 3-6 days

0
