74915 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

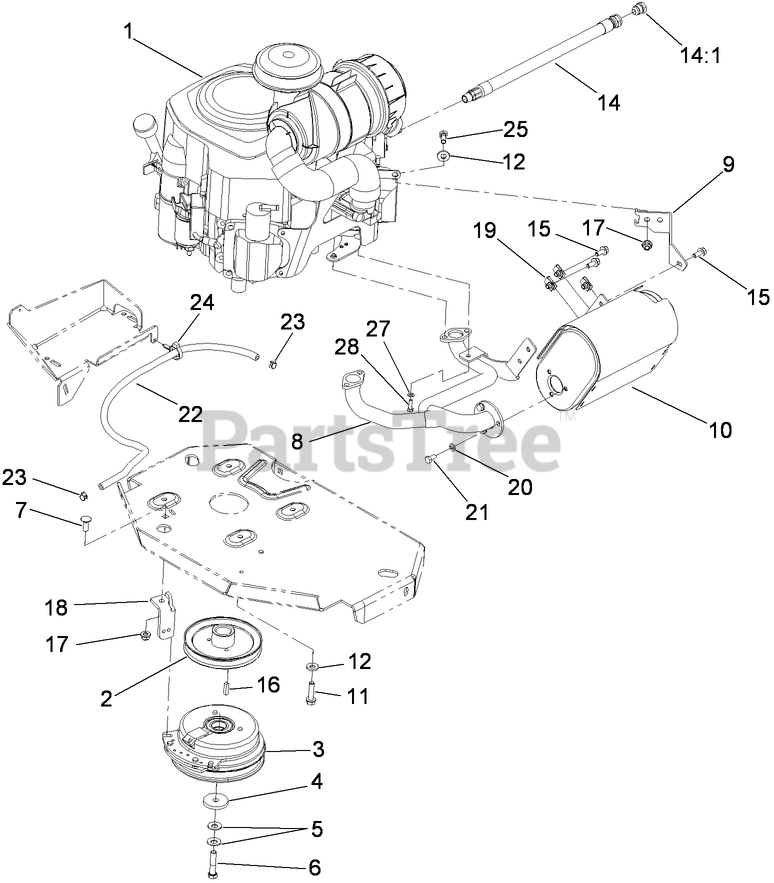

ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

  • Title
1

ENGINE-KOHLER, CV740

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, CV740

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, Qty 19

0

3

Toro 109-9282

CLUTCH
(Superseded to 116-1620)

$359.99

$

In Stock, Qty 9

0

4

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 6

0

5

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Toro 109-9762

SCREW-HH W/LOCTITE

$5.49

$

In Stock, Qty 9

0

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

8

Toro 116-0807

MANIFOLD-EXHAUST
(Superseded to 126-8798)

$392.99

$

In Stock, only 1 left!

0

9

Toro 109-9230

BRACKET-MUFFLER
(Superseded to 116-1586)

$33.99

$

Usually ships in 3-6 days

0

10

Toro 109-9280

MUFFLER-ENGINE

$281.99

$

In Stock, only 1 left!

0

11

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

12

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Toro 116-0013

OIL DRAIN HOSE ASM
(Superseded to 116-5316)

$54.99

$

In Stock, Qty 14

0

14:1

$8.49

$

Usually ships in 3-6 days

0

15

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

16

$2.49

$

In Stock, Qty 20+

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 109-8138-01

ANCHOR-CLUTCH

$51.99

$

Usually ships in 3-6 days

0

19

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

22

Toro 109-0286

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

23

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

24

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

25

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

27

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

28

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10
