74914 (ZX 5400) - Toro 54" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) SEAT ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

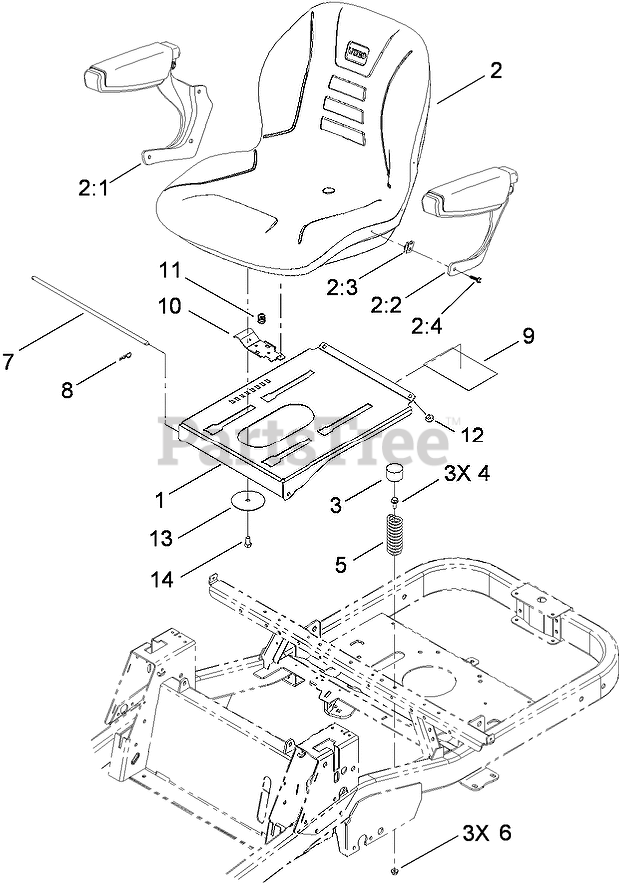

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5320-03

PAN-SEAT

$172.99

$

Usually ships in 3-6 days

0

2

Toro 115-5053

18 INCH SEAT ASM

$846.99

$

Usually ships in 3-6 days

0

2:1

Toro 117-5346

Armrest-RH

$

$

Currently unavailable

2:2

Toro 117-5347

Armrest-LH

$

$

Currently unavailable

2:3

Toro 117-5348

Nut-Speed

$

$

Not available

2:4

Toro 117-5349

Screw-Tapping

$

$

Not available

3

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

4

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

5

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Toro 115-4966

ROD-STOP

$19.99

$

Usually ships in 3-6 days

0

8

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

9

Toro 115-9630

DECAL-MAINTENANCE

$9.49

$

Usually ships in 3-6 days

0

10

Toro 115-9623

LATCH-SEAT

$19.99

$

In Stock, only 1 left!

0

11

Toro 115-9624

SPRING-COMPRESSION

$1.99

$

In Stock, only 1 left!

0

12

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

13

Toro 117-5307

WASHER-SEAT

$7.99

$

Usually ships in 3-6 days

0

14

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0
