74914 (ZX 5400) - Toro 54" Titan Zero-Turn Mower (SN: 290000001 - 290999999) (2009) ENGINE, CLUTCH AND EXHAUST ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

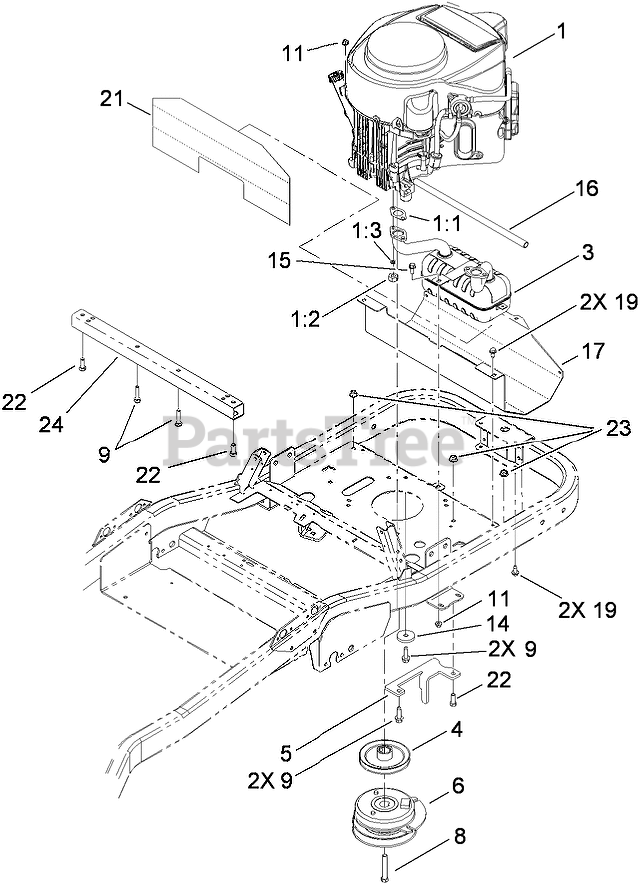

ENGINE, CLUTCH AND EXHAUST ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FS691V-AS50-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FS691V-AS50-R

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Toro 112-9820

GASKET-EXHAUST
(Superseded to 1-653313)

$4.99

$

Usually ships in 3-6 days

0

1:2

Toro 112-9834

NUT

$

$

Not available

1:3

Toro 112-9835

WASHER-LOCK
(Superseded to 115-6626)

$0.99

$

Usually ships in 3-6 days

0

3

Toro 117-1184

MUFFLER-KAWASAKI TWIN
(Superseded to 117-7465)

$283.99

$

Usually ships in 3-6 days

0

4

Toro 115-2568

PULLEY-ENGINE
(Superseded to 125-5576)

$118.99

$

Usually ships in 3-6 days

0

5

Toro 117-7344-03

BRACKET-STOP, PTO

$38.99

$

Usually ships in 3-6 days

0

6

Toro 117-1252

CLUTCH-PTO

$836.99

$

Usually ships in 3-6 days

0

8

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

9

Toro 323-50

BOLT-HH

$1.49

$

In Stock, Qty 17

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

14

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

15

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

16

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

Usually ships in 3-6 days

0

17

Toro 117-5330-03

SHIELD-HEAT

$

$

Not available

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

21

Toro 117-7220

FOIL-HEAT SHIELD

$25.99

$

Usually ships in 3-6 days

0

22

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 117-7335-03

TUBE-STIFFENER

$103.99

$

Usually ships in 3-6 days

0
