74914 (ZX 5400) - Toro 54" Titan Zero-Turn Mower (SN: 290000001 - 290999999) (2009) 54 INCH DECK ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

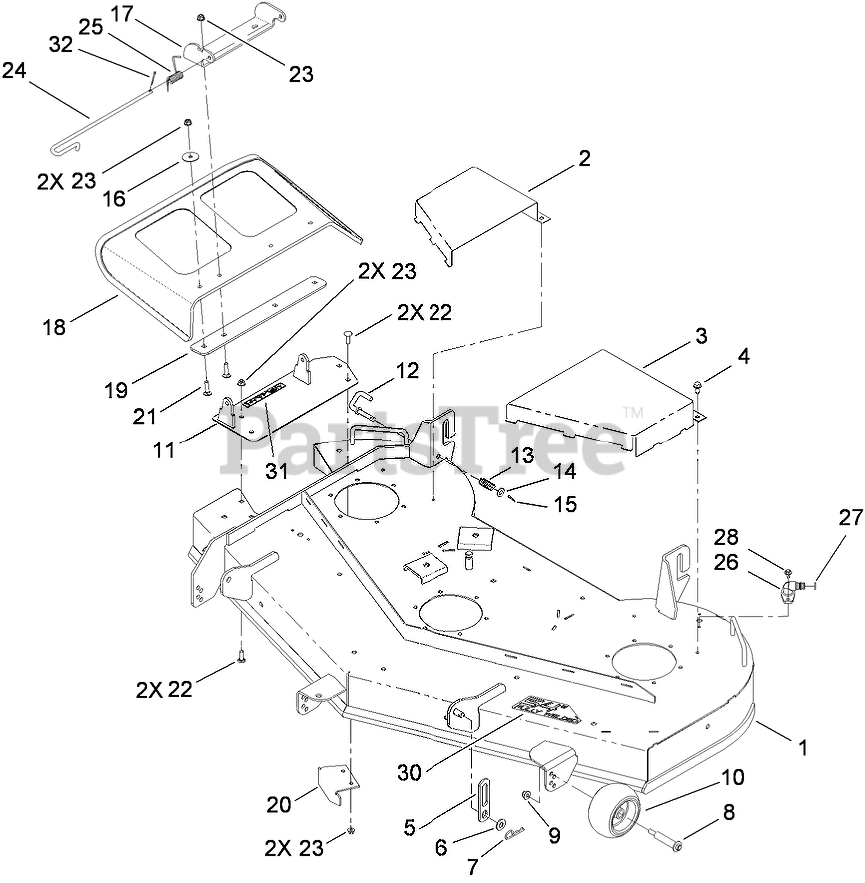

54 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5374

54 INCH DECK ASM

$2604.99

$

Usually ships in 3-6 days

0

2

Toro 115-5031-03

COVER-BELT, RH
(Superseded to 131-4051-05)

$52.99

$

Usually ships in 3-6 days

0

3

Toro 115-5032-03

COVER-BELT, LH
(Superseded to 131-4050-05)

$52.99

$

In Stock, only 1 left!

0

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 115-2622

LINK-LIFT

$9.99

$

In Stock, only 2 left!

0

6

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

8

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

11

Toro 117-1282-03

PLATE-COVER

$116.99

$

Usually ships in 3-6 days

0

12

Toro 115-2470

PIN-LATCH

$15.99

$

Usually ships in 3-6 days

0

13

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

16

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

17

Toro 114-1648-03

BRACKET-DEFLECTOR, UPPER

$60.99

$

Usually ships in 3-6 days

0

18

Toro 117-1270

DEFLECTOR

$78.99

$

In Stock, only 1 left!

0

19

Toro 115-5048-03

PLATE-DEFLECTOR

$44.99

$

Usually ships in 3-6 days

0

20

Toro 115-9653-03

BAFFLE-CUTOFF

$25.99

$

Usually ships in 3-6 days

0

21

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

23

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

24

Toro 109-8854

PIN-CHUTE

$15.99

$

In Stock, only 1 left!

0

25

Toro 115-9641

SPRING-TORSION

$15.99

$

Usually ships in 3-6 days

0

26

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

27

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

28

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

30

Toro 117-5302

DECAL

$18.99

$

Usually ships in 3-6 days

0

31

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

32

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0
