74912 (ZX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) FUEL DELIVERY SYSTEM Parts Diagram

48" Titan Zero-Turn Mower

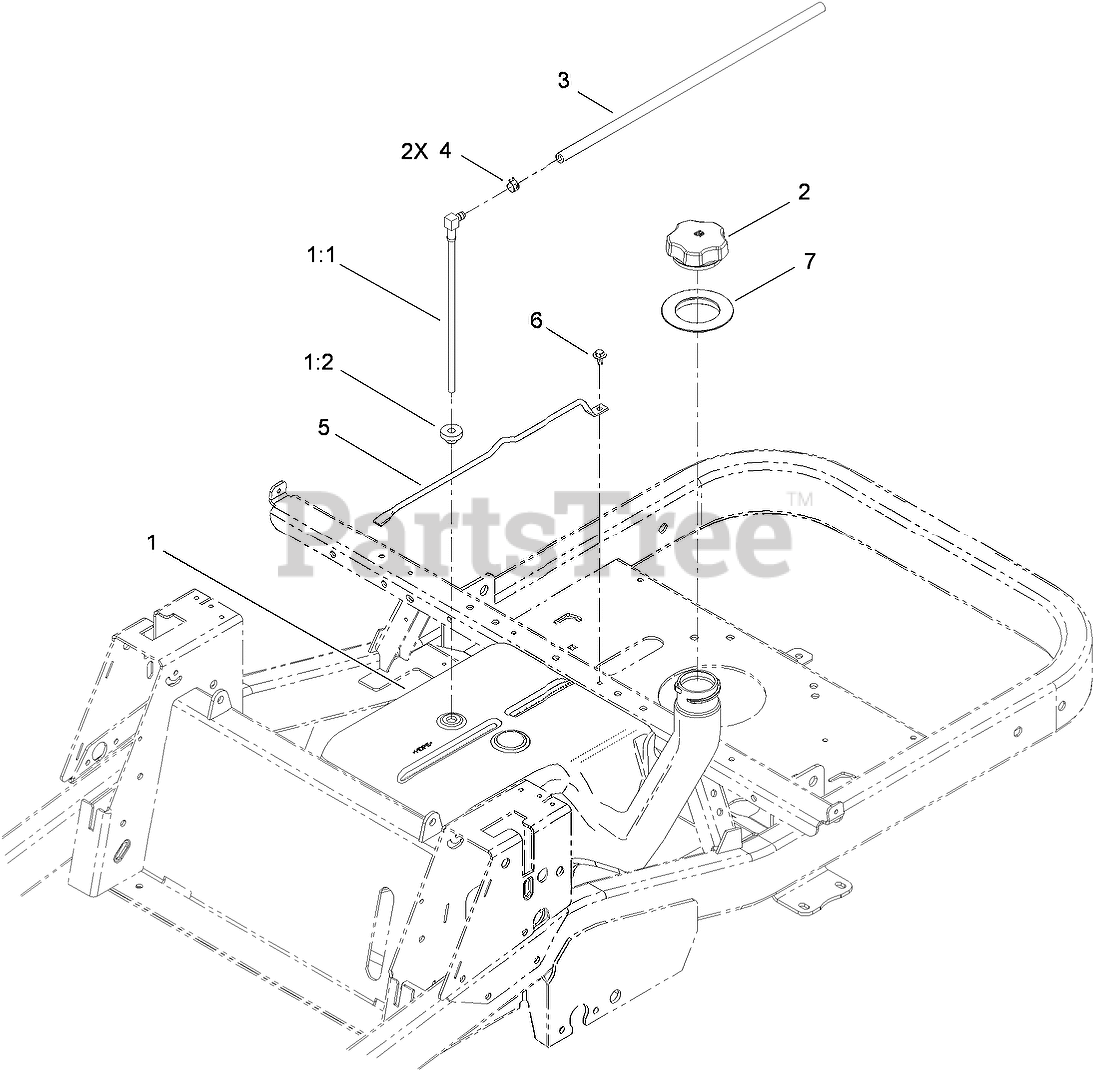

FUEL DELIVERY SYSTEM Parts Diagram

  • Title
1

Toro 115-9620

5 GALLON FUEL TANK ASM

$

$

Not available

1:1

Toro 115-2564

TUBE-DROP
(Superseded to 121-0793)

$11.99

$

In Stock, only 1 left!

0

1:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

2

Toro 115-9601

CAP-FUEL, VENTED

$17.99

$

Usually ships in 3-6 days

0

3

Toro 109-0299

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

4

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

5

Toro 115-2620

ROD-TANK, GAS

$19.99

$

Usually ships in 3-6 days

0

6

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

7

Toro 117-1298

SEAL-TANK

$8.49

$

Usually ships in 3-6 days

0
