74912 (ZX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) ENGINE AND BLADE ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

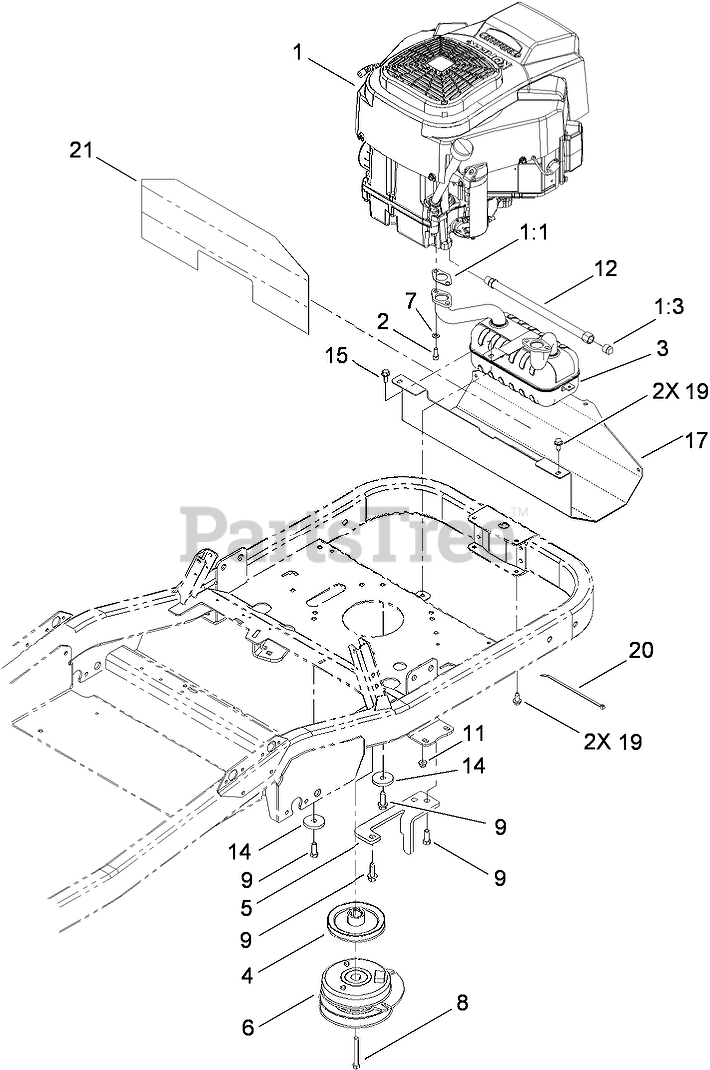

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER, SV820-0016

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, SV820-0016

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Toro 110-6697

GASKET-EXHAUST

$

$

Not available

1:3

Toro 281-2

PLUG-PIPE, SQH

$2.99

$

Usually ships in 3-6 days

0

2

Toro 3274-10

SCREW-HSH

$10.99

$

In Stock, Qty 20+

0

3

Toro 117-7463

MUFFLER-TWIN, KOHLER

$283.99

$

Usually ships in 3-6 days

0

4

Toro 115-2568

PULLEY-ENGINE
(Superseded to 125-5576)

$118.99

$

Usually ships in 3-6 days

0

5

Toro 117-1269-03

BRACKET-STOP, PTO

$34.99

$

Usually ships in 3-6 days

0

6

Toro 117-1252

CLUTCH-PTO

$836.99

$

Usually ships in 3-6 days

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

9

Toro 32144-109

SCREW-TAPTITE

$4.99

$

In Stock, Qty 7

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 117-1261

HOSE-DRAIN, OIL

$29.99

$

In Stock, only 3 left!

0

14

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, Qty 11

0

15

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

17

Toro 117-5330-03

SHIELD-HEAT

$

$

Not available

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

21

Toro 117-7220

FOIL-HEAT SHIELD

$25.99

$

Usually ships in 3-6 days

0
