Toro 74906 (5000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Lookup with Diagrams

1

ENGINE-KOHLER, PS-ECV740-3012

Note: Not serviced separately

$

Not available 

1

ENGINE-KOHLER, PS-ECV740-3012

Note: Obtain parts from www.kohlerplus.com

$

Not available 

2

Toro 109-9905

SHEAVE

(Superseded to 142-9445) 

$54.99

$

In Stock, Qty 8

3

Toro 116-1620

CLUTCH KIT

$380.99

$

In Stock, Qty 20+

4

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 14

5

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

6

Toro 109-9762

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 8

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

8

Toro 116-4297

MUFFLER BRACKET KIT

$79.99

$

Usually ships in 3-6 days

9

Toro 116-2038

MUFFLER

(Superseded to 142-6858) 

$466.99

$

In Stock, Qty 5

10

Toro 32144-102

SCREW-HWH

$3.99

$

Usually ships in 3-6 days

11

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

12

Toro 116-5316

OIL DRAIN HOSE ASM

$58.99

$

In Stock, Qty 15

12:2

Toro 353-508

PLUG-HH

$8.99

$

In Stock, only 4 left!

12:2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

13

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

14

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 19

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

16

Toro 116-2612-01

CLUTCH-ANCHOR

$59.99

$

In Stock, only 1 left!

17

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 19

18

Toro 117-3893

FUEL LINE ASM

$52.99

$

Usually ships in 3-6 days

18:1

Toro 109-0273

HOSE-FUEL

$23.99

$

Usually ships in 3-6 days

18:2

Toro 117-3892

SLEEVE-THERMAL

$35.99

$

Usually ships in 3-6 days

18:3

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

20

Toro 104-2490

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

21

Toro 116-4295

SCREW-HH

$5.49

$

In Stock, only 3 left!

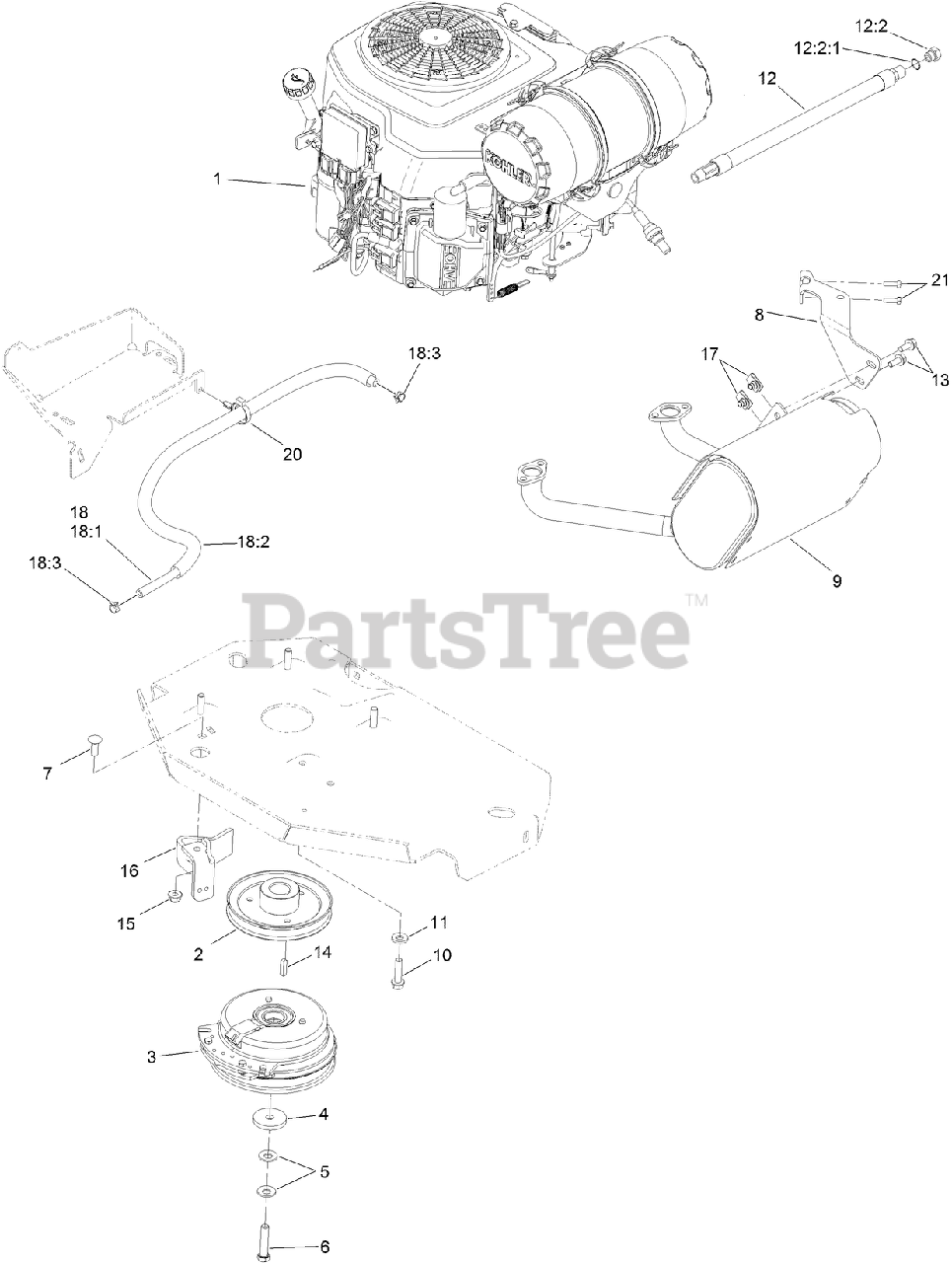

74906 (5000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

Toro 109-9905

Toro 116-1620

Toro 109-6919

Toro 1-603610

Toro 109-9762

Toro 3231-22

Toro 116-4297

Toro 116-2038

Toro 32144-102

Toro 98-5975

Toro 116-5316

Toro 353-508

Toro 237-42

Toro 3234-5

Toro 1-807259

Toro 104-8301

Toro 116-2612-01

Toro 94-2413

Toro 117-3893

Toro 109-0273

Toro 117-3892

Toro 2412-98

Toro 104-2490

Toro 116-4295
