74903 (5000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) REAR WHEEL AND PARK BRAKE ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

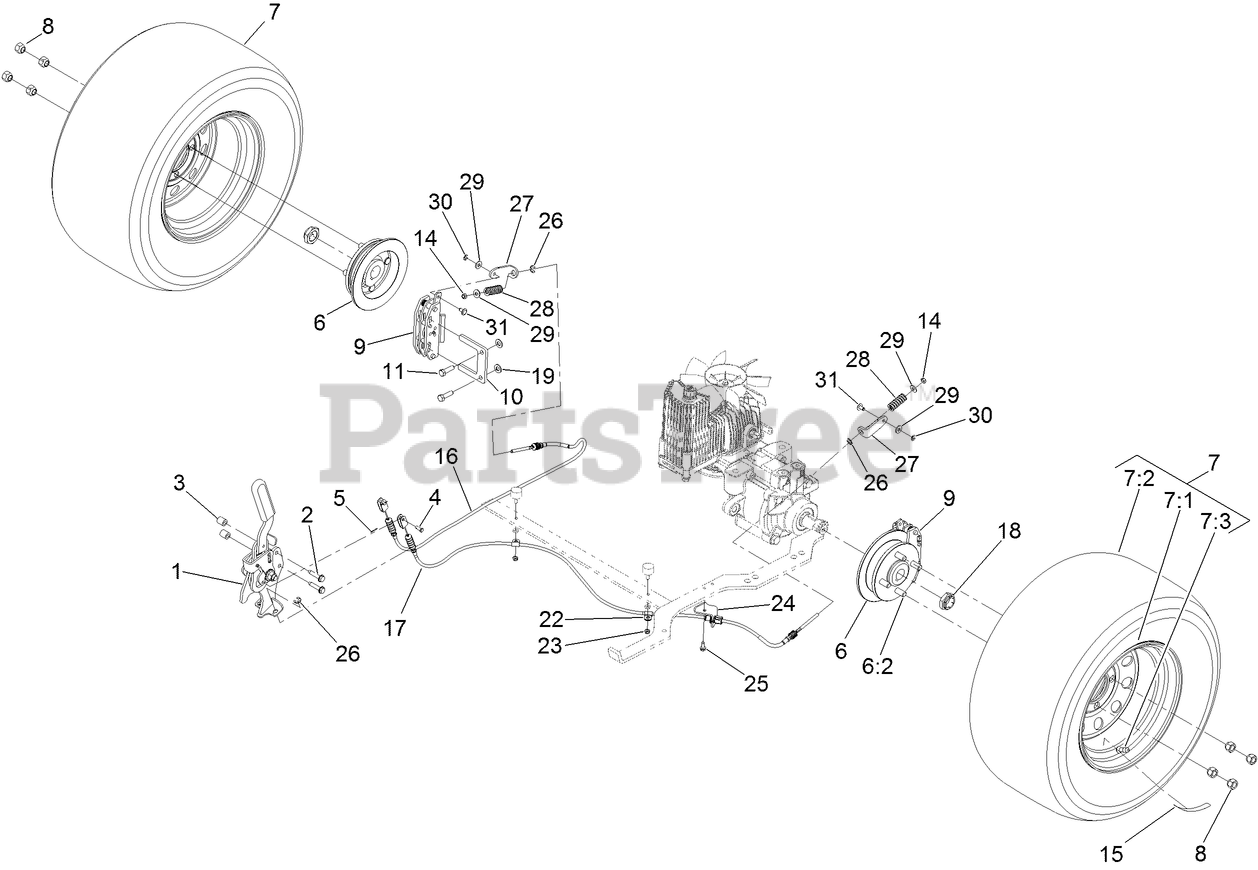

REAR WHEEL AND PARK BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 116-7551

BRAKE HANDLE ASM

$324.99

$

Usually ships in 3-6 days

0

2

Toro 32144-57

SCREW

$2.99

$

In Stock, Qty 20+

0

3

Toro 82-6840

SPACER

$7.99

$

In Stock, only 4 left!

0

4

Toro 60-1730

PIN-CLEVIS

$5.99

$

In Stock, Qty 11

0

5

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 15

0

6

Toro 116-1746

WHEEL HUB ASM
(Superseded to 142-2701)

$121.99

$

In Stock, Qty 6

0

6:2

Toro 116-1696

STUD-WHEEL

$3.99

$

In Stock, Qty 20+

0

7

Toro 115-3589

WHEEL AND TIRE ASM

$443.99

$

Usually ships in 3-6 days

0

7:1

Toro 109-2875

RIM ASM

$275.99

$

Usually ships in 3-6 days

0

7:2

Toro 1-653160

TIRE
(Superseded to 116-5363)

$223.99

$

Usually ships in 3-6 days

0

7:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$7.49

$

In Stock, Qty 7

0

8

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 1 left!

0

9

Toro 109-2889

CALIPER-BRAKE

$196.99

$

In Stock, Qty 20+

0

10

Toro 109-0958

PLATE-MOUNT, BRAKE

$17.99

$

In Stock, Qty 12

0

11

Toro 92-5727

SCREW-LOCK, PATCH

$3.99

$

In Stock, Qty 19

0

14

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 18

0

15

Toro 116-2643

DECAL-WHEEL NUT TORQUE
(Superseded to 126-2055)

$6.99

$

In Stock, Qty 11

0

16

Toro 116-6364

CABLE-PARK BRAKE, RH
(Superseded to 116-9469)

$104.99

$

In Stock, only 3 left!

0

17

Toro 116-6365

CABLE-PARK BRAKE, LH
(Superseded to 116-8963)

$90.99

$

In Stock, Qty 5

0

18

Toro 116-1399

LOCKNUT

$15.99

$

In Stock, Qty 8

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 88-7970

CLIP

$5.49

$

In Stock, Qty 6

0

23

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 116-6397

BRACKET-CABLE

$8.49

$

In Stock, only 3 left!

0

25

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, only 2 left!

0

26

Toro 32120-18

E-RING

$1.49

$

In Stock, Qty 20+

0

27

Toro 116-6182

BRACKET-BRAKE, L

$20.99

$

In Stock, Qty 9

0

28

Toro 116-6347

SPRING-DIE

$19.99

$

In Stock, Qty 7

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

31

Toro 116-6348

PIN-BRAKE

$2.99

$

In Stock, Qty 20+

0
