74902 TE (6000) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 403138033 - 404319999) Frame, Caster and Z Stand Assembly Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

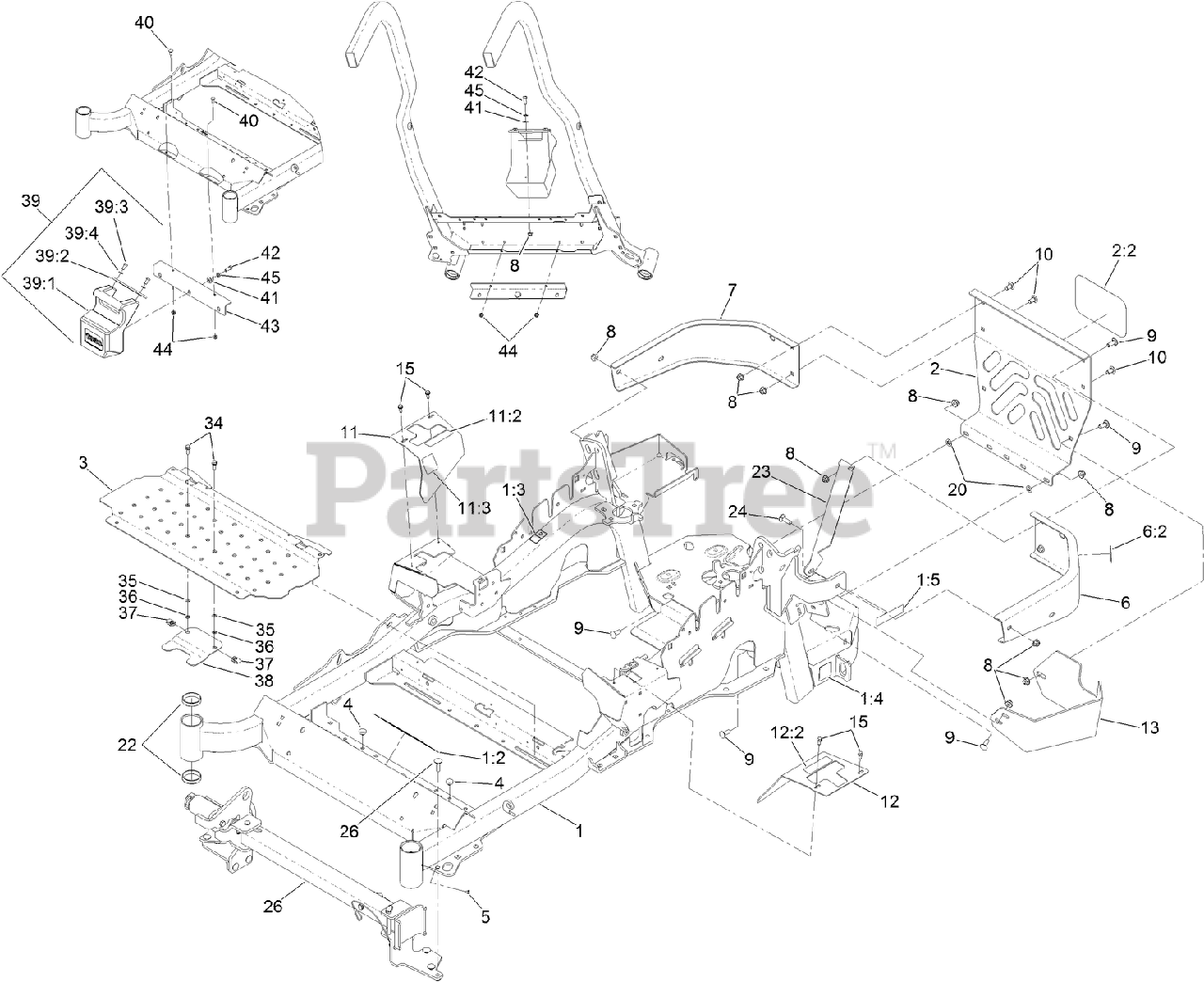

Frame, Caster and Z Stand Assembly Parts Diagram

  • Title

1

Toro 116-5900

MAINFRAME ASM
(Superseded to 142-7272)

$3079.99

$

Usually ships in 3-6 days

0

1:2

Toro 132-0871

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

1:3

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

1:4

Toro 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

Usually ships in 3-6 days

0

1:5

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

2

Toro 115-7410

REAR GUARD ASM

$195.99

$

In Stock, only 1 left!

0

2:2

Toro 67-7320

DECAL

$35.99

$

In Stock, only 2 left!

0

3

Toro 116-8898-01

FLOORPAN

$106.99

$

Usually ships in 3-6 days

0

4

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

5

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

6

Toro 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

6:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

7

Toro 116-0057-03

BUMPER-RH

$213.99

$

In Stock, only 1 left!

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

11

Toro 116-5899

RH MOTION CONTROL COVER ASM

$47.99

$

Usually ships in 3-6 days

0

11:2

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

In Stock, only 2 left!

0

11:3

Toro 116-5988

DECAL-PARK BRAKE, CE

$13.99

$

In Stock, only 1 left!

0

12

Toro 116-0580

LH MOTION CONTROL COVER ASM

$27.99

$

Usually ships in 3-6 days

0

12:2

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

In Stock, only 2 left!

0

13

Toro 117-0908-03

GUARD-MUFFLER

$163.99

$

Usually ships in 3-6 days

0

15

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

20

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 9

0

22

Toro 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 16

0

23

Toro 127-0324-03

STRAP

$24.99

$

Usually ships in 3-6 days

0

24

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

26

Z STAND ASM

Note: Not serviced separately

$

$

Not available

34

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

35

Toro 3256-60

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

36

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

37

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

38

Toro 119-0395-03

ADAPTER-CAPTIVE

$21.99

$

Usually ships in 3-6 days

0

39

Toro 120-7885

WEIGHT ASM

$819.99

$

Usually ships in 3-6 days

0

39:1

Toro 120-7881

WEIGHT-43 LB

$793.99

$

Usually ships in 3-6 days

0

39:2

Toro 115-3616-01

TAB-SUPPORT, WEIGHT

$30.99

$

Usually ships in 3-6 days

0

39:3

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

39:4

Toro 325-35

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

40

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

41

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

42

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

43

Toro 115-3615-01

BRACKET-MOUNT, WEIGHT

$46.99

$

Usually ships in 3-6 days

0

44

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

45

Toro 325-35

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0
