74902 TE (6000) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) Z STAND ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

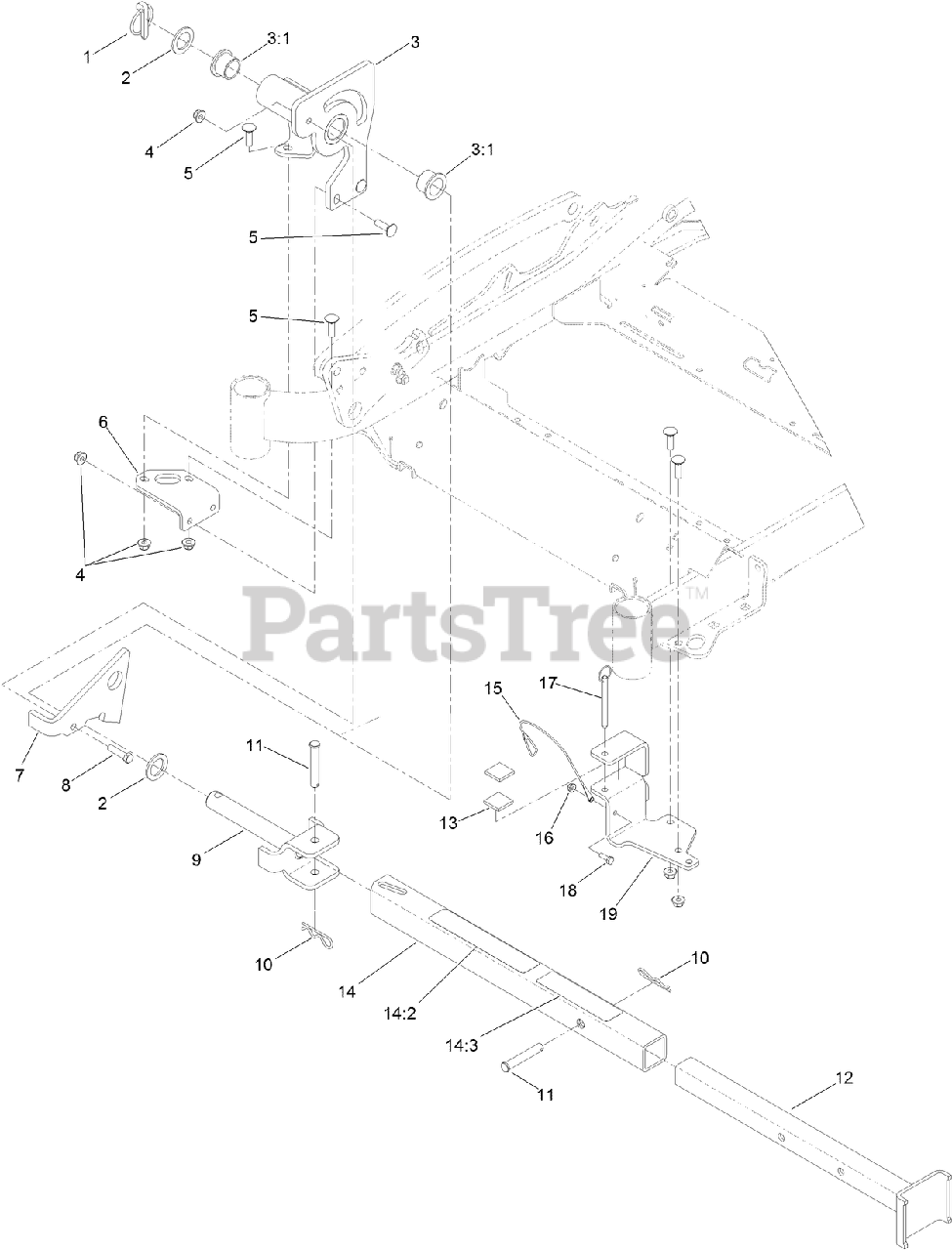

Z STAND ASSEMBLY Parts Diagram

  • Title

1

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

2

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

3

Toro 115-3635

Z STAND PIVOT ASM
(Superseded to 136-1669)

$288.99

$

Usually ships in 3-6 days

0

3:1

Toro 94-1291

BUSHING

$11.99

$

In Stock, Qty 10

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

6

Toro 115-3619-01

BRACKET-MOUNT, PIVOT

$37.99

$

Usually ships in 3-6 days

0

7

Toro 100-9686-01

BRACKET-LATCH
(Superseded to 136-1657-01)

$59.99

$

Usually ships in 3-6 days

0

8

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 100-9692-01

PIN-PIVOT

$209.99

$

Usually ships in 3-6 days

0

10

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

11

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

12

Toro 115-3631-01

TUBE-INNER

$182.99

$

Usually ships in 3-6 days

0

13

Toro 115-3613

CUSHION-RUBBER

$5.49

$

Usually ships in 3-6 days

0

14

Toro 115-3634

OUTER TUBE ASM

$223.99

$

Usually ships in 3-6 days

0

14:2

Toro 106-7464

DECAL-Z STAND

$9.99

$

In Stock, only 2 left!

0

14:3

Toro 107-3969

DECAL-WARNING

$72.99

$

Usually ships in 3-6 days

0

15

Toro 100-9385

LANYARD-NYLON

$6.49

$

Usually ships in 3-6 days

0

16

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 105-1647

PIN-HITCH, COTTERLESS

$20.99

$

Usually ships in 3-6 days

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 115-3625-01

CRADLE-Z STAND

$110.99

$

Usually ships in 3-6 days

0
