74902 TE (6000) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) CASTER WHEEL AND FORK ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

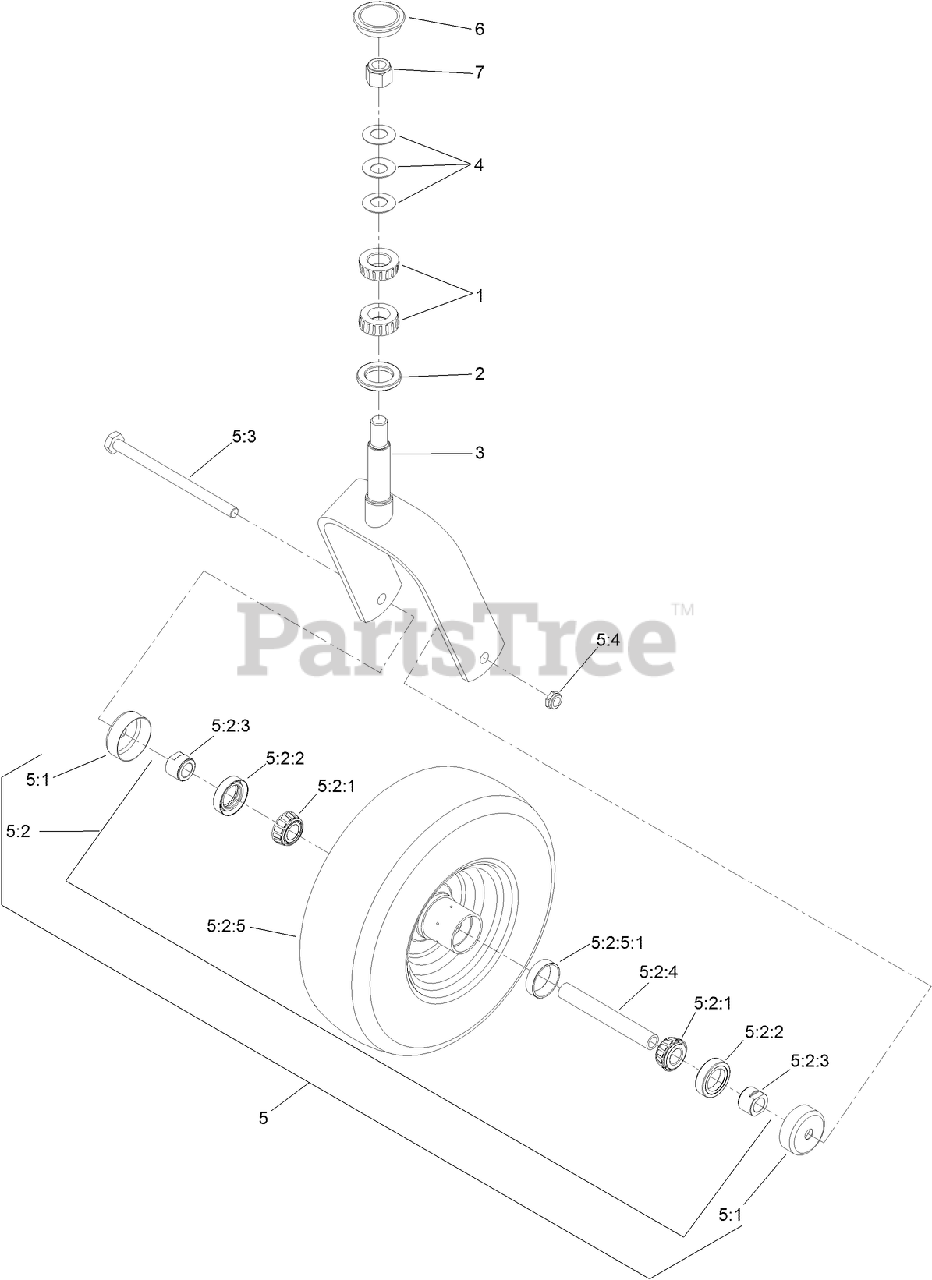

CASTER WHEEL AND FORK ASSEMBLY Parts Diagram

  • Title

1

Toro 1-543509

BEARING-ROLLER, TAPERED

$13.99

$

In Stock, Qty 20+

0

2

Toro 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

3

Toro 116-6702-01

FORK-CASTER

$115.99

$

In Stock, only 2 left!

0

4

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

5

Toro 109-9126

WHEEL & TIRE ASM

$320.99

$

In Stock, only 4 left!

0

5:1

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

5:2

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

5:2:1

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 20+

0

5:2:2

Toro 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

5:2:3

Toro 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

5:2:4

Toro 103-3155

AXLE-CASTER
(Superseded to 126-5360)

$15.99

$

In Stock, only 2 left!

0

5:2:5

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

5:2:5:1

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

5:3

Toro 325-42

SCREW-HH

$14.99

$

In Stock, Qty 14

0

5:4

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

7

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0
