74902 TE (6000) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311999999) (2011) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

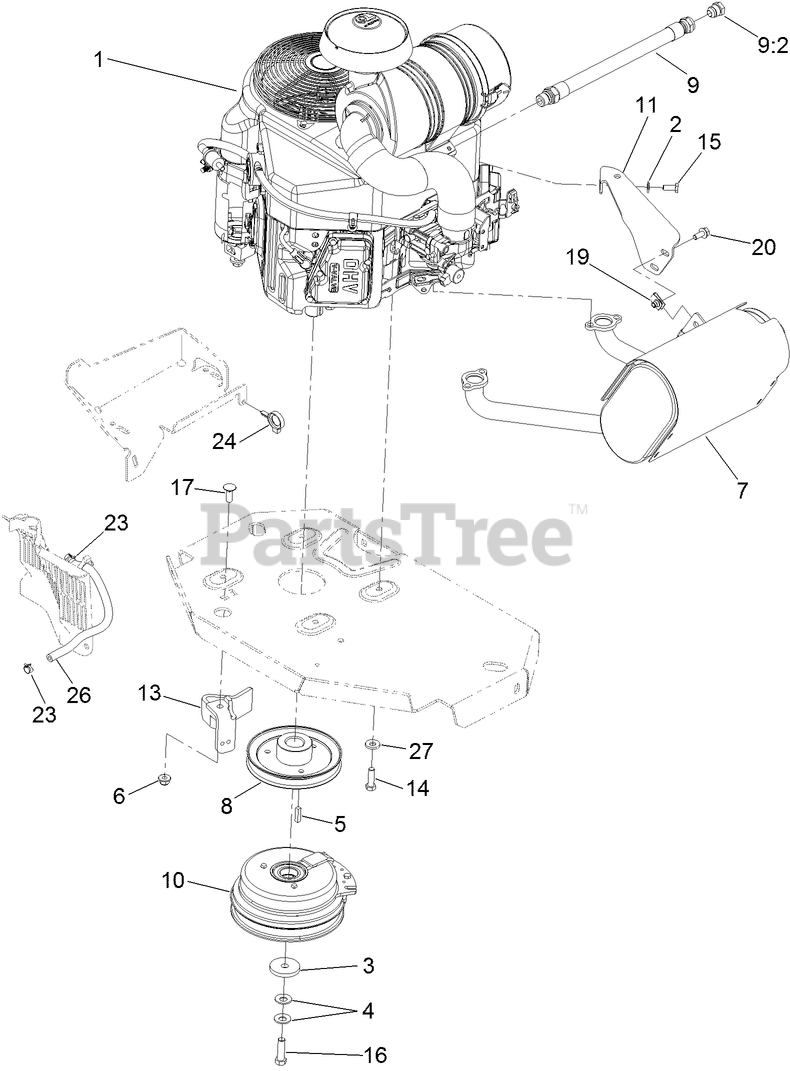

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FX651V-AS00

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1

ENGINE-KAWASAKI, FX651V-AS00

Note: Not serviced separately

$

$

Not available

2

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

3

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 9

0

4

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

5

Toro 1-807259

KEY

$2.99

$

In Stock, only 1 left!

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 116-1715

MUFFLER

$251.99

$

Usually ships in 3-6 days

0

8

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, only 1 left!

0

9

Toro 109-4490

OIL DRAIN HOSE ASM
(Superseded to 116-4924)

$37.99

$

In Stock, Qty 5

0

9:2

Toro 109-1012

PLUG

$8.49

$

Usually ships in 3-6 days

0

10

Toro 116-1620

CLUTCH KIT

$359.99

$

In Stock, only 4 left!

0

11

Toro 116-1435

BRACKET-MUFFLER

$33.99

$

Usually ships in 3-6 days

0

13

Toro 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

14

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

16

Toro 109-9761

SCREW-HH, W/LOCTITE

$5.49

$

In Stock, Qty 7

0

17

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

19

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

20

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 14

0

23

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

24

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

26

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

27

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0
