74901 (5000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

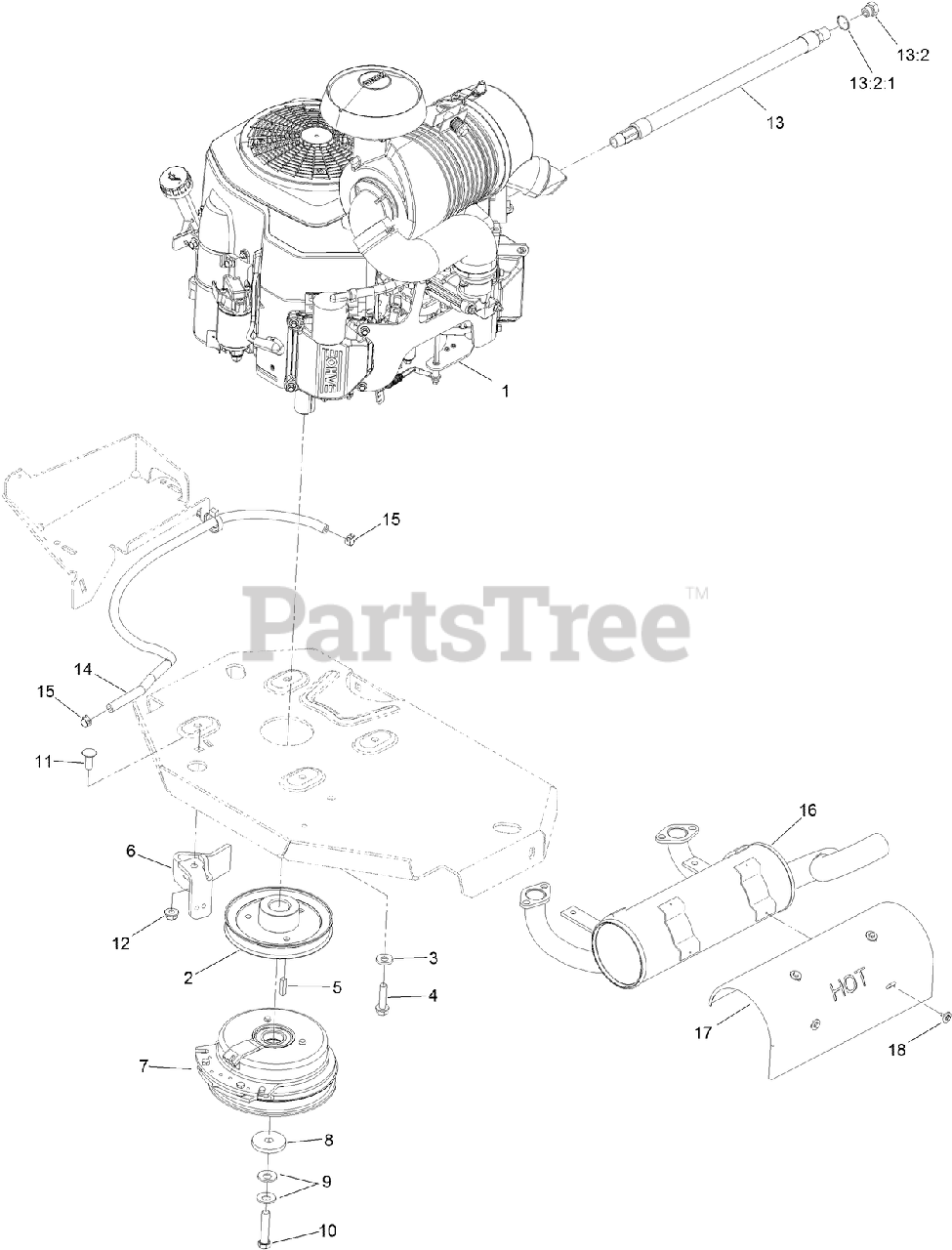

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER, PS-CV682-3014

Note: Not serviced separately

$

$

Not available

2

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, only 1 left!

0

3

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

5

Toro 1-807259

KEY

$2.99

$

In Stock, only 1 left!

0

6

Toro 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

7

Toro 116-1620

CLUTCH KIT

$359.99

$

In Stock, only 4 left!

0

8

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 9

0

9

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

10

Toro 109-9762

SCREW-HH W/LOCTITE

$5.49

$

In Stock, Qty 9

0

11

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 116-5316

OIL DRAIN HOSE ASM

$54.99

$

In Stock, Qty 14

0

13:2

Toro 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

13:2:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

14

Toro 109-0286

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

15

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

16

Toro 117-6151

MUFFLER

$367.99

$

In Stock, only 1 left!

0

17

Toro 117-6152

GUARD-MUFFLER

$155.99

$

In Stock, only 1 left!

0

18

Toro 116-1103

SCREW-HH, THREAD FORMING

$2.99

$

In Stock, Qty 5

0
