74901 (5000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) OIL PAN AND LUBRICATION ASSEMBLY KOHLER CV680-3020 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

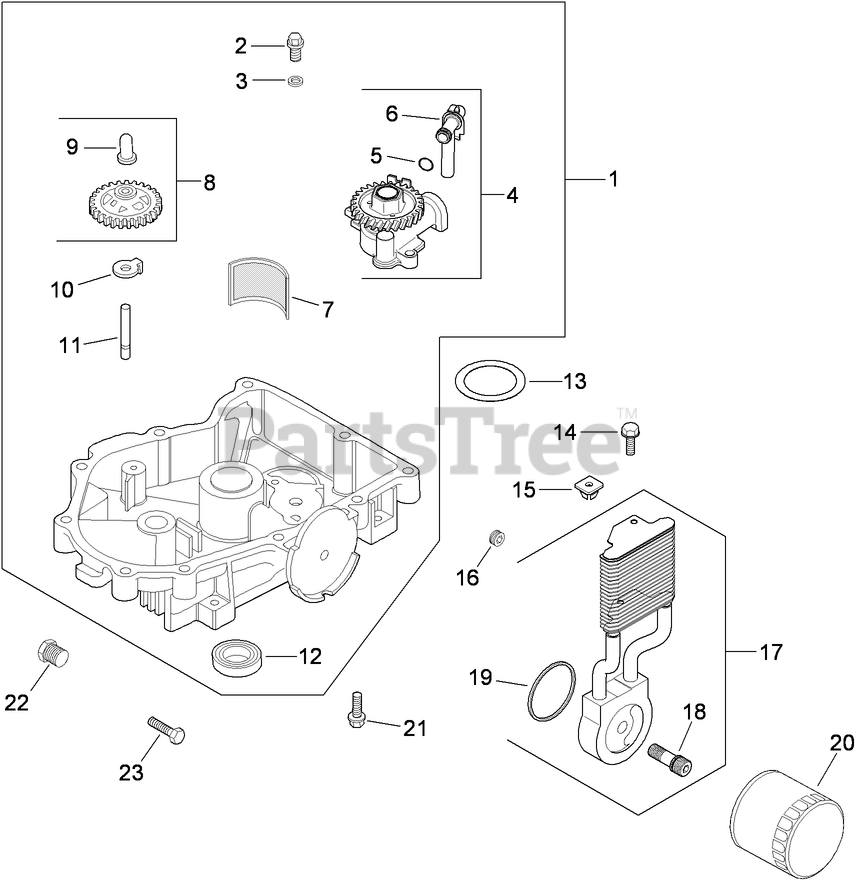

OIL PAN AND LUBRICATION ASSEMBLY KOHLER CV680-3020 Parts Diagram

  • Title

1

Kohler 24 199 24-S

OIL PAN ASM (INCLUDES 2-12)
(Superseded to 24 199 35-S)

Note: Obtain parts from www.kohlerplus.com

$337.99

$

In Stock, only 1 left!

0

2

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

3

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 393 51-S

OIL PUMP ASM (INCLUDES 5, 6)
(Superseded to 24 393 53-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 24 153 01-S

O-RING (OIL PICK-UP)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

6

Kohler 24 381 11-S

Tube-pickup, oil

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 24 162 26-S

Screen-oil

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 1 left!

0

8

Kohler 24 043 12-S

GOVERNOR GEAR W/PIN KIT (INCLUDES 9)

Note: Obtain parts from www.kohlerplus.com

$68.99

$

In Stock, Qty 12

0

9

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 10

0

10

Kohler 24 448 02-S

TAB-LOCKING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

11

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

12

Kohler 25 032 06-S

SEAL-OIL

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

13

Kohler 24 153 08-S

O-Ring

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, only 1 left!

0

14

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

15

Kohler 25 100 37-S

NUT-PLASTIC (BLACK)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

16

Kohler 25 139 62-S

Plug-pipe, HH (3/8)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

17

Kohler 54 755 21-S

OIL COOLER KIT (METAL) (INCLUDES 18, 19)

Note: Obtain parts from www.kohlerplus.com

$257.99

$

Usually ships in 2-5 days

0

18

Kohler 24 136 05-S

NIPPLE-FILTER, OIL
(Superseded to 24 136 10-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

Usually ships in 2-5 days

0

19

Kohler 24 153 21-S

O-RING (OIL COOLER)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 15

0

20

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, Qty 20+

0

21

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

22

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

23

Kohler 25 086 17-S

SCREW

Note: Obtain parts from www.kohlerplus.com

$

$

Not available
