74901 (5000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

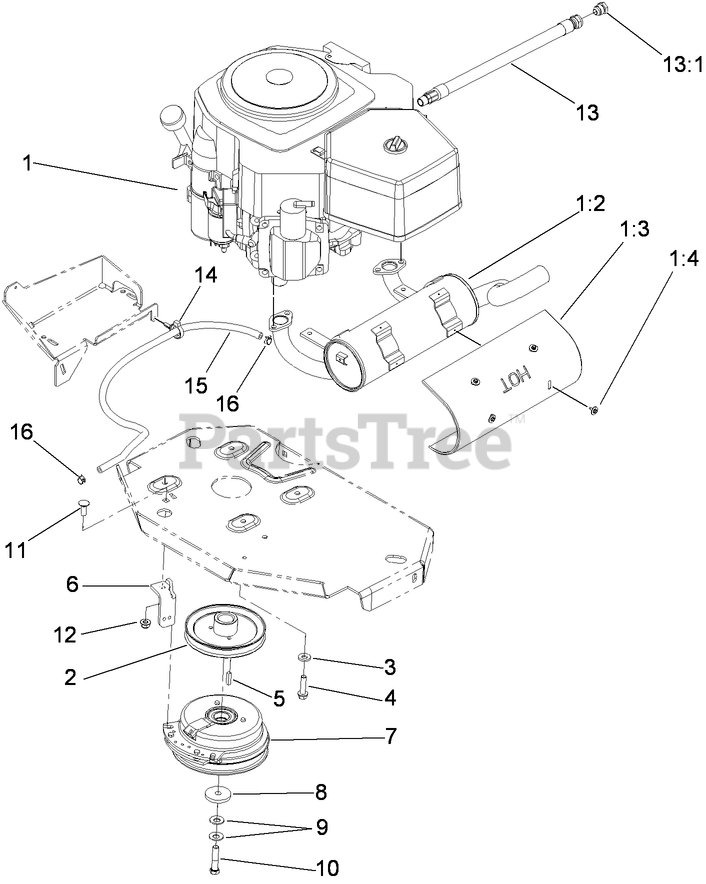

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER CV680-3020

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER CV680-3020

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1:2

Toro 117-6151

MUFFLER

$367.99

$

In Stock, only 1 left!

0

1:3

Toro 117-6152

GUARD-MUFFLER

$155.99

$

In Stock, only 1 left!

0

1:4

Toro 116-1103

SCREW-HH, THREAD FORMING

$2.99

$

In Stock, Qty 5

0

2

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, only 1 left!

0

3

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

5

Toro 1-807259

KEY

$2.99

$

In Stock, only 1 left!

0

6

Toro 109-8138

ANCHOR-CLUTCH

$

$

Currently unavailable

7

Toro 109-9282

CLUTCH
(Superseded to 116-1620)

$359.99

$

In Stock, only 4 left!

0

8

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 9

0

9

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

10

Toro 109-9762

SCREW-HH W/LOCTITE

$5.49

$

In Stock, Qty 9

0

11

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 116-0013

OIL DRAIN HOSE ASM
(Superseded to 116-5316)

$54.99

$

In Stock, Qty 14

0

13:1

Toro 109-1012

PLUG

$8.49

$

Usually ships in 3-6 days

0

14

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

15

Toro 109-0286

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

16

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0
