74901 (5000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CV680-3020 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

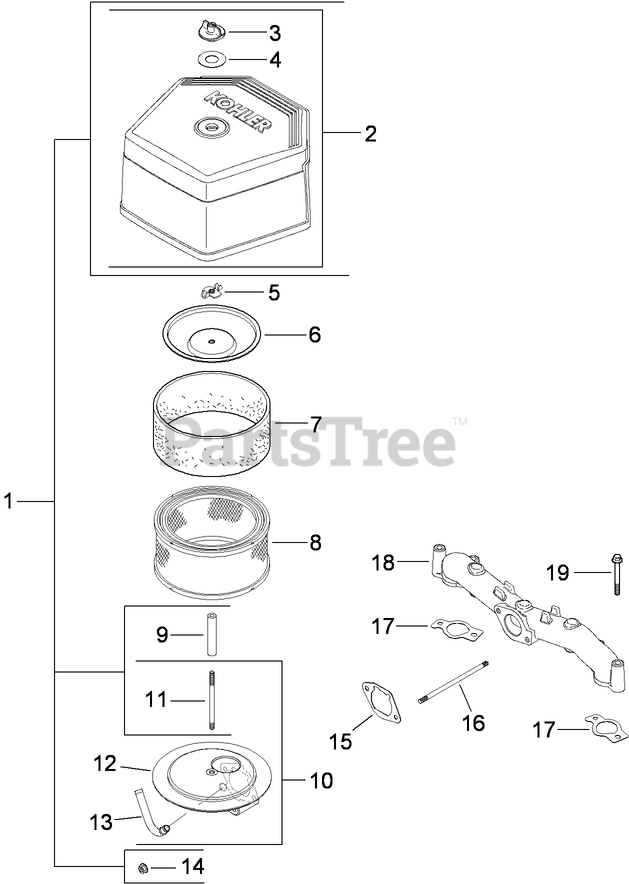

AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CV680-3020 Parts Diagram

  • Title

1

Kohler 24 743 17-S

AIR CLEANER ASM (W A W B) (INCLUDES 2-4, 9, 11, 14)

Note: Obtain parts from www.kohlerplus.com

$75.99

$

Usually ships in 2-5 days

0

2

Kohler 24 743 11-S

AIR CLEANER COVER ASM (INCLUDES 3, 4)

Note: Obtain parts from www.kohlerplus.com

$56.99

$

In Stock, only 1 left!

0

3

Kohler 25 341 04-S

KNOB-COVER

Note: Obtain parts from www.kohlerplus.com

$7.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 27-S

GASKET-COVER KNOB, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

5

Kohler 12 100 01-S

NUT-WING

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 4 left!

0

6

Kohler 52 082 04-S

COVER-AIR CLEANER, INNER

Note: Obtain parts from www.kohlerplus.com

$29.99

$

In Stock, only 1 left!

0

7

Kohler 45 083 01-S

ELEMENT-CLEANER, PRE

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, Qty 9

0

8

Kohler 45 083 02-S

ELEMENT-CLEANER, AIR

Note: Obtain parts from www.kohlerplus.com

$23.99

$

In Stock, only 1 left!

0

9

Kohler 24 032 04-S

SEAL

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 1 left!

0

10

Kohler 24 054 20-S

AIR CLEANER ASM (INCLUDES 11-13)
(Superseded to 24 054 33-S)

Note: Obtain parts from www.kohlerplus.com

$213.99

$

Usually ships in 2-5 days

0

11

Kohler 24 072 06-S

STUD (M6X1.0X93)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 6

0

12

Kohler 24 054 07-S

BASE-CLEANER, AIR
(Superseded to 24 054 33-S)

Note: Obtain parts from www.kohlerplus.com

$213.99

$

Usually ships in 2-5 days

0

13

Kohler 24 294 01-S

ELBOW

Note: Obtain parts from www.kohlerplus.com

$24.99

$

Usually ships in 2-5 days

0

14

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 11

0

15

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 9

0

16

Kohler M-629128-S

STUD (M6X1.0X128)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

Usually ships in 2-5 days

0

17

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 9

0

18

Kohler 24 164 06-S

Manifold-Intake

Note: Obtain parts from www.kohlerplus.com

$222.99

$

Usually ships in 2-5 days

0

19

Kohler 25 086 84-S

Screw-HF (M6x1.0x55)
(Superseded to 25 086 766-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0
