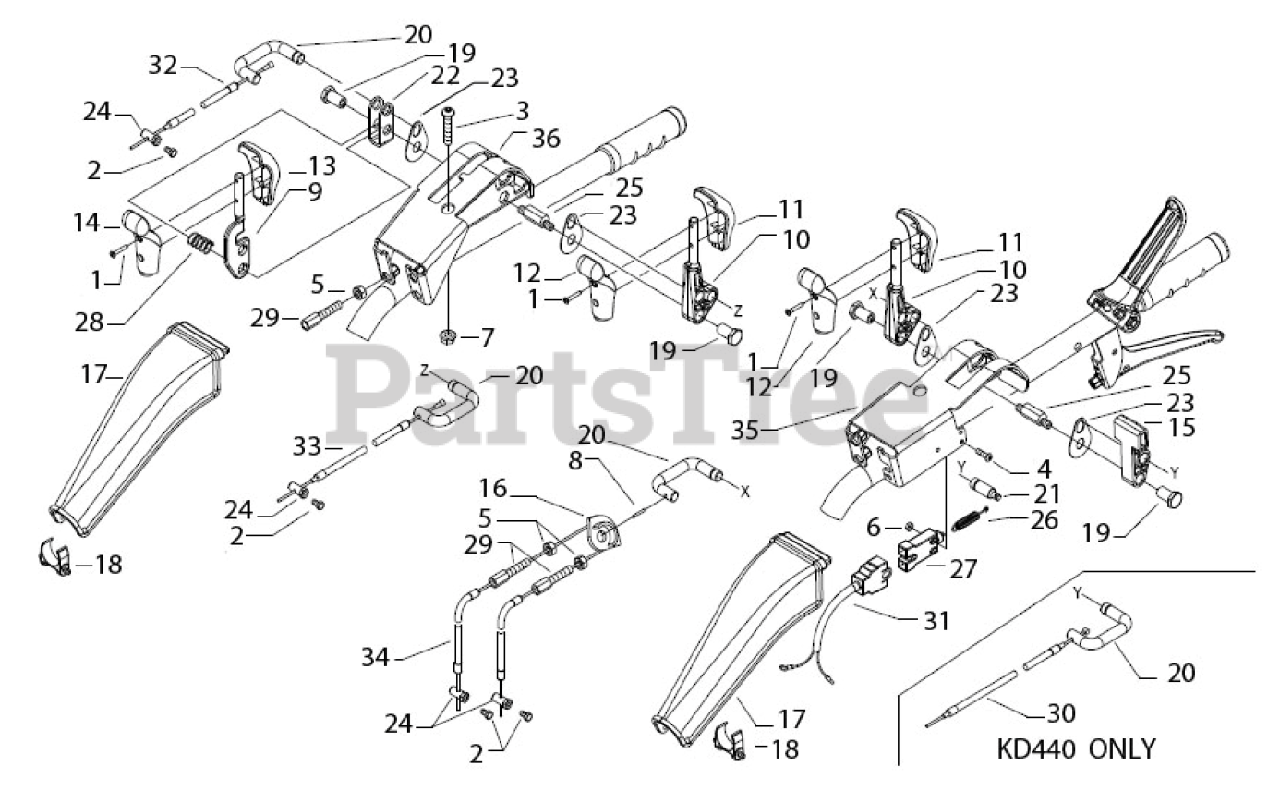

749 (749 PS) - BCS America Two-Wheeled Tractor, Power Safe Handlebar Controls (SN: 898000 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Handlebar Controls (SN: 898000 & Above) Parts Diagram

  • Title

1

BCS America 31100451

SCREW 3,5X25

Note:

$0.99

$

In Stock, Qty 8

0

2

BCS America 311.12090

SCREW TE M6X16

Note:

$0.99

$

In Stock, only 4 left!

0

3

BCS America 31121020

SCREW TBCEI M8X40

Note:

$1.99

$

In Stock, only 4 left!

0

4

BCS America 311.21024

SCREW TBCEI FL.M4X25

Note:

$

$

Currently unavailable

5

BCS America 312.11080

NUT M8

Note:

$0.99

$

In Stock, only 3 left!

0

6

BCS America 312.41042

SELFLOCK NUT M4

Note:

$

$

Currently unavailable

7

BCS America 312.41084

SELFLOCK NUT M8

Note:

$1.49

$

Usually ships in 5-8 days

0

8

BCS America 342.13020

ROLL PIN 4X20 SPIROL

Note:

$1.49

$

Usually ships in 5-8 days

0

9

BCS America 52156810

LEVER, FORWARD / REVERSE

Note:

$50.99

$

Usually ships in 5-8 days

0

10

BCS America 53156860

LEVER, DIFFERENTIAL

Note:

$31.99

$

In Stock, only 1 left!

0

11

BCS America 55157212

UPPER HANDLE, HALF BLACK

Note:

$6.49

$

In Stock, only 2 left!

0

12

BCS America 55157213

LOWER HANDLE, HALF BLACK

Note:

$6.49

$

In Stock, only 3 left!

0

13

BCS America 55157214

UPPER HANDLE, HALF RED

Note:

$6.49

$

Usually ships in 5-8 days

0

14

BCS America 55157215

LOWER HANDLE, HALF RED

Note:

$6.49

$

In Stock, only 1 left!

0

15

BCS America 552.56197

LEVER, ON/OFF

Note:

$

$

Currently unavailable

16

BCS America 55256757

PULLEY

Note:

$32.99

$

Usually ships in 5-8 days

0

17

BCS America 55256835

COVER

Note:

$32.99

$

In Stock, only 1 left!

0

18

BCS America 55256836

CROSS PIECE

Note:

$10.99

$

Usually ships in 5-8 days

0

19

BCS America 561.48287

STUD BOLT

Note:

$9.99

$

In Stock, only 2 left!

0

20

BCS America 56156832

U BOLT

Note:

$32.99

$

Usually ships in 5-8 days

0

21

BCS America 561.56834

INDEXING BOLT

Note:

$

$

Currently unavailable

22

BCS America 56156859

FORK

Note:

$16.99

$

Usually ships in 5-8 days

0

23

BCS America 56356833

SMALL PLATE

Note:

$5.49

$

In Stock, only 3 left!

0

24

BCS America 56356840

CLAMPING SCREW

Note:

$5.49

$

Usually ships in 5-8 days

0

25

BCS America 56356858

PIN

Note:

$32.99

$

Usually ships in 5-8 days

0

26

BCS America 580.47712

SPRING

Note:

$14.99

$

In Stock, only 1 left!

0

27

BCS America 580.48009

SWITCH

Note:

$32.99

$

In Stock, only 1 left!

0

28

58049830

SPRING

Note:

$

$

Not available

29

BCS America 58056595

ADJUSTING SCREW

Note:

$9.49

$

In Stock, only 2 left!

0

30

BCS America 58056814

CABLE, FUEL CUT OFF KD440 ONLY

Note:

$32.99

$

Usually ships in 5-8 days

0

31

BCS America 58056837

WIRING

Note:

$39.99

$

Usually ships in 5-8 days

0

32

BCS America 58056846

CABLE, REVERSE

Note:

$30.99

$

In Stock, only 2 left!

0

33

BCS America 58056847

CABLE, DIFFERENTIAL

Note:

$31.99

$

Usually ships in 5-8 days

0

34

BCS America 58056896

CABLE, PARKING BRAKE

Note:

$56.99

$

Usually ships in 5-8 days

0

35

BCS America 59256180

SUPPORT LH

Note:

$153.99

$

Usually ships in 5-8 days

0

36

BCS America 59256850

SUPPORT RH

Note:

$139.99

$

Usually ships in 5-8 days

0
