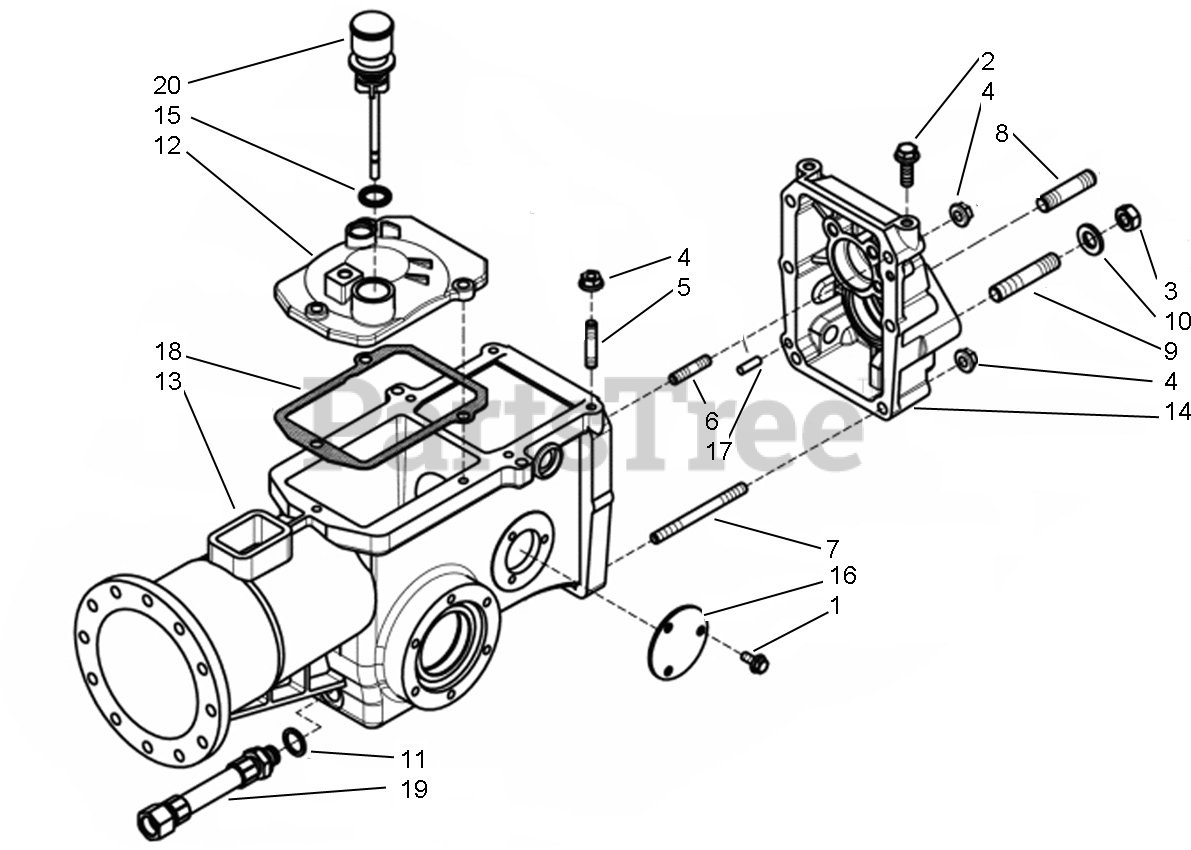

749 (749 PS) - BCS America Two-Wheeled Tractor, Power Safe Gearbox (SN: 898000 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Gearbox (SN: 898000 & Above) Parts Diagram

  • Title

1

BCS America 31112083

SCREW

Note:

$1.49

$

In Stock, only 1 left!

0

2

BCS America 311.12170

SCREW TE C/F M8X20

Note:

$1.99

$

Usually ships in 5-8 days

0

3

BCS America 312.21121

NUT M12X1,25

Note:

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 312.41084

SELF LOCK NUT M8 7

Note:

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 313.12082

STUD BOLT M8X38X14X20

Note:

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 313.12084

STUD BOLT M8X58X16X16

Note:

$2.49

$

Usually ships in 5-8 days

0

7

BCS America 313.12094

STUD BOLT M8X68X14X36

Note:

$2.49

$

Usually ships in 5-8 days

0

8

BCS America 313.12125

PTO STUD

Note:

$4.49

$

Usually ships in 5-8 days

0

9

BCS America 313.12125

PTO STUD

Note:

$4.49

$

Usually ships in 5-8 days

0

10

BCS America 314.21132

WASHER 13X24X2,8

Note:

$1.99

$

In Stock, only 1 left!

0

11

BCS America 31480184

COPPER WASHER 16,7X22/1,5

Note:

$1.99

$

Usually ships in 5-8 days

0

12

BCS America 531.43875

GEARBOX HOUSING COVER

Note:

$85.99

$

Usually ships in 5-8 days

0

13

BCS America 53156202

BOX CASING

Note:

$733.99

$

Usually ships in 5-8 days

0

14

BCS America 531.56332

REAR COVER

Note:

$163.99

$

In Stock, only 1 left!

0

15

BCS America 551.02678

RUBBER RING

Note:

$1.49

$

In Stock, Qty 5

0

16

BCS America 561.47520

COVER

Note:

$11.99

$

Usually ships in 5-8 days

0

17

BCS America 580.43053

CYLINDRICAL PLUG

Note:

$1.49

$

Usually ships in 5-8 days

0

18

BCS America 580.43117

COVER GASKET

Note:

$2.99

$

In Stock, only 2 left!

0

19

BCS America 59056244

HOSE

Note:

$83.99

$

Usually ships in 5-8 days

0

20

BCS America 59056672

DIP STICK

Note:

$

$

Not available
