74898 (XS 5450) - Toro 54" Titan Zero-Turn Mower (SN: 400000000 - 411999999) Brake Assembly Parts Diagram

54" Titan Zero-Turn Mower

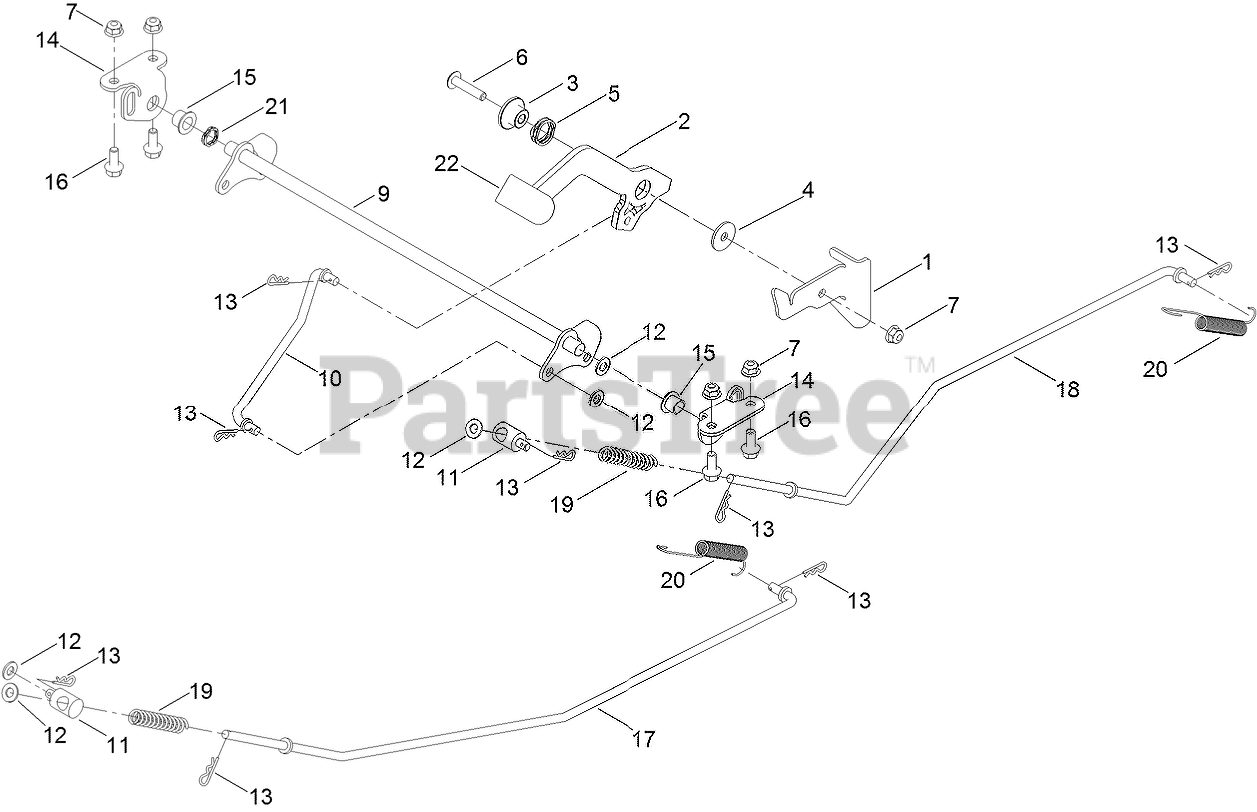

Brake Assembly Parts Diagram

  • Title

1

Toro 136-5554

DETENT-BRAKE

$17.99

$

In Stock, only 1 left!

0

2

Toro 140-0412

HANDLE-BRAKE, PARKING

$26.99

$

Usually ships in 3-6 days

0

3

Toro 139-3572

BUSHING-FLANGE

$2.99

$

In Stock, only 2 left!

0

4

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

5

Toro 120-5116

WASHER-WAVE

$11.99

$

In Stock, only 1 left!

0

6

Toro 126-7439

SCREW-TORX

$2.99

$

In Stock, only 1 left!

0

7

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 133-9338

BELLCRANK-BRAKE

$44.99

$

Usually ships in 3-6 days

0

10

Toro 133-9342

ROD-BRAKE, INTERMEDIATE

$29.99

$

Usually ships in 3-6 days

0

11

Toro 138-7212

FITTING-ROD

$9.49

$

Usually ships in 3-6 days

0

12

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

13

Toro 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 16

0

14

Toro 139-5878-03

PLATE-SUPPORT, BELLCRANK

$7.99

$

Usually ships in 3-6 days

0

15

Toro 125-5239

BUSHING-FLANGE

$7.99

$

In Stock, Qty 6

0

16

Toro 139-2598

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

17

Toro 133-9343

ROD-BRAKE, RH

$21.99

$

In Stock, only 1 left!

0

18

Toro 133-9344

ROD-BRAKE, LH

$21.99

$

Usually ships in 3-6 days

0

19

Toro 138-7252

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

20

Toro 110769

SPRING-EXTENSION

$14.99

$

In Stock, only 4 left!

0

21

Toro 137-5011

SPRING-WAVE

$5.49

$

Usually ships in 3-6 days

0

22

Toro 140-0413

GRIP-HANDLE

$2.49

$

Usually ships in 3-6 days

0
