74891 (MX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 316000001 - 316999999) (2016) SEAT ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

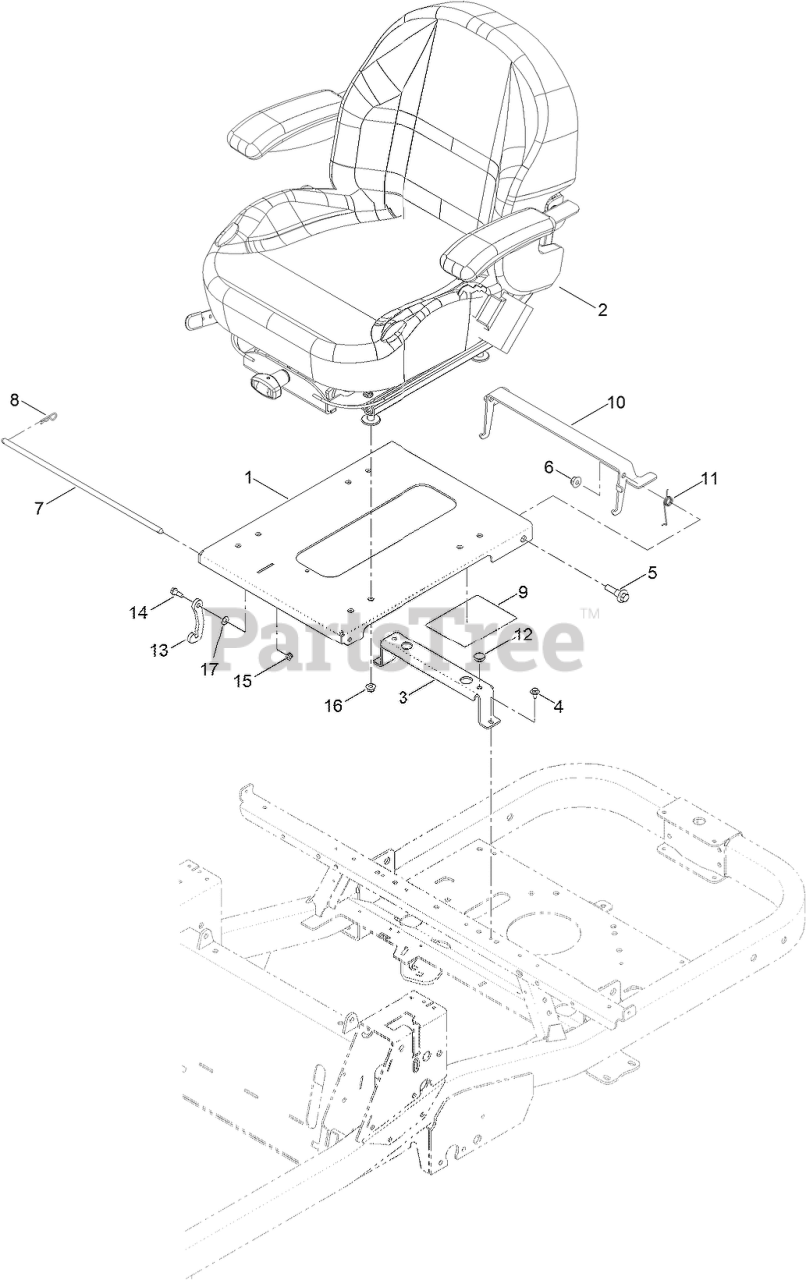

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 132-9360-03

SEAT PAN ASM

$114.99

$

Usually ships in 3-6 days

0

2

Toro 130-0801

SEAT ASM
(Superseded to 127-3305)

$1151.99

$

Usually ships in 3-6 days

0

3

Toro 127-3370-03

SEAT-SUPPORT, REAR

$38.99

$

Usually ships in 3-6 days

0

4

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

5

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 5

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 115-4966

ROD-STOP

$19.99

$

Usually ships in 3-6 days

0

8

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

9

Toro 130-6996

DECAL-MAINTENANCE

$

$

Currently unavailable

10

Toro 127-3341

LATCH-SEAT

$48.99

$

Usually ships in 3-6 days

0

11

Toro 127-3365

TORSION-SPRING

$5.49

$

Usually ships in 3-6 days

0

12

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

13

Toro 130-0669

STOP-SEAT

$9.99

$

Usually ships in 3-6 days

0

14

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, only 3 left!

0

15

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0
