74891 (MX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 315000001 - 315000490) (2015) FUEL DELIVERY ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

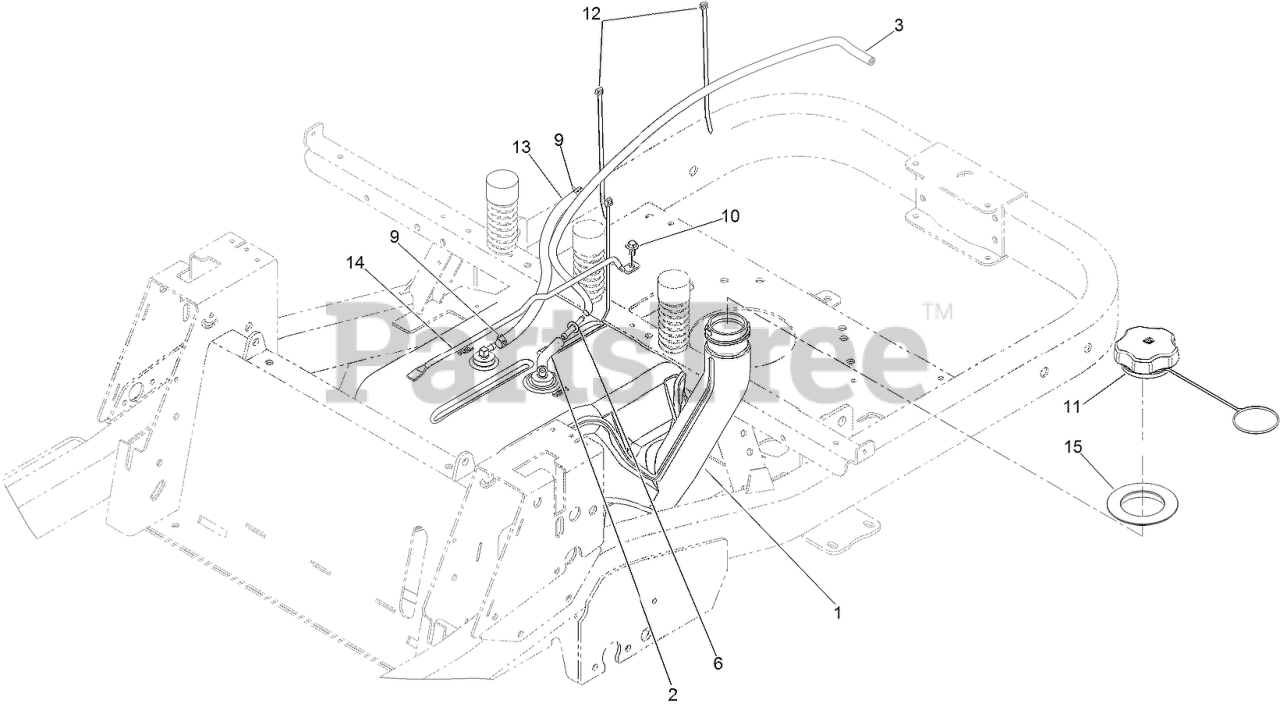

FUEL DELIVERY ASSEMBLY Parts Diagram

  • Title
1

Toro 117-7352

FUEL TANK ASM

$442.99

$

Usually ships in 3-6 days

0

2

Toro 114-3765

HOSE-FUEL

$4.99

$

In Stock, Qty 9

0

3

Toro 131-8740

HOSE-FUEL

$20.99

$

Usually ships in 3-6 days

0

6

Toro 121-0743

ADAPTER-ORIFICE

$3.49

$

Usually ships in 3-6 days

0

9

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

10

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

11

Toro 125-1847

CAP-FUEL

$25.99

$

In Stock, only 1 left!

0

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

13

Toro 109-0299

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

14

Toro 115-2620

ROD-TANK, GAS

$19.99

$

Usually ships in 3-6 days

0

15

Toro 117-1298

SEAL-TANK

$8.99

$

Usually ships in 3-6 days

0
