74891 (MX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 315000001 - 315000490) (2015) FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

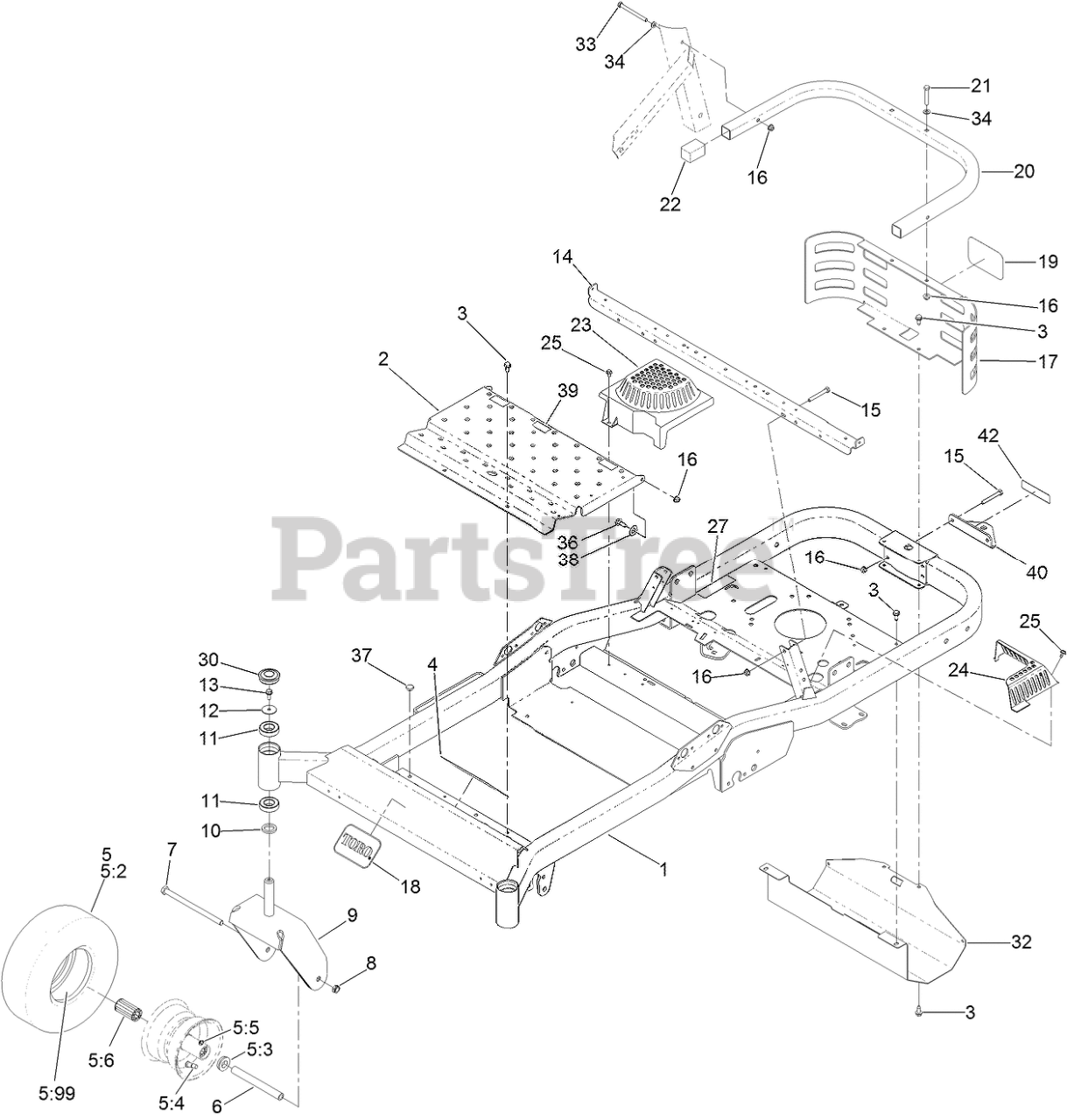

FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 131-4039-01

FRAME ASM

$2050.99

$

Usually ships in 3-6 days

0

2

Toro 127-3423-01

PAN-FLOOR

$174.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 132-0871

DECAL-DANGER

$9.49

$

In Stock, only 2 left!

0

5

Toro 125-5580

TIRE AND WHEEL ASM

$218.99

$

Usually ships in 3-6 days

0

5:2

Toro 125-5581

TIRE

$102.99

$

Usually ships in 3-6 days

0

5:3

Toro 130-0705

BUSHING-FLANGE

$8.99

$

In Stock, only 3 left!

0

5:4

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

5:5

Toro 120-7125

FITTING-ZERK

$7.99

$

In Stock, only 2 left!

0

5:6

Toro 83-4740

BEARING

$14.99

$

In Stock, Qty 5

0

5:99

Toro 232-46

TUBE-INNER

$37.99

$

Usually ships in 3-6 days

0

6

Toro 127-0068

SPANNER-WHEEL, CASTER

$14.99

$

In Stock, Qty 5

0

7

Toro 325-42

SCREW-HH

$14.99

$

In Stock, Qty 14

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 127-0058-01

CASTER FORK ASM

$136.99

$

In Stock, only 1 left!

0

10

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

11

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

14

Toro 121-2953-03

SUPPORT-SEAT

$51.99

$

Usually ships in 3-6 days

0

15

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

17

Toro 120-2248-03

GUARD-REAR

$129.99

$

Usually ships in 3-6 days

0

18

Toro 67-1300

DECAL

$31.99

$

In Stock, only 2 left!

0

19

Toro 105-8278

DECAL

$10.99

$

In Stock, only 2 left!

0

20

Toro 121-0704-01

TUBE-GUARD

$106.99

$

Usually ships in 3-6 days

0

21

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

22

Toro 121-2980

CAP

$2.99

$

Usually ships in 3-6 days

0

23

Toro 117-1241

COVER-FAN, RH

$19.99

$

Usually ships in 3-6 days

0

24

Toro 117-1242

COVER-FAN, LH

$14.99

$

Usually ships in 3-6 days

0

25

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

27

Toro 130-9833

DECAL-EMISSIONS

$

$

Currently unavailable

30

Toro 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 16

0

32

Toro 131-4137-03

SHIELD-HEAT

$82.99

$

Usually ships in 3-6 days

0

33

Toro 322-23

SCREW-HH
(Superseded to 321-9)

$4.99

$

Usually ships in 3-6 days

0

34

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

36

Toro 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

37

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

38

Toro 112-9771

WASHER-TEFLON

$2.99

$

In Stock, Qty 18

0

39

Toro 130-0733

PAD-RUBBER

$1.99

$

Usually ships in 3-6 days

0

40

Toro 117-1232-03

BRACKET-HITCH

$29.99

$

In Stock, only 1 left!

0

42

Toro 131-4036

DECAL

$2.99

$

In Stock, only 3 left!

0
